2025 Owner’s Manual

RANGER CREW XP 1000

Owner’s manual part Number- OM25TRGCXP1000

Read this manual carefully. It contains important safety information. This is an adult vehicle only.

Operation is prohibited for those under 18 years of age.

This Owner Manual refers to EGIMOTORS TRACTORS

(To be filled in by your Dealer)

This Owner’s Manual must always remain inside you Tractor

(Legal requirement)

A digital/printable copy is available on www.egimotors.com

Year ________________________________________________________

Model Type___________________________________________________

Code number (spare parts use only) _______________________________

VIN Number__________________________________________________

Engine Serial Number __________________________________________

Key Number __________________________________________________

Registration Plate Number _______________________________________

WELCOME

Thank you for purchasing an EGIMOTORS Tractor, and welcome to our world-wide family of enthusiasts.

We have done This manual to inform you on how to use and maintain the best condition of operation for your Tractor.

If after reading this manual, you still have some questions please do not hesitate to contact your dealer that will be available to help you.

Be sure to visit us online at www.Egimotors.it for the latest news and for product and Safety information.

We believe we sets a standard of excellence for all utility and Tractor manufactured in the world today.

Many years of experience have gone into the engineering, design, and development of your Tractor, making it the finest machine we’ve ever produced.

For safe and enjoyable operation of your vehicle, be sure to follow the instructions and recommendations in this owner’s manual.

Your manual contains instructions for the maintenance of the Tractor and information about repairs.

Service Manual are available from Dealers, only them can perform major repair and install accessory.

Your dealer knows your Tractor better than anyone and is interested in your total satisfaction, he can perform your service needs during and after the warranty period.

For the most up-to-date owner’s manual visit:

http://egimotors.it/libretto-uso-manutenzione/

Read and understand this Owner’s Manual is extremely important for your safety and for all the operators, so please take your time to read all the pages and be sure that is someone else will use the Tractor before will take this manual and read and understand all, this will give you the best knowledge and skills on how to ride in security.

Copyright 2025 EGIMOTORS.

All the information contained within this publication is based on the latest product information at the time of publication.

Due to constant improvement in the design and quality of product components, some minor discrepancies may result between the actual unit and the information presented in this publication.

Descriptions and or procedure in this publication are intended for reference use only. No Liability can be accepted for omission or inaccuracies. Any reprinting or reuse of the depictions and or procedures contained within this publication are intended for reference use only. The original instruction is in English.

Other languages are provided as translation of the original Instruction see the EGIMOTORS website for more details and procedure.

INTRODUCTION. 7

CERTIFICATE OF PRE-DELIVERY. 11

SAFETY. 15

FEATURES AND CONTROLS. 29

RIDE COMMAND DISPLAY (IF EQUIPPED) 60

OPERATION.. 70

EMISSION CONTROL SYSTEMS. 83

MAINTENANCE. 84

SPECIFICATIONS. 129

PRODUCTS. 132

TROUBLESHOOTING.. 134

WARRANTY. 138

MAINTENANCE LOG.. 143

INTRODUCTION

BEFORE YOU RIDE

This EGIMOTORS vehicle is an off-road Tractor. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area.

Failure to heed the warnings and safety precautions contained in this manual can result in severe injury or death. Your EGIMOTORS vehicle is not a toy and can be hazardous to operate. This vehicle handles differently than cars, trucks or other off-road vehicles. A collision or rollover can occur quickly, even during routine maneuvers like turning, or driving on hills or over obstacles, if you fail to take proper precautions.

• Read this owner’s manual that came with your vehicle. Understand all safety warnings, precautions and operating procedures before operating the vehicle. Keep this manual with the vehicle.

• Never operate this vehicle without proper instruction. Take an authorized training course. See the Safety Training section for more information.

• This vehicle is an ADULT VEHICLE ONLY. You MUST be at least age 18 and have a valid driver’s license to operate this vehicle.

• Always use the cab nets (or doors) while riding in this vehicle. Always keep hands, feet and all other body parts inside the vehicle at all times.

• Always wear a helmet, eye protection, gloves, long-sleeve shirt, long pants and over-the-ankle boots.

• Never operate this vehicle under the influence of drugs or alcohol, as these conditions impair judgement and reduce the operator’s ability to react.

• Complete the New Operator Driving Procedures outlined in this manual. Never allow a guest to operate this vehicle until the guest has completed the New Operator Driving Procedures.

• Never permit a guest to operate this vehicle unless the guest has reviewed the owner’s manual and all safety labels and has completed a safety training

SAFETY SYMBOLS AND SIGNAL WORDS

The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.

DANGER indicates a hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING indicates a hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, COULD result in minor to moderate injury.

NOTICE provides key information by clarifying instructions.

IMPORTANT provides key reminders during disassembly, assembly, and inspection of components.

The Prohibition Safety Sign indicates an action NOT to take in order to avoid a hazard.

The Mandatory Action Sign indicates an action that NEEDS to be taken to avoid a hazard.

RADIO COMPLIANCE STATEMENTS

EUROPEAN UNION (EU) RADIO COMPLIANCE

This Tractor contains the following radio equipment or components that contain radio equipment:

Component	Ride Command RC-7 Display
Component ID	RC-7
Manufacturer	EGIMOTORS
*Transmitting Frequency	2402 - 2480 MHz
Max RF Transmitting PWR	0.1 W
*Other transmitting radio frequencies may exist outside of EU markets.

The above radio equipment is in compliance with Directive 2014/53/EU.

VEHICLE IDENTIFICATION NUMBERS

Record your vehicle's identification numbers and key number in the spaces provided. Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a EGIMOTORS key blank (using your key number) and mating it with one of your existing keys. The ignition switch must be replaced if all keys are lost.

The images below are for reference only. Depending on model, your vehicle may differ slightly.

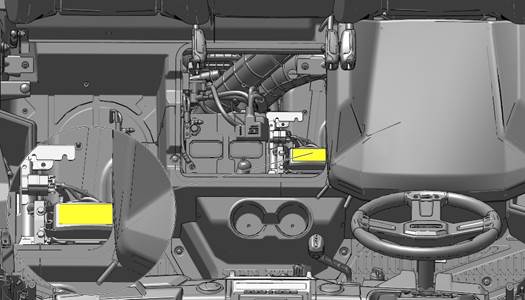

The engine serial number can be found on a decal applied to the front of the engine crankcase ① or stamped into the crankcase on the PTO side of the engine ②. The NRMM label can also be found in either location (if applicable).

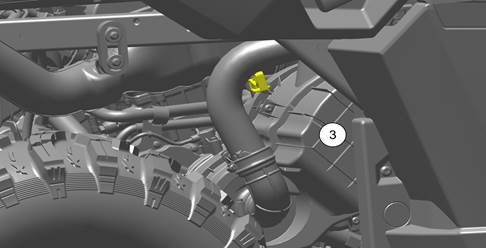

The VIN can be found stamped on a portion of the left rear frame ③, above the PVT cover.

Vehicle Model Number:

Vehicle Identification Number (VIN):

Engine Serial Number:

Key Number:

NRMM Reference Number (if applicable):

CERTIFICATE OF PRE-DELIVERY

Tractor Certificate of Pre-Delivery

Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________

ASSEMBLY / SERVICE / INSPECTION

 - SEALED BATTERY – Apply dielectric grease to terminal bolts and install cable. Check Voltage and charge if below 12,8 Volts.

 - BATTERY VOLTAGE – Misuse and record the battery voltage after 30 minutes after charger has been removed ____ DCV

 - TIRE PRESSURE – Verify Pressure if set to Specification

 - WHEEL NUT – Torque to specification

 - HANDLEBAR CLAMPS - Torque bolts to specification

 - MASTER CYLINDER – Torque bolts to specification

 - FRONT TOE ALIGMENT – Verify proper toe setting

 - BALL JOINT – Inspect bolts and/or cotter pin

 - STEERING POST – Inspect cotter pin

 - TIE ROD – Inspect jam nuts and cotter pin

 - TRANSMISSION – Add oil if needed

 - GREASE FITTING – Check and Grease all the Fitting if needed

 - ENGINE OIL – Check level of oil, add if needed

 - BRAKE FLUID – Check level of fluid, add if needed in brake master cylinder(s)

 - ENGINE COOLANT – Inspect coolant in recovery bottle. Add if needed.

 - PARK BRAKE – Verify proper operation

 - INTAKE AIRBOX – Inspect hose connection and clamps. Inspect filter condition.

 - LIGHTS – Verify operation of all lights

 - FUEL – Check level of fuel and add if needed

 - WIRE HARNESS / HOSE/ LINES – Inspect wire, hoses, and line from kinks, pinching and sign of abrasion.

 - UNIT INQUIRY – Check in the system and complete applicable Service Bulletins Recalls or factory direct modification(s)

 - COSMETIC INSPECTION – Inspect the quadricycle for damage and proper fit and finish.

DEALERSHIP NAME____________________________#_________

ASSEMBLED BY_________________________________________

DATE / /

SIGNATURE

STAMP

Tractor Certificate of Pre-Delivery

Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________

TEST RIDE

 - ENGINE – Starting acceleration and smoothness.

 - IDLE SPEED – Verify when cold and hot the engine idle properly.

 - TROTTLE – With engine idling and transmission in Neutral, swing the handlebar through entire travel range and verify proper and smooth operation.

 - ETC - Verify proper operation and throttle free play.

 - AUXILIARY SHUT OFF SWITCH - Verify proper operation.

 - BRAKES - Verify proper operation. Torque bolts to specification

 - DRIVELINE – Verify smooth operation

 - CLUTCH / TRANSMISSION – Verify proper shifting and transmission engagement/ indicator lights must correspond with gears.

 - AWD ADC – Verify proper operation.

 - REVERSE SPEED LIMITER – Verify operation and override control.

 - INSTRUMENTATION – Verify operational reading.

 - WHINCH (If equipped) – Verify proper operation.

 - SUSPENSION / STEERING – Verify adjustment, stability and operation.

 - ENGINE COOLANT Inspect coolant in recovery bottle between Min and Max after test ride, add if necessary.

 - DIAGNOSTIC SYSTEM – Run Engine up to full operating temperature. Use digital Wrench to generate and submit a “Service Report” recommended Process.

 - LEAKEAGE – After completing “Diagnostic System “check for leakage and verify proper connection of oil / exhaust / fuel / Coolant / Brake fluid fitting, inspect hoses for sign and abrasion.

 - CLEAN – Wash and clean the quadricycle before delivery.

TEST RIDDEN BY ___________________________________________________

DATE / /

SIGNATURE

STAMP

Tractor Certificate of Pre-Delivery

Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________

DELIVERY TO CUSTOMER

 - WARRANTY REGISTRATION FORM – Completed and signed.

 - OWNERS MANUAL – Emphasize the importance of reading for customer Safety and Servicing of Quadricycle/ Explain periodic maintenance responsibilities.

 - WARRANTY POLICY – Explanation / Limit / Requirements.

 - KEYS - Record Key Number.

 - Controls – Show location and function.

 - BELT LIFE – Discuss proper operation procedure operating and proper use of High and Low Gear Range.

 - BREAK IN PROCEDURE – Review as outline in Owner’s Manual.

 - STORAGE / FUELING / TRANSPORTATION – Review as outline in the owner’s manual.

 - TOOL KIT – Show location.

 - Safety Video – Review with Customer.

 - SAFETY FEATURES – Review all safety features of quadricycle operation for new operation.

 - DRIVING PROCEDURE – Review Operator driving procedure outlined in the Owner’s Manual.

 - SVIA TRAINING FACT SHEET – Review with customer.

 - SAFETY TRAINING COURSE SVIA – I have instructed the owner on the authorized SVIA Safety training online course.

 - PRE-DELIVERY CERTIFICATION – I certify that pre-delivery inspection and service have been perform on this vehicle in accordance with the instructions issued by EGIMOTORS.

DEALERSHIP NAME____________________________#_________

DELIVERED BY_________________________________________

DATE / /

SIGNATURE

STAMP

Tractor Certificate of Pre-Delivery

Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________

CUSTOMER ACCEPTANCE

 - I have reviewed the EGIMOTORS warranty Policy / Policies

 - I have inspected the Quadricycle and it meets my satisfaction.

 - I understand the importance of following the Owner’s Manual and instructions.

 - I understand the importance of using all safety features.

Review with customer.

 - I understand the importance of all operation following the operator driving procedures in the Owner’s Manual.

 - I have been instructed on the authorized online SVIA training course by my Dealer ____________________________________

(Name of dealership and person who inform the Customer)

CUSTOMER NAME_____________________________________

CUSTOMER SIGNATURE

DATE / /

SAFETY

OWNER REQUIREMENTS

Improper use, maintenance, or modification of this vehicle can lead to serious injury or death.

Require proper use of your vehicle. Do not allow anyone to operate your vehicle or ride as a passenger unless they are properly instructed and you are sure they are willing to ride responsibly. To prevent unauthorized use, always remove the ignition key when the vehicle is not in use.

Any modifications or installation of non-EGIMOTORS-approved accessories could increase the risk of injury. While you may find aftermarket products similar in design and quality to EGIMOTORS accessories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. It is never appropriate to install any additional seating.

Check with the manufacturer to determine any potential effect of a modification or accessory on the safe use of your vehicle. You are responsible for injuries related to modifications to the vehicle. Modifications or accessories may:

• Damage machine components - especially modifications that increase speed or power.

• Make the vehicle less stable at higher speeds.

• Add weight, reducing the amount of cargo and total weight you can carry, and raise the vehicle’s center of gravity.

• Overload the vehicle’s electrical system capacity. Blowing a fuse may cause a loss of lights or engine power.

• Reduce the effectiveness of occupant protection systems, including the seatbelts and the Rollover Protective Structure (ROPS).

• Make it illegal to own or operate your vehicle. EGIMOTORS-authorized spark arresters, mufflers, and emissions control components are mandatory for ownership or operation in many areas.

• Void your warranty.

The vehicle ROPS, when used with the seat belts and doors, provides a structure to help protect occupants. The structure will not protect occupants in all rollovers or accidents.

For more information about safety, contact an authorized dealer or visit the EGIMOTORS website at www.egimotors.it

DRIVER AND PASSENGER QUALIFICATIONS

Make sure operators are 18 or older with a valid driver’s license. Just because a teenager has a license does not mean that they will make good judgments about driving and avoid risk taking.

EGIMOTORS recommends that you supervise younger drivers. Set rules and put limits on how, when, and where they are allowed to use this vehicle. For example, young drivers may need to have an adult in the vehicle with them and not be allowed to drive with their friends in the vehicle.

Make sure all riders fit the vehicle. Be sure that the driver and all passengers are able to:

• sit with their backs against their seat,

• adjust the seat belt to fit properly,

• have both feet flat on the floor, and

• have both hands on the steering wheel or on a passenger hand hold.

Do not allow children who need child safety seats or booster seats to ride in the vehicle. The vehicle is not designed to restrain automotive child safety seats.

You are responsible for your passengers. Be sure passengers are seated properly, belted, holding the passenger hand hold, and ready to brace.

Unrestrained riders can fall out or be thrown around and from a moving vehicle.

Every person must be properly seated and belted in their own seat. Two people should never be belted into a single seat belt. People belted together can crash into one another in a collision and be seriously injured. Never carry passengers in the cargo bed as they could be thrown against or out of the vehicle or come into contact with moving parts.

Do not let people drive or ride after using alcohol or drugs.

PREPARE VEHICLE FOR THE RIDE

Before starting off, always perform the Pre-Ride Inspection. Failure to inspect and verify that the vehicle is in safe operating condition increases the risk of an accident, which can lead to serious injury or death.

ITEM	REMARK	REFERENCE
Brake Fluid	Ensure proper level and condition	page 111
Front and rear suspension	Inspect	—
Steering	Ensure free operation	page 113
Tires	Inspect condition and pressure	page 28 page 114
Wheels/Lug Nuts	Inspect, ensure fastener tightness	page 115
Fuel and oil	Ensure proper levels and condition	page 90
Coolant	Ensure proper level and condition	page 99
Indicator lights/switches	Ensure proper operation	page 33 page 50
Air Filter	Inspect, replace as needed	page 109
Engine intake pre-filter	Inspect, clean	–
PVT intake pre-filter	Inspect, clean	–
Headlights	Check operation	–
Brake lights/taillights	Check operation	–
Seat Belts	Check length of belt for damage, check latches for proper operation.	page 40

ITEM	REMARK	REFERENCE
Exhaust	Inspect spark arrester and clean if needed.	page 110
Vehicle Debris	Remove grass, leaves, and other flammable material or debris, especially near the exhaust system.	–

Improper tire maintenance can lead to loss of control and an accident, which could result in serious injury or death. To reduce your risk of injury:

• Maintain EGIMOTORS recommended tire pressure. Check pressure before operating. Even if your vehicle has only been driven a short distance, the tire pressure readings can become higher.

• Make sure tire pressures match the specifications listed in the table below.

• Only use the size and type of tires specified for this vehicle.

• Do not operate your vehicle with worn or damaged tires.

• Always follow your tire manufacturer’s instructions for maintenance.

MEASUREMENT	SPECIFICATION
Maximum Cargo Box Load	375 kg
Tire Pressure in Bar	Front: 0,69Bar Rear: 1,65Bar
Maximum Weight Capacity, includes weight of operator, passenger, cargo, and accessories	465 kg

PREPARE YOURSELF, PASSENGERS, AND CARGO FOR THE RIDE

Wear an approved helmet. Riding in this vehicle without wearing an approved helmet increases the risk of serious injury. For example, a helmet reduces your risk of injury from head strikes with the vehicle or other objects even if there is no crash.

Approved helmets in in Europe bear the ECE 22.05 (or newer) label. The ECE mark consists of a circle surrounding the letter E, followed by the distinguishing number of the country which has granted approval. The approval number and serial number will also be displayed on the label.

Use shatterproof goggles or a shatterproof helmet face shield. Such protective eyewear may reduce the risk of foreign material getting in your eyes and help prevent loss of vision.

EGIMOTORS recommends wearing approved Personal Protective Equipment (PPE) that have markings indicating they are designed to standards CE.

Additional protective clothing and gear that may be appropriate for your riding conditions includes:

• Always wear shoes when operating. Consider wearing sturdy over-the-ankle boots suitable for the terrain you will be riding in.

• Full-finger gloves can protect against wind, sun, cold, and objects. Choose gloves that fit snugly and allow fingers to move freely and grip on the steering wheel or hand holds.

• Consider long sleeves and long pants to help protect arms and legs.

• Long-term exposure to wind and engine noise can cause permanent hearing loss. Properly worn hearing protective devices such as earplugs can help prevent hearing loss. Check local laws or the rules of the riding area you are in before wearing hearing protection to make sure its use is permitted.

Always stay completely inside the vehicle and hold the steering wheel or hand holds. Body parts outside of the vehicle can be struck by passing objects or crushed during a rollover. Do not put any part of your body outside of the vehicle for any reason. Do not hold onto the ROPS frame or put any part of your body on the door.

Riding in this vehicle without closed and latched cab doors increases the risk of serious injury or death in the event of an accident or rollover. Always make sure all cab doors are closed and latched while riding in this vehicle.

Be sure riders pay attention and plan ahead. If you think or feel the vehicle may tip or roll, reduce your risk of injury:

• Keep a firm grip on the steering wheel or hand holds and brace yourself.

• Do not put any part of your body outside of the vehicle for any reason.

This vehicle is not designed to carry unrestrained pets. An unrestrained pet can be thrown about and injure riders, even during normal operation. When transporting pets, use a pet crate suitable for off-road use that is secured to the vehicle.

Fuels such as gasoline can be extremely flammable. To reduce the risk of serious injury or death, never carry fuel or other flammable liquids on this vehicle. Rollovers, crashes, rough riding, or changes in elevation or temperature may lead to fuel spilling or vapor release from portable containers. Hot vehicle parts can cause fires, even after the engine has been turned off.

Never exceed vehicle weight capacities. The vehicle’s maximum weight capacity varies depending on model. The cargo box can support up to 272 kg of that total. When more rider weight is added, cargo weight may need to be eliminated to stay under the limit. Overloading the vehicle or carrying cargo improperly will cause changes in stability and handling, which could cause loss of control or an accident.

Secure cargo in the cargo box as far forward, centered and as low as possible. When cargo cannot be positioned and secured in this way, operate with extra caution. Unsecured cargo can strike and injure riders, affect vehicle handling, and result in loss of control.

The weight of riders and cargo changes vehicle braking, handling, and stability. To avoid loss of control, turn gradually, operate at slower speeds, and avoid rougher or steeper terrain.

DRIVING GUIDELINES

Drive Responsibly. This vehicle has higher ground clearance and other features to handle rugged terrain. It can be overturned in situations where some other vehicles may not. Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control, rollovers, severe injury or death. To avoid loss of control and rollovers:

• Avoid abrupt maneuvers, sideways sliding, skidding, or fishtailing, and never do donuts.

• Slow down before entering turn.

• Avoid hard acceleration when turning, even from a stop.

High speed off-road operation

Driving off-road vehicles to test the limits of your skills or abilities can be very dangerous to you, passengers, and bystanders. Basic skills for driving a car, ATV, or other off-road vehicles do not equip drivers to safely attempt high speed off-road operation. Develop your skill gradually through training, practice, and experience with the various driving modes of this vehicle and the terrain in which you are operating. Always do a low speed reconnaissance run (pre-run) to become aware of anything you may encounter.

High speed off-road operation can lead to loss of control, crashes, or hard landings that can seriously injure occupants (even without rolling the vehicle or damaging it).

If you plan on using the vehicle for high speed, off-road competition, additional safety equipment may be necessary. Check the rules that apply to your competition.

Do not go over jumps — going airborne can lead to serious injury or death. Going airborne can cause loss of control, rollovers, or crashing into the ground and may damage the vehicle. Even without crashing, landings can be hard enough to cause any vehicle suspension to fully compress (e.g., bottom out).

Serious injuries, including spinal injuries, can occur even if riders are properly harnessed, wearing helmets and the vehicle is not damaged and remains upright.

You may encounter slopes, "jumps", or other terrain features that could send the vehicle airborne, depending on your speed. These may be defectively designed, poorly maintained, or not suitable for this vehicle. Slow down, use extra care, and avoid going airborne. Never take this vehicle over jumps.

Watching someone else go over a jump or go airborne does not mean you can safely do so. EGIMOTORS cannot determine whether any jump you may encounter is appropriate for this vehicle. Any jump, even a small one, could be poorly maintained, designed, or not suitable for this vehicle and may cause serious injury or death.

Plan for hills, rough terrain, ruts, and other changes in traction and terrain. Proceed slowly and with extra care on unfamiliar terrain. Avoid paved surfaces. Sudden changes in terrain such as holes, depressions, banks, softer or harder ground, or other irregularities may cause loss of control or rollover. Give yourself time to react to rocks, bumps, or holes that may be hard to see. Operating in deep snow or tall grass may make it harder to see obstacles.

If you cannot go around an obstacle, such as a fallen tree or a ditch, stop the vehicle in a safe place. Get out to inspect the area thoroughly. Look from both your approach side and exit side. If you are reasonably confident you can continue safely, choose the path that will allow you to go straight over the obstacle to minimize the vehicle tipping sideways. Go only fast enough to maintain your momentum, but still give yourself plenty of time to react to changes in conditions. If there is any question about your ability to maneuver safely over the obstacle, you should turn around if the ground is flat and you have the room, or back up until you find a less difficult path.

Abrupt application of the accelerator pedal can cause the tires to lose traction, reducing control of the vehicle and increasing the possibility of an accident, especially while on sloped terrain or while crossing obstacles such as rocks or logs.

This Tractor is approved for on-road use, limited to local road and NOT HIGHWAYS.

Improperly operating on hills can cause loss of control, rollover, or accident, which can lead to serious injury or death. Use extra care when operating on hills. Plan for rough terrain, ruts, and other changes in traction and terrain.

Driving up hills

Check the terrain before ascending a hill and make sure it is not too slippery or loose. Engage all-wheel drive for hills. Drive straight uphill, keeping speed and throttle steady. Avoid steep hills which can cause the vehicle to overturn.

Recovering from stalling on a hill

If the vehicle loses forward speed, apply the brakes gradually and stop. Do not attempt to turn the vehicle around. Instead, shift to reverse and allow the vehicle to slowly roll straight downhill. Apply light brake pressure to control speed.

Overtopping a hill

Slow down when you reach the crest of a hill. Never blindly go over the crest of a hill or a drop off at high speed. An obstacle, a sharp drop, or another vehicle or person could be on the other side of the hill.

Driving down hills

Check the terrain before descending a hill and make sure it is not too slippery or loose. Engage all-wheel drive and proceed slowly, applying the brakes lightly.

Never descend a hill with the transmission in neutral or if the engine is turned off.

Avoid side hilling (riding across slopes)

If unavoidable, proceed slowly and with extra caution. Avoid obstacles and changes in terrain that could cause the vehicle to tip or slide. If it feels like the vehicle begins to tip or slide, immediately turn downhill.

Riding near wooded areas or brush

Use extra caution when operating near trees, particularly when operating on narrow trails. Tree branches or brush can be driven into the cab striking or stabbing occupants.

Riding in snow

Always keep the brake and accelerator pedals free of snow and ice. Apply the brakes frequently to prevent ice or snow accumulation on the brake pads which can reduce brake performance.

Riding on ice

Never operate the vehicle on a frozen body of water unless you have verified that the ice can support the weight of the vehicle. Severe injury or death can result if the vehicle falls through the ice.

Riding in water / Falling into water

Operating through deep or fast-flowing water can cause loss of traction, loss of control, overturning, or being swept away in water. You can be seriously injured or killed from entrapment and drowning. Never operate the vehicle in

fast-flowing water or in water that exceeds the floor level of the vehicle. For Waterfowl models, do not exceed the seat base level. Avoid sharp drop-offs and large rocks. Choose a path that provides an entrance and exit point with gradual inclines. Wet brakes may have reduced stopping ability. After leaving water, test the brakes. Apply them lightly several times while driving slowly. The friction will help dry out the pads.

Riding on sand dunes

Use extra caution when operating on or near dunes. Be alert for changes in terrain. Never blindly go over the crest of a hill or a drop-off at high speed. An obstacle, a sharp drop, or another vehicle or a person could be on the other side of the hill.

Riding in low-visibility conditions

Use extra caution and drive slowly in conditions of reduced visibility such as fog, rain, and darkness.

Plan ahead to avoid the need for evasive maneuvers, such as swerving. Hitting an obstacle — including wildlife — you are not ready for can be dangerous. Choosing to swerve instead can be even more dangerous because it can lead to loss of control, rollover, or collisions.

When operating in areas with possibility of wildlife appearing in your path, plan ahead to avoid swerving for animals if doing so could result in collisions or rollovers. Go slowly or avoid driving during seasons or times of day when animals such as deer are more likely to cross your path without warning.

Avoid Collisions With Other Vehicles

When following another vehicle or operating in the same area as others, keep a safe distance to avoid collisions. Allow extra space when sight distances are limited by dust, snow, curves, hills, or other conditions. Plan ahead to avoid having to swerve or leave the trail to avoid a collision.

On trails, be prepared to make space for other vehicles to pass. If you need to stop on a trail, move your vehicle to the edge of the path to allow others to pass safely.

Correct a skid by turning the steering wheel in the direction of the skid.

Never apply the brakes during a skid.

If the vehicle begins to slide downhill or you feel it may tip, turn downhill immediately and stop. Maneuver slowly and carefully until you can drive straight downhill.

Do not continue driving if your vehicle may be damaged or if you were in a crash or rollover.

Operating the vehicle while damaged or after a crash or rollover can cause loss of control, rollover, or accident, which can lead to serious injury or death. If you cannot safely transport the vehicle on your own, contact a recovery and towing service.

After any crash, rollover, or other accident, have a EGIMOTORS dealer inspect the vehicle for possible damage, including seat belts, ROPS, brakes, suspension, and steering systems.

Be prepared in case your vehicle becomes damaged or disabled, especially in remote areas. Consider in advance how to get help and stay safe until it arrives whenever you ride.

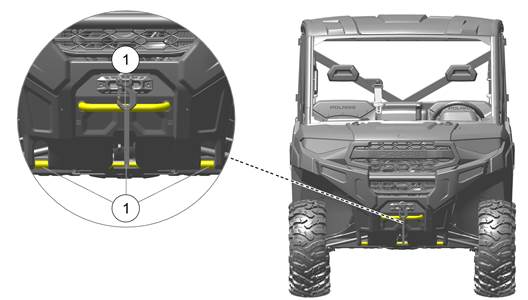

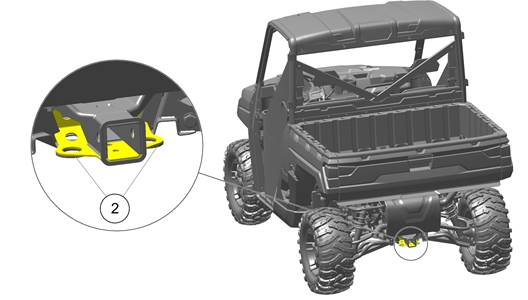

There is a recovery tow loop ① at the front and back ②of the vehicle to attach a winch or strap.

Use these loops to recover this vehicle if it is stuck, to pull it onto a tow truck, trailer, or to use this vehicle to recover another vehicle. These loops are for emergency recovery only and are not for towing vehicles to another location.

Improper recovery may lead to loss of control or vehicle damage. Only attach straps to specified locations. Do not attach to any other point on the vehicle. Only recover a vehicle of equal or lesser size and weight. When recovering a disabled vehicle, place the disabled vehicle’s transmission in neutral. Do not move a disabled vehicle faster than 10 mph (16 km/h).

Operating, Idling, Or Parking Near Combustible Materials

Engine, exhaust, and other vehicle components can be very hot during and after use. Do not idle or park the vehicle over anything that could contact the exhaust system and catch on fire, such as tall grass, weeds, brush, leaves, debris, or other tall ground cover. Do not let mud, grass, or other debris accumulate on the engine or exhaust system. Inspect and remove as needed.

Vehicle rollaway can cause serious injury or death. Even when stationary, the vehicle may move whenever the gear selector is not in the PARK (P) position or when the brakes are not applied. Always shift to PARK (P) when turning off the engine or leaving the vehicle. Use extra care, when leaving the vehicle on an incline is unavoidable. If leaving the vehicle unattended on a hill, block the rear wheels on the downhill side and keep children, pets and others away from the gear selector.

Before shifting into reverse, use extra care to make sure the area is clear of people or obstacles. When it’s safe to proceed, back slowly.

After operation, inspect the vehicle for damage and debris to make sure the vehicle can be safely stored and operated again. Some things to inspect include:

• Debris that could catch fire, such as mud/grass near the engine or exhaust system

• Damage to the suspension, steering, or any other part of the vehicle

• Tire condition, such as tread and sidewall damage

• Shock absorber assembly condition

Be sure to have any issues checked and problems fixed before operating again.

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion, and eventually death. Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly, and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

• Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.

• Do not run engine in poorly ventilated or partially enclosed areas such as barns, garages, or carports. If you start a vehicle in one of these, drive it out and close the door as soon as possible. If you drive it into one of these, turn it off as soon as possible.

• Do not run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors.

For more information about safety, contact an authorized EGIMOTORS dealer or visit the EGIMOTORS web site at www.egimotors.it .

RANGER CREW XP1000 TRACTOR

SAFETY LABELS AND LOCATIONS

Warning labels have been placed on the vehicle for your protection. Read and follow the instructions of the labels on the vehicle carefully. If any of the labels depicted in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle.

If any label becomes illegible or comes off, contact your EGIMOTORS dealer to purchase a replacement. Replacement safety labels are provided by EGIMOTORS at no charge. The part number is printed on the label.

GENERAL ALERT

The General Alert decal is location on the console.

WARNING

Read your owner’s manual. Never allow anyone under 18 years of age to operate this vehicle. Never use alcohol or drugs before or while driving or riding. Do not allow operation on public roads (unless designated for off-highway vehicle access). Wear approved helmet, goggles, and protective clothing.

Always wear seat belts. Always use the cab nets or doors. Never exceed seating capacity.

CLUTCH COVER ALERT

The Clutch Cover Alert decal is located on the clutch cover

WARNING

Keep body parts away from belt. Part Number: 7181427

SHIFT ALERT

The Shift Alert is located on the console.

WARNING

To avoid transmission damage, shift only when vehicle is stationary and at idle.

APPLY BRAKE TO START.

When this vehicle is not in operation, or unattended, place shift in the park position.

Part number: 7300631

INTAKE ALERT

The Intake Alert is located on the air box.

WARNING

Use a EGIMOTORS approved air filter. The use of a non-EGIMOTORS approved air filter may cause engine damage. Before installing filter ensure there is no dirt or debris in the clean side of the intake tube.

The air filter must be properly seated and the hinges fully inserted when the lid is reinstalled. Please reference your owner’s manual for additional information regarding the air filter service.

Part number: 7185975

TIRE PRESSURE ALERT

The tire Pressure Alert is located on the rear side of the vehicle

WARNING

Read owner’s manual

RANGER CREW
MAXIMUM CARGO BOX LOAD	375 kg
TIRE PRESSURE IN Bar	FRONT 0,69 bar REAR 1,65 bar
MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR, PASSENGER, CARGO AND ACCESSORIES	465 kg
Read Operation and Maintenance Manual for more detailed loading information.

JACKING POINTS ALERT

The Jacking Point Alert decal is located in the cargo box.

CAUTION

Jacking positions are located beneath the vehicle’s center points.

GREASING POINTS ALERT

The Greasing Points Alert is located on the cargo box.

CAUTION

Lubricate as recommended. Read owner’s manual.

FEATURES AND CONTROLS

COMPONENT LOCATIONS - CREW MODEL

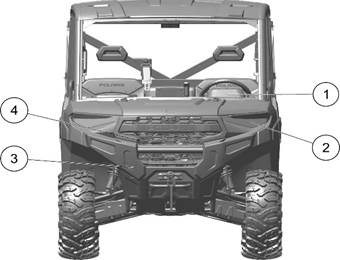

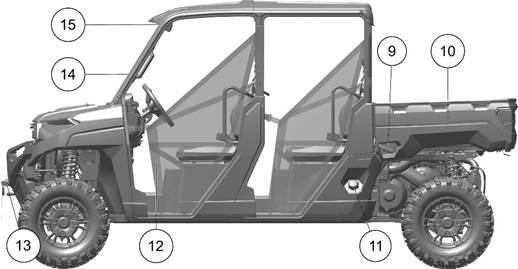

① Console

② Headlights

③ Bumper/ Brush Guard

④ Radiator/AC Condenser t

⑤ Tailgate

⑥ Taillights

⑦ Receiver Hitch

⑧ Exhaust

⑨ Cargo Box Release Lever

⑩ Cargo Box

⑪ Fuel Cap

⑫ Door (if equipped)

⑬ Winch (if equipped)

⑭ Windshield (if equipped)

⑮ ROPS Cab Frame

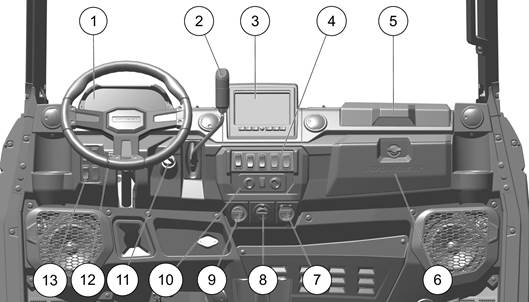

CONSOLE

① Instrument Cluster

② Gear Selector (Shifter)

③ Ride Command Display (if equipped)

④ Right-Side Switch Panel

⑤ Upper Storage Box

⑥ Lower Storage Box

⑦ USB Charging Port

⑧ Battery Trickle Charging Port

⑨ 12V Auxiliary Port

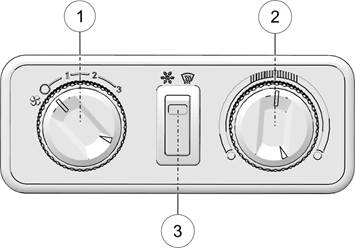

⑩ HVAC Controls (if equipped)

⑪ Ignition Switch

⑫ Steering Wheel Adjustment Lever

⑬ Left Side Switch Panel

STEERING WHEEL

The steering wheel can be tilted upward or downward for rider preference. Lift and hold the steering wheel adjustment

lever ① while moving the steering wheel upward or downward. Release the lever when the steering wheel is at the desired position. Always make sure the

steering wheel position does not impede proper operation of the brake pedal, throttle pedal and all other controls.

GEAR SELECTOR

To change gears, stop the vehicle, and with the engine idling, move the lever ① to the desired gear. Do not attempt to

shift gears with engine speed above idle or while the vehicle is moving.

• H: High Gear

• L: Low Gear

• N: Neutral

• R: Reverse

• P: Park

Low gear is the primary driving range for the RANGER. High gear is intended for use on hard-packed surfaces with light loads. Whenever the vehicle is left unattended, always place the transmission in PARK.

Maintaining shift linkage adjustment is important to assure proper transmission function. Your EGIMOTORS dealer or other qualified person can assist in resolving any shifting problems.

Do not attempt to shift the transmission while the vehicle is moving or damage to the transmission could result. Always shift when the vehicle is stationary and the engine is at idle.

SWITCHES

IGNITION SWITCH

The ignition switch ① is a four-position, key-operated switch. The key can be removed from the switch when it is in the OFF position.

Ignition Switch Label

	OFF	The engine is off. Electrical circuits are off.
	ACCESSORY	The engine is OFF. Power is supplied to the USB charger, 12V Auxiliary Outlets, Front Pulse Bar, CAB Harness, Rear Accessory Switch, and Ride Command Display (if equipped).
	SYSTEM ON	All lights are ON. Electrical circuits are ON. Electrical equipment can be used.
	START	Turn the key to the START position to engage the electric starter. The key returns to the ON position when released.

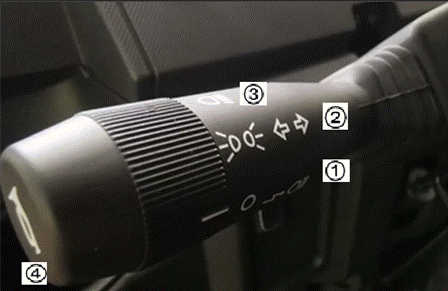

TURN SIGNAL LEVER

Before turning, activate a turn signal to alert others of your intentions. Check turn signal lamps before each ride.

Move the lever upward ① to signal a right turn. The right signal lamps and indicator will flash.

Move the turn signal lever downward ② to signal a left turn. The left turn signal lamps in the taillight and below the front headlight will flash. The turn signal indicator in the gauge (or if located on the dash) will also flash.

Return the lever to the center position to end the signal.

LIGHTS SWITCH

Rotate the lights switch clockwise to turn on the headlights and taillights on (position lamp ②, headlights ③). Turn the headlight switch counter clockwise to turn the lights off ①.

① – off position

② – position lights on

③ – headlights on

④ – horn signal

tp

HIGH BEAM/ LOW BEAM HEADLIGHTS

1. Key ignition switch to SYSTEM ON position. To flash high beam headlight pull the headlight switch towards the driver.

2. Key ignition switch to SYSTEM ON position. Rotate the light switch clockwise to the headlights sign ③ to turn low beams headlights. Push the headlight switch against the driver to switch from the low beam headlights to high beam headlights. Pull the headlight switch again to switch from high beam headlights to low beam headlights.

HORN SWITCH

The horn switch is located on the turn signal lever. Press the tip ④ of the turn signal lever inward to sound the horn.

HAZARD SWITCH

Push the hazard warning switch to cause all turn signal lights to flash simultaneously. Both turn signal indicators on the gauge or on console will also flash. Use this feature to alert others of an emergency or other situation requiring caution.

AWD SWITCH

The AWD switch has three positions: All Wheel Drive (AWD), Differential Lock/Two Wheel Drive (2WD) and Off (1WD / Turf Mode).

Press the top of the switch to engage All Wheel Drive (AWD).

Move the switch to the center position to lock the differential and operate in two wheel drive (2WD).

Press the bottom of the switch to unlock the differential and allow the rear drive wheels to operate independently (1WD / Turf Mode). This mode of operation is well suited to turf driving or when active traction is not needed.

EGIMOTORS 3-MODE THROTTLE CONTROL SWITCH

The EGIMOTORS 3-Mode Throttle Control Switch has three positions:

• Performance (PERF)

• Standard (STND)

• Work (WORK)

Always use low gear for any of the following conditions regardless of the selected throttle control setting:

• Operating in rough terrain or over obstacles.

• Loading the vehicle onto a trailer.

• Towing heavy loads.

• Driving frequently at low RPM or at ground speeds below 11 km/h.

ACTIVE DESCENT CONTROL (ADC) SWITCH (IF EQUIPPED)

The ADC system allows engine braking to all four wheels when the vehicle descends a hill or incline. Press the top of the switch to engage ADC. Press the bottom of the switch to turn off ADC. Always operate in low gear and engage ADC before ascending or descending a hill.

HVAC CONTROL PANEL (IF EQUIPPED)

To operate the cab heater, rotate the fan control ① to the desired fan speed setting. The far left setting turns the fan off.

Adjust the temperature by rotating the temperature control ② to the desired heat setting. Rotate the control clockwise to increase heat or counter-clockwise to decrease heat.

Press the top of the A/C switch ③ to enable the air conditioning system for cooling or defrost purposes.

WINDSHIELD WIPER/WASHER SWITCH (IF EQUIPPED)

The windshield wiper/washer switch is located on the vehicle dashboard. The windshield washer fluid reservoir is located under the hood.

Select the desired function by pressing the top or bottom of the switch. The windshield wiper/washer switch has three positions:

• WASHER ON - top of switch fully pressed

• WIPER ON - middle position

• OFF - bottom of switch fully pressed

WINCH CONTROLS (IF EQUIPPED)

Vehicles equipped with factory-installed winches have an automatic stop function to prevent overtightening when the winch is fully wound.

WINCH SWITCH

Press the top of the rocker switch to spool line out from the winch. Press the bottom of the rocker switch to spool line in to the winch. Move the rocker switch to the center position to stop spooling.

REMOTE WINCH SWITCH (IF EQUIPPED)

The remote winch switch is located under the hood. To power-on or

power-off the switch, press and hold the power button for 3 seconds. Press and hold the button labeled “OUT” to spool line out from the winch. Press and hold the button labeled “IN” to spool line in to the winch. The switch will automatically power-off after 30 seconds of inactivity.

AUXILIARY OUTLET

The vehicle is equipped with 12–volt accessory outlets on the dash. Use the outlets to power an auxiliary light or other optional accessories or lights. For service, the dash outlet connection is under the dash.

BATTERY TRICKLE-CHARGING OUTLET

The vehicle is equipped with a dedicated outlet for trickle-charging the battery during periods of extended inactivity.

If you do not drive the vehicle for more than TWO WEEKS, EGIMOTORS recommends using a BatteryMINDer® 2012 AGM - 2 AMP charger, which can be ordered through your dealer.

EGIMOTORS provides a charging accessory with your vehicle that allows easy connection to the battery through the Battery Trickle-Charging Outlet, located on the dash. While charging, place the charger outside of the vehicle and protect it from moisture.

USB OUTLET

The vehicle is equipped with a single USB outlet in the center dash. The outlet consists of two USB terminals.

FOOT PEDALS

BRAKE PEDAL

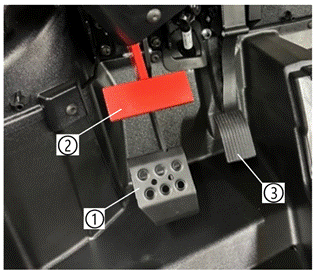

Depress the brake pedal ① to slow or stop the vehicle. Apply the brakes while starting the engine.

When the brake pedal is depressed, the brake light comes on. Check the brake light before each ride.

1. Turn the ignition switch to the ON position.

2. Apply the brakes. The brake light should come on after small amount of pedal travel.

SECONDARY BRAKE PEDAL

Your Tractor is Equipped with a secondary pedal ② for brake in case of failure of the standard one.

THROTTLE PEDAL

Push the throttle pedal ③ down to increase engine speed. Spring pressure returns the pedal to the rest position when released. Always check that the throttle pedal returns normally before starting the engine.

If the throttle pedal and brake pedal are applied simultaneously, engine power may be limited.

SEAT

SEAT BELTS

This vehicle is equipped with three-point lap and diagonal seat belts for the operator and any passengers. Always make sure the seat belts are secured for all riders before operating. The driver’s seat belt is equipped with a seat belt interlock. Vehicle speed will be limited to 15 MPH (24 km/h) if the seat belt is not secured.

Falling from a moving vehicle could result in serious injury or death. Always fasten your seat belt securely before operating or riding in the vehicle.

To wear the seat belt properly, follow this procedure:

1. For 3-point belts, pull the seat belt latch ① downward and across your chest toward the buckle at the inner edge of the seat. The belt should fit snugly across your hips and diagonally across your chest. Make sure the belt is not twisted.

2. Push the latch plate ① into the buckle ② until it clicks.

3. Release the strap, it will self-tighten.

4. To release the seat belt, press the square red button in the buckle’s center.

Failure to perform regular inspection can reduce the effectiveness of the seat belt during a crash and could result in serious injury or death.

SEAT BELT INSPECTION

Inspect all seat belts for proper operation before each use of the vehicle.

1. Push the latch plate into the buckle until it clicks. The latch plate must slide smoothly into the buckle. A click indicates that it's securely latched.

2. Push the red release latch in the middle of the buckle to make sure it releases freely.

3. Pull each seat belt completely out and inspect the full length for any damage, including cuts, wear, fraying or stiffness. If any damage is found, or if the seat belt does not operate properly, have the seat belt system checked and/or replaced by an authorized dealer.

4. To clean dirt or debris from the seat belts, sponge the straps with mild soap and water. Do not use bleach, dye or household detergents. Rinse the entire length of the belt webbing. Use a garden hose to flush out the retractor and latch housings regularly.

SEAT AND STORAGE COMPARTMENTS

The electrical compartment is located under the center rear-most seat. Never use this area for storage. Storage compartments are located under all other seats. Remove the storage bin under the center rear-most seat to access the battery and electrical compartment.

Always make sure all seats are properly installed before operating.

DRIVER’S SEAT

To access the storage area under the driver’s seat, reach behind the driver’s seat and pull up on the latch. Roll the bottom of the seat forward toward steering wheel.

PASSENGER’S SEAT

To access the storage area under the passenger seat, lift up on the front of the passenger seat and raise it to the upright position.

ELECTRONIC POWER STEERING

Electronic power steering (EPS) engages when the ignition key is turned to the ON position. EPS remains engaged whether the vehicle is moving or idle. To conserve battery power, the EPS will shut down 5 minutes after the engine is stopped if the key remains in the ON position. The EPS warning indicator will illuminate to indicate the EPS has shut down. Turn the key off and on to reset the unit. If the light remains on after starting the engine, the EPS system is inoperative. See your EGIMOTORS dealer, or other qualified person, as soon as possible for repair. Continued operation could result in permanent damage to the EPS unit and increased steering effort.

FUEL CAP

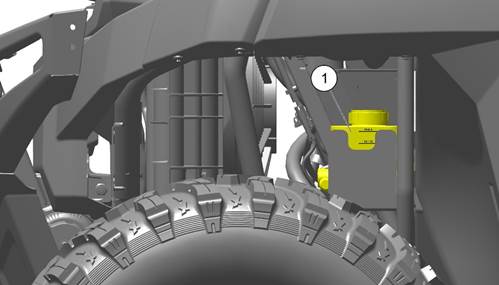

The fuel tank filler cap ① is located on the left-hand side of the vehicle near the driver’s seat. To close, tighten the fuel cap until it clicks twice. When refueling, always use unleaded gasoline with a minimum pump octane number of 87 R+M/2 octane. Do not use fuel with ethanol content greater than 10 percent, such as E-85 fuel.

Always ensure that the fuel tank filler cap is fully tightened and secure before operating or transporting the vehicle.

Tractor Model: 91 RON E5 and E10 Compatible

CAB NETS (IF EQUIPPED)

Riding in this vehicle without using the cab nets (or doors, if equipped) increases the risk of serious injury or death in the event of an accident or rollover. Cab nets (or doors) must be used by both operator and passengers at all times. Make sure all latches are secure before operating the vehicle

Always inspect cab nets and latches for tightness, wear and damage before each use of the vehicle. Use the strap adjusters to tighten any loose straps. Promptly replace worn or damaged cab nets and latches with new cab nets and latches. Your EGIMOTORS dealer or qualified technician can assist.

SECURING THE NET

1. Connect the latch at the top edge of the net to the receiver latch mounted on the front frame.

OPENING THE NET

1. To exit the vehicle, release the top front latch.

2. Allow the net to hang freely outside the vehicle while dismounting.

ROLLOVER PROTECTIVE STRUCTURE (ROPS)

The Rollover Protective Structure (ROPS) on this vehicle meets OSHA® 1928.53 rollover performance requirements. Always have your authorized dealer thoroughly inspect the ROPS if it ever becomes damaged in any way.

No device can assure occupant protection in the event of a rollover. Always follow all safe operating practices outlined in this manual to avoid vehicle rollover.

Vehicle rollover could cause severe injury or death. Always avoid operating in a manner that could result in vehicle rollover.

HOOD LATCHES

To remove the hood, rotate the hood latches ① 1/4-turn and lift the hood away from the vehicle.

WINDSHIELD (IF EQUIPPED)

If equipped, the windshield on your model may be a fixed windshield or a tip-out windshield. The tip-out windshield can be opened.

VENTED WINDSHIELD

To vent air into the cab, firmly grasp the windshield handle. Lift and push the handle toward the windshield until the windshield opens slightly. Align the rear handle ring (nearest the hand grip) over the dash pin and press the handle downward to secure the vented windshield.

Do not operate the vehicle with the windshield in the fully open position. Damage to the windshield could occur.

OPEN WINDSHIELD

To open the windshield, firmly grasp the windshield handle. Lift and push the handle toward the windshield until the windshield opens fully.

Grasping the glass to close the windshield could result in damage to the windshield. Always use the windshield handle.

CLOSED WINDSHIELD

To close the windshield, firmly grasp the windshield handle. Pull the handle downward until the windshield is fully closed.

Align the front handle ring (nearest the hinge) over the dash pin and press the handle downward to secure the closed windshield.

REAR WINDOW PANEL (IF EQUIPPED)

WINDOW REMOVAL

1. Rotate the upper window latches ① counter-clockwise to release the locks.

2. Tilt the upper edge of the window slightly outward and free the lower window brackets ② from the frame, then carefully lift the window up and away from the vehicle.

3. Secure the upper window latches.

4. To prevent damage to the window during storage, store it in an upright position in a secure area. Place the lower frame of the window on wood or another semi-soft surface.

WINDOW INSTALLATION

1. Rotate the upper window latches counter-clockwise to release the locks.

2. From the rear of the cab, place the lower edge of the window into the window opening, hooking the lower window brackets over the frame of the vehicle inside the cab.

3. Align the upper edge of the window to the window opening.

4. Secure the upper window latches.

TRAILER HITCH

This vehicle is equipped with a receiver hitch bracket for a trailer hitch and trailer towing equipment.

After 1000 km of use, tighten the bolt holding the trailer ball to the hitch to 445 N⋅m.

Whenever the vehicle is towing, always stay clear of the area between the vehicle and the towed object. Failure to do so may result in serious injury or death.

To avoid injury and property damage, always heed the warnings and towing capacities outlined in the specification table.

REAR HITCH

Use the rear hitch for towing a trailer. See the Hauling Cargo section for details and procedures.

The values given below pertain to factory-installed hitches and are provided for informational purposes only.

For vehicle-specific trailering values, see the Specifications chapter. The vehicle-specific values take precedent if they are lower than the component values shown below.

For vehicle-specific trailering values, see the Specifications chapter. The vehicle-specific values take precedent if they are lower than the component values shown below.

Strictly follow the instructions outlined in the operator’s manual of the mounted or trailed machinery or trailer, and not to operate the combination tractor — machine or tractor — trailer unless all instructions have been followed.

REAR HITCH COMPONENT SPECIFICATIONS
Maximum Vertical Load(s)	150 kg
Maximum Dynamic Force (D)	23,0 kN
Approval #	E11 55R-0110609

REAR HITCH CERTIFICATION LABEL

The hitch certification label is located on the hitch bar.

HITCH REMOVAL / INSTALLATION

1. To remove the hitch (if equipped), remove the cotter pin ① and hitch pin w. Remove the hitch, then reinstall the hitch pin w and secure the cotter pin ①.

2. To install the hitch, remove the cotter pin ① from the hitch pin and remove the hitch pin ②.

3. Install the hitch to the receiver.

4. Reinstall the hitch pin (from the left side of the hitch) through the bore of both the receiver and the hitch.

5. Reinstall the cotter pin. Make sure the hitch assembly is secure at that the cotter pin is properly engaged over the hitch pin.

Note: above pictures might vary from hitch variant installed on your vehicle

7-WAY TRAILER CONNECTOR

The 7-way trailer connector installed on your vehicle ① meets the requirements of European standard ISO 1724.

This connector uses all 7 pins on newer model trailers. An older model trailer may not be compatible with this connector.

Improper electrical wiring changes can result in damage to both vehicle and trailer components. When in doubt about your trailer connection, please contact a qualified towbar specialist for assistance.

High water pressure may damage components. Wash the vehicle by hand or with a garden hose using mild soap. Certain products, including insect repellents and chemicals, will damage the speedometer lens and other plastic surfaces. Do not use alcohol to clean the instrument cluster. Do not allow insect sprays to contact the lens. Immediately clean off any gasoline that splashes on the instrument cluster.

INSTRUMENT CLUSTER

① Speedometer

② Tachometer

③ Indicator Lamps

SPEEDOMETER

④ Mode Button

⑤ Toggle Buttons

⑥ Rider Information Center

The speedometer displays vehicle speed in either miles per hour (MPH) or kilometers per hour (km/h).

TACHOMETER

The tachometer displays engine speed in revolutions per minute (RPM).

MODE AND TOGGLE BUTTONS

Press and hold the MODE button ④ to enter or exit the settings menu. Press and release the MODE button to cycle through Area 1 modes and to select an item.

Press and release either toggle button ⑤ to cycle through the options menu or Area 2 modes. Press and hold either toggle button to reset an item. See page 51.

With the ignition key off, pressing the MODE button or either toggle button will power up the Rider Information Center for 10 seconds to allow viewing of the odometer and the clock.

INDICATOR LAMPS

INDICATOR	ICON	FUNCTION
Vehicle Speed		When standard mode is selected, speed displays in miles per hour.
		When metric mode is selected, speed displays in kilometers per hour.
Check Engine		This indicator appears if a fault occurs. Do not operate the vehicle if this warning appears. Serious engine damage could result. Your authorized EGIMOTORS dealer can assist.
Check Battery		This warning usually indicates that the vehicle is operating at an RPM too low to keep the battery charged. It may also occur when the engine is at idle and high electrical load (lights, cooling fan, accessories) is applied. Drive at a higher RPM or recharge the battery to clear the warning.
EPS Warning (if equipped)		This indicator illuminates briefly when the key is turned to the ON position. If the light remains on, the EPS system is inoperative. See your EGIMOTORS dealer, or other qualified person, as soon as possible for repair. Continued operation could result in permanent damage to the EPS unit and increased steering effort.

INDICATOR	ICON	FUNCTION
Engine Hot		This lamp illuminates to indicate an overheated engine. If the indicator flashes, the overheating condition remains, and the system will automatically reduce engine power.
Neutral		This lamp illuminates when the transmission is in neutral and the ignition key is in the ON position.
Helmet/Seat Belt		This lamp is a reminder to the operator to ensure all riders are wearing helmets and seat belts before operating. The driver’s seat belt is equipped with a seat belt interlock. Vehicle speed will be limited to 24 km/h if the seat belt is not secured.
High Beam		This lamp illuminates when the headlamp switch is set to high beam.
Brake Failure (if equipped)		Lamp illuminates when Brake System (if Brake Failure Alarm is equipped) detects low fluid level in brake hydraulic system. Verify brake fluid in reservoir. Note: this light is separate light added on console.
Turn Signals (if equipped)		One arrow flashes when the corresponding turn signal is activated. Both arrows flash when the hazard signal is activated. If there is a problem in the signal system, the lamps will flash at twice the normal rate.

INDICATOR	ICON	FUNCTION
Low Fuel		This lamp illuminates when fuel level in the fuel tank is low.
Speed Limiting		Speed limiting is integrated into the Instrument Cluster or Ride Command Display (if equipped).
Operator presence		Lamp illuminates when driver is not detected on the seat, in additional an acoustic signal is present. Note: It is located on the main dash under the gear shift.

RIDER INFORMATION CENTER

①	Gear Indicator	This indicator displays gear shifter position. H = High Gear L = Low Gear N = Neutral R = Reverse Gear P = Park – = Gear Signal Error (or shifter between gears)
②	AWD Indicator	This indicator shows whether 2X4, AWD, or TURF Mode is active.
③	Service Indicator	A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your EGIMOTORS dealer, or other qualified person, can provide scheduled maintenance.
④	Fuel Gauge	The segments of the fuel gauge show the level of fuel in the fuel tank. When the last segment clears, a low fuel warning is activated. The outline of the fuel display will flash. Refuel immediately.
⑤	Speed Limitation (if equipped)	This vehicle may be equipped with a maximum speed limitation function. This would be displayed on the screen as “LIM” followed by the speed. “LIM 30” for example.

The rider information center is located in the instrument cluster. All segments will light up for one second at start-up.

If the instrument cluster fails to illuminate, a battery over-voltage may have occurred and the instrument cluster may have shut off to protect the electronic speedometer. If this occurs, your EGIMOTORS dealer, or other qualified person, can provide proper diagnosis.

The information center is set to display standard units of measurement and a 12-hour clock at the factory. To change to metric and/or a 24-hour clock hold the mode button and cycle to the clock menu. Use the directional arrows to change the clock settings.

MODE INFORMATION DISPLAYS

The rider information center contains three areas that display mode information.

① Area 1 Modes	Description
Engine Temperature	Temperature of engine coolant
Vehicle Speed	Speed of vehicle
Tachometer	Engine speed (RPM)
② Area 2 Modes	Description
Odometer	The odometer records and displays the distance traveled by the vehicle.
Trip Meters (T1/T2)	A trip meter records the distance traveled by the vehicle if reset before each trip. To reset, see page 53.
Engine Hours	Total hours of engine operation since manufacture

Service Hours	A flashing wrench symbol indicates that the preset service interval has been reached. To reset, see page 53.
Trip Time	Time length of vehicle operation since mode was last reset
③ Area 3 Modes	Description
Clock	The clock displays time in a 12-hour or 24-hour format. To reset, see page 52.

ACCESSING MENUS AND OPTIONS

GAUGE SETTINGS MENU

Press and release the MODE button to cycle through the Area 1 modes until the desired default mode displays. See the Mode Information Displays section for details.

Press and hold the MODE button to enter the settings menu.

The OPTIONS screen will display for a few seconds.

1. Press and release either toggle button to cycle to the desired option.

2. Press MODE to select the option.

3. Press either toggle button to cycle to the desired setting.

4. Press MODE to save and exit to the settings menu.

5. Press and hold the MODE button to exit the settings menu.

BACKLIGHT COLOR

The information center backlight can be set to either blue or red.

1. Press and hold the MODE button to enter the settings menu.

2. Press either toggle button to cycle to the “BL COLOR” option. Press MODE to select.

3. Press either toggle button to cycle to the desired setting.

4. Press MODE to save and exit to the settings menu,

BACKLIGHT BRIGHTNESS

1. Press and hold the MODE button to enter the settings menu.

2. Press either toggle button to cycle to the “BL LEVEL” option. Press MODE to select.

3. Press “UP” button to increase brightness. Press “DOWN” button to decrease brightness.

4. Press MODE to select and exit to the settings menu.

CLOCK

The clock must be reset any time the battery has been disconnected or discharged.

1. Press and hold the MODE button to enter the settings menu.

2. Press either toggle button to cycle to the “CLOCK” option. Press MODE to select.

3. Press either toggle button to cycle to the desired setting (12H or 24H). Press MODE to select.

4. Press either toggle button to change each segment of the clock. Press MODE to accept a change and advance to the next segment.

DISPLAY UNITS (STANDARD/METRIC)

1. Press and hold the MODE button to enter the settings menu.

2. Press either toggle button to cycle to the desired “UNITS” option (distance, temperature or volume). Press MODE to select.

3. Press either toggle button to cycle to the desired setting.

4. Press MODE to save and exit to the settings menu.

TRIP METER

Use a trip meter to track the distance traveled during a specific trip or period of time. Reset the meter to zero before traveling.

1. Press either toggle button to cycle to the desired trip meter option (T1 or T2).

2. Press and hold either toggle button until the meter resets to zero.

TRIP TIME

Use a trip time meter to track the travel time during a specific trip. Reset the meter to zero before traveling.

1. Press either toggle button to cycle to the trip time option (TT).

2. Press and hold either toggle button until the meter resets to zero.

PROGRAMMABLE SERVICE INTERVAL

The service interval counter is programmed to 25 hours at the factory. As hours of engine operation increase, the counter decreases. The wrench icon will flash for about 10 seconds when the counter reaches zero (0), and each time the key is turned on thereafter, until the counter is reset.

When this feature is enabled, it provides a convenient reminder to perform routine maintenance. Refer to the Periodic Maintenance Chart for recommended service intervals.

Use the following procedure to reset or change the service interval.

1. Press and hold the MODE button to enter the settings menu.

2. Press either toggle button to cycle to the “Service Hours” option. Press MODE to select.

3. Press MODE to reset the existing value and exit, or press either toggle button to change the value. Press MODE to save and exit to the settings menu.

The hour glass is shown in two modes - Service and Engine Hours. This indicates the time in hours of each mode. The hour glass will also flash with the wrench if service is due.

SPEED LIMITING

ENABLE SPEED LIMITING

1. Press and hold the MODE button to enter the Options menu.

2. Toggle the Up/Down buttons to find the SPD LMT option. Press the MODE button to enter the menu.

3. Enter PIN. If you don’t have a PIN set, review the PIN Activated Security System (P.A.S.S) topic.

4. Toggle the Up/Down buttons to turn speed limiting to ON.

5. Press the mode button again to return back to the options screen.

Once the speed limiting is set to ON, the SET SPEED option will appear.

6. Press the MODE button to enter the SET SPEED setting.

7. Re-enter the vehicle PIN. Max vehicle speed will then be displayed.

8. Press the MODE button again, then toggle the Up/Down buttons to increase/decrease Max Speed.

9. When the desired Max Speed displays, press the MODE button to set the Max Speed.

The vehicle speed can be adjusted from 26–100km/h in 3 km/h increments.

10. To exit the Menu, the user can do any of the following:

• Select Exit Menu function from the Options menu.

• Hold MODE button and exit out of the Options menu.

Unless vehicle speed is set lower by speed limiting, Low Gear has a maximum speed limit of 46km/h.

• Refrain from pressing any button for 10 seconds, which will exit out of the Options menu

DISABLE SPEED LIMITING

1. Press and hold the MODE button to enter the Options menu.

2. Toggle the Up/Down buttons to find the SPD LMT option. Press the MODE button to enter the menu.

3. Enter PIN. If you don’t have a PIN set, review the PIN Activated Security System (P.A.S.S) topic.

4. Press the mode button again to return back to the options screen.

Once the speed limiting is set to OFF, the SET SPEED option will disappear.

5. Toggle the Up/Down buttons to turn speed limiting to OFF.

6. Press the mode button again to return back to the options screen.

7. To exit the Menu, the user can do any of the following:

• Select Exit Menu function from the Options menu.

• Hold MODE button and exit out of the Options menu.

• Refrain from pressing any button for 10 seconds, which will exit out of the Options menu

Speed limiting applies to both forward and reverse.

ENGINE ERROR CODES

The error screen displays only when the CHECK ENGINE indicator is on or when it goes on and off during one ignition cycle. Error codes are not stored. When the key is turned OFF, the code and message is lost, but will reappear if the fault reoccurs after restarting the engine.

If the CHECK ENGINE lamp or the EPS lamp illuminates, retrieve the active error codes from the display.

① Failure Mode Indicator (FMI)

②Suspect Parameter Number (SPN)

③ Code Count

1. Press and hold the MODE button to enter the settings menu.

2. Press either toggle button to cycle to the “DIAGCODE” option. Press MODE to select.

3. More than one diagnostic code may be present. Press the toggle UP button to see if more codes are present. Press MODE to select a code.

If the displayed code is an engine fault code, the CHECK ENGINE lamp will blink. If the displayed code is an EPS fault code, the EPS lamp will blink.

4. Record the three (3) numbers displayed.

5. Press MODE to exit to the settings menu.

RIDE COMMAND DISPLAY (IF EQUIPPED)

BEFORE YOU RIDE

Before riding with your new display, do the following:

• Read this section and the Ride Command User Guide in their entirety.

• Familiarize yourself with the features and operations of the display while the vehicle is stationary.

• Download the Polaris RIDE COMMAND App from the Apple® App Store® or Google Play® store and create your personalized account.

• Check your display to ensure you have the appropriate maps and trails visible for your area. To change or update maps/trails see page 85.

• Check for www.egimotors.it for the latest updates to the owner’s manual.

Using the display for an extended period of time while the vehicle’s engine is off can drain the battery.

Trails change often, and the trail data file is only considered valid for 90 days after the release date. Please keep your trail data up to date. Download the latest trails at https://ridecommand.polaris.com/display

DEVICE OPERATING REQUIREMENTS

Phone functionality is dependent on the capabilities of your cell phone.

Some cell phones or operating systems will not work as shown in this manual.

OVERVIEW

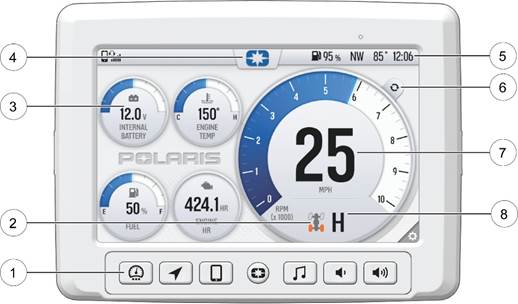

① Ride Command Buttons

②Driveline Mode

③ Widgets

④ Settings

⑤ Icon Bar

⑥ Gauge View Mode

⑦ Speedometer/Tachometer

⑧ Gear Status

RIDE COMMAND BUTTONS

BUTTON	DESCRIPTION	FUNCTION
	Menu Button	Press the Menu button to access the settings. To reboot the display, press and hold for 5 seconds.
	Gauge Screen Button	Press the Gauge Screen button to select from available screens.

BUTTON	DESCRIPTION	FUNCTION
	Map Button	Press the Map button to access the map, manage your rides and waypoints, and to see your friends on the map with Group Ride.
	Phone Button	Press the Phone button to access your Bluetooth® connected phone, including recent calls, contacts, dialer, and messages.
	Audio Button	Press the Audio button to access the Radio, Weather, USB, and connected Bluetooth® music interface
	Volume Decrease Button	Press the Volume Decrease button to decrease the volume. Press and hold to mute volume.
	Volume Increase Button	Press the Volume Increase button to increase the volume.

DRIVELINE MODE

INDICATOR	DESCRIPTION	FUNCTION
	2WD	When the switch is on 2X4, the vehicle is in two-wheel drive at all times.
	AWD	When in All-Wheel Drive, the demand drive unit will automatically engage any time the rear wheels lose traction. When the rear wheels regain traction, the demand drive unit will automatically disengage. There is no limit to the length of time the vehicle may remain in 4X4. The vehicle automatically engages 4X4 when operating in reverse if the switch is set to 4X4 position.
	Turf Mode (if equipped)	When operating in TURF mode, the inside rear wheel will rotate independently from the outside wheel during turns. Operate in TURF mode only as needed to protect smooth, level surfaces from tire damage. DO NOT operate in TURF mode when climbing or descending hills, when side-hilling, or when operating on uneven, loose, or slippery terrain such as sand, gravel, ice, snow, obstacles, and water crossings. Always operate in AWD on these types of terrain.

GAUGE SCREENS

Press the Gauge Screen button to toggle between gauge screens. The display comes loaded with two different gauge screens. Additional gauge screens can be added or deleted.

Each gauge screen is customizable and can be set up in the following configurations:

• Four round widgets

• Two round widgets and a list of three data values

• A list of five data values

To customize your gauge screens, press the gear icon located in the lower right corner of the display.

SETTINGS

From the setting menu you can view vehicle information, manage Bluetooth® devices, update display software, and more.

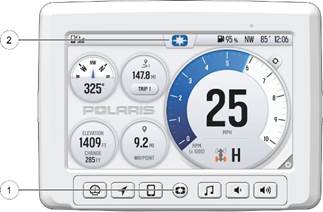

To access the Setting menu, press the Menu button ①.

You can also navigate to the settings menu by pressing the logo at the top of the display screen ②. This will open the Control Panel.

From the Control Panel, select the settings tab, then press the All Settings button located in the lower right corner of the display screen.

GAUGE VIEW MODE

Press ① to toggle between the two available gauge view modes, Analog and Digital.

While in the digital gauge view mode, press ② to invert the MPH and RPM units.

DISPLAY MODE

From the Control tab e, select the display mode from the available options y. The display mode can be set to Day, Night, or AUTO mode.

Day Mode Night Mode

ICON BAR

ICON	DESCRIPTION	FUNCTION
①	Headset	Displays icon if headset is connected
②	Signal Strength	Displays current cell signal strength
③	Wireless Internet Signal Strength (if equipped)	Displays current wireless internet signal strength (if equipped)
④	Fuel Level	Displays current fuel capacity percentage
⑤	Vehicle Direction	Displays vehicle direction
⑥	Ambient Temperature	Displays ambient temperature
⑦	Clock	Displays current time

Before updating the display, always export your existing rides and waypoints to a USB drive to avoid losing them.

UPDATE SOFTWARE

To update the software, do the following:

DOWNLOAD SOFTWARE ONTO YOUR PERSONAL COMPUTER

1. Go to ridecommand.polaris.com/display.

2. Log into your account, or create a new account.

3. Using the Vehicle Identification Number (VIN), add your new EGIMOTORS vehicle to your Garage.

4. Locate and download the latest software to a USB flash drive (8+ GB).

UPLOAD SOFTWARE ON YOUR VEHICLE

1. Connect the USB flash drive to the USB cable and power up your vehicle.

2. On the RIDE COMMAND display, select the Settings menu on your display by pressing the POLARIS icon at the top of the screen.

3. Select General Settings, then Update Software.

4. Select the file you wish to load (use date listed in the file name to determine most recent file).

5. Select Yes to restart display (restart required).

ERROR MESSAGES

If an error occurs while updating your software, perform one or all of the following actions to resolve the issue:

1. Remove and reconnect the USB flash drive securely.

2. Make sure the display files are not inside a folder on the flash drive.

3. Make sure only display files are on the flash drive. Remove any other files if necessary.

4. Try using a different USB flash drive.

UPDATE MAPS

To update the maps on your display, do the following:

1. Go to ridecommand.polaris.com/display and download the map update to a USB flash drive.

2. Insert USB flash drive into the USB port on your vehicle.

3. Press the Update maps in the General Settings.

4. Select the file you want to install by pressing the corresponding down arrow icon.

5. This will update the display’s map which will automatically restart the display once the update is complete. Do not remove the USB flash drive until the display has fully restarted.

USB HARDWARE

SOFTWARE UPDATES

For software update, EGIMOTORS recommends using a SanDisk® or similar USB flash drive with a minimum of 4GB in available memory, formatted using the FAT32 or exFAT® file systems. For best results remove all files from the flash drive before starting the update process.

MAP UPDATES

For Map updates, a 32GB USB drive is required (USB 3.0 drive is highly recommended) USB drive must be formatted to exFAT® before copying the map file onto it.

TRAIL UPDATES

For Trail updates, a 4GB drive formatted to FAT32 can be used.

Speed limit set points are available from 26–100km/h in 3km/h increments.

SPEED LIMITING — RIDE COMMAND MODELS ONLY

ENABLE SPEED LIMITING

1. Access the settings menu by pressing the Menu button.

2. Press All Settings.

3. Select Vehicle from the left toolbar.

4. Select Speed Limit.

5. If this your first time activating Speed Limiting, you will be prompted to enter a new passcode. Enter and verify new passcode.

Please record your passcode.

6. Turn on the Max Speed Limit.

7. Set the Speed Limit by 3km/h increments

DISABLE SPEED LIMITING

1. Access the settings menu by pressing the Menu button.

2. Press All Settings.

3. Select Vehicle from the left toolbar.

4. Select Speed Limit.

5. Enter the passcode and press Enter.

6. Turn off the Max Speed Limit.

OPERATION

Failure to operate the vehicle properly can result in a collision, loss of control, accident or rollover, which may result in serious injury or death. Read and understand all safety warnings outlined in the safety section of this owner’s manual.

IMPORTANT INFORMATION

VEHICLE BREAK-IN PERIOD

The break-in period for your new vehicle is the first 25 hours of operation, or the time it takes to use the first 2 full tanks of gasoline. No single action on your part is as important as a proper break-in period. Careful treatment of a new engine will result in more efficient performance and longer life for the engine. Perform the following procedures carefully.

Excessive heat build-up during the first 3 hours of operation will damage close-fitted engine parts and drive components. Do not operate at full throttle or high speeds during the first 3 hours of use.

ENGINE AND DRIVETRAIN BREAK-IN

The break-in period for your new vehicle is the first 25 hours of operation, or the time it takes to use the first two full tanks of gasoline. No single action on your part is as important as a proper break-in period. Careful treatment of a new engine will result in more efficient performance and longer life for the engine.

Perform the following procedures carefully.

Excessive heat build-up during the first three hours of operation will damage close-fitted engine parts and drive components. Do not operate at full throttle or high speeds during the first 3 hours of use.

1. Fill the fuel tank with clean, fresh fuel. See the Refueling section for details. Always exercise extreme caution whenever handling gasoline.

2. Check the oil level. See the Oil Check section for details. Add the recommended oil as needed to maintain the oil level in the safe operating range.

3. Complete the New Operator driving procedures..

4. Avoid aggressive use of the brakes.

5. Vary throttle positions. Do not operate at sustained idle.

6. Carry only light loads.

7. Perform regular checks on fluid levels, controls and areas outlined on the daily pre-ride inspection checklist.

8. During the break-in period, change both the oil and the filter at 25 hours.

9. Check fluid levels of transmission and all gearcases after the first 25 hours of operation and every 200 hours thereafter.

BRAKE SYSTEM BREAK-IN

Apply only moderate braking force for the first 50 stops. Aggressive or overly forceful braking when the brake system is new could damage brake pads and rotors.

PVT BREAK-IN (CLUTCHES/BELT)

Always break in the clutches and drive belt of new vehicles, as well as after a belt replacement.

A proper break-in of the clutches and drive belt will ensure a longer life and better performance. Break in the clutches and belt by operating at slower speeds during the break-in period as recommended. Pull only light loads. Avoid aggressive acceleration and high speed operation during the break-in period.

If a belt fails, always clean any debris from the duct, PVT intake, outlet duct, and the clutch/ engine compartments when replacing the belt.

STARTING THE ENGINE

1. Position the vehicle on a level surface outdoors or in a well-ventilated area.

2. Sit in the driver's seat and fasten the seat belt. Secure the cab doors (if equipped).

3. Place the transmission in PARK.

4. Apply the brakes. Do not press the throttle pedal while starting the engine.

5. Turn the ignition key past the ON/RUN position to START. Engage the starter for a maximum of five seconds. Release the key when the engine starts.

6. If the engine does not start within five seconds, return the ignition switch to the OFF position and wait five seconds. Repeat steps 5 and 6 until the engine starts.

7. Vary the engine RPM slightly with the throttle to aid in warm up until the engine idles smoothly.

Operating the vehicle immediately after starting could cause engine damage. Allow the engine to warm up for several minutes before operating the vehicle.

USING LOW GEAR

Low gear is the primary driving range for the RANGER. High gear is intended for use on hard-packed surfaces with light loads. Whenever the vehicle is left unattended, always place the transmission in PARK.

Always shift into low gear for any of the following conditions.

• Operating in rough terrain or over obstacles

• Loading the vehicle onto a trailer

• Towing heavy loads

• Driving slowly - under 16 km/h

• Climbing hills

COLD WEATHER OPERATION

If the vehicle is used year-round, check the oil level frequently. A rising oil level could indicate the accumulation of contaminates such as water or excess fuel in the bottom of the crankcase. Water in the bottom of the crankcase can lead to engine damage and must be drained. Water accumulation increases as outside temperature decreases.

REFUELING

The fuel tank filler cap is located on the left side of the vehicle near the driver seat.

The fuel symbol and the last fuel bar on the Instrument Cluster will blink when the fuel level reaches 1/8th tank. There will be approximately 8l of fuel remaining. Refuel as soon as possible. Do not allow the vehicle to run out of fuel.

To refuel:

1. Place the transmission into PARK on a level surface.

2. Turn off the engine.

3. Make sure no one is inside the vehicle.

4. Fill with fuel, leaving the tank neck empty.

5. Securely close fuel cap.

Gasoline can expand while inside the tank. To avoid fires and explosions, do not overfill the tank. Allow room for gasoline to expand inside the tank by leaving the tank neck empty.

• Use only 87 octane (or higher) unleaded fuel (minimum pump octane number of 87 R+M/2)

• Do not use any fuel lower than 87 octane.

• Do not fuel containing more than 10% ethanol (including E85)

Damage to the fuel pump will occur if the vehicle is operated with an empty fuel tank. Do not allow the vehicle to run out of fuel. Always refuel when the level is low.

Prolonged exposure to petroleum based products may damage paint. Always protect painted surfaces when handling fuel.

Operating with obstructed fuel systems will result in serious engine damage. Perform maintenance as recommended.

FUEL RECOMMENDATION

Compatible fuel types: E5, E10

Octane Rating

EGIMOTORS recommends a minimum of 87 Octane (R+M/2) rated gasoline. Using lower octane gasoline could result in engine damage.

Ethanol Content

EGIMOTORS recommends gasoline containing up to 10% ethanol (E10). Higher levels of ethanol (ex. E15 and E85) may result in engine damage.

Seasonal Blends

EGIMOTORS recommends using gasoline that is purchased during the season the vehicle is being used, especially summer vs. winter. Between seasons, refineries typically change the gasoline blend to avoid temperature induced engine performance issues. Winter blend gasoline improves engine starting in cold weather and summer blend gasoline helps prevent vapor lock issues in hot weather.

STOPPING THE ENGINE

1. Release the throttle pedal completely and brake to a complete stop.

2. Place the transmission in PARK.

3. Turn the key to the OFF position.

4. Slowly release the brake pedal and make sure the transmission is in PARK before exiting the vehicle.

A rolling vehicle can cause serious injury. Always place the transmission in PARK before stopping the engine.

BRAKING

When the throttle pedal is released completely and engine speed slows to near idle, the vehicle has no engine braking.

1. Release the throttle pedal completely.

2. Press on the brake pedal evenly and firmly.

3. Practice starting and stopping (using the brakes) until you're familiar with the controls.

EMERGENCY BRAKING

A secondary brake pedal (red color pedal) is available in case of emergency (breakage of the main one).

Vehicle rollaway can cause serious injury or death. Even when stationary, the vehicle may move whenever the gear selector is not in the PARK (P) position or when the brakes are not applied. Always shift to PARK (P) when turning off the engine or leaving the vehicle. Use extra care, when leaving the vehicle on an incline is unavoidable. If leaving the vehicle unattended on a hill, block the rear wheels on the downhill side and keep children, pets and others away from the gear selector.

STOPPING AND PARKING THE VEHICLE

1. Stop the vehicle on a level surface. When parking inside a garage or other structure, be sure that the structure is well ventilated and that the vehicle is not close to any source of flame or sparks, including any appliance with pilot lights.

2. Place the transmission in PARK.

3. Turn the engine off.

4. Engage the parking brake (if equipped).

5. Slowly release the brake pedal and make sure the transmission is in PARK before exiting the vehicle.

6. Remove the ignition key to prevent unauthorized use.

Before shifting into reverse, use extra care to make sure the area is clear of people or obstacles. When it’s safe to proceed, back slowly.

DRIVING IN REVERSE

Follow these precautions when operating in reverse:

1. Always check for obstacles or people behind the vehicle. Always inspect left and right fields of vision before backing.

2. Avoid backing downhill.

3. Apply the throttle lightly. Never open the throttle suddenly.

4. Back slowly.

5. Apply the brakes lightly for stopping.

6. Avoid turning at sharp angles.

HAULING CARGO

Overloading the vehicle or carrying or towing cargo improperly can alter vehicle handling and may cause loss of control or brake instability. Always follow these precautions when hauling cargo:

Never exceed the stated load capacity for this vehicle.

REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING WHEN HAULING CARGO.

NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When

determining the weight you are adding to the vehicle, include the weight of the operator, passenger, accessories, loads in the rack or box and the load on the trailer tongue. The combined weight of these items must not exceed the maximum weight capacity.

Always load the cargo box with the load as far forward and as low as possible. When operating over rough or hilly terrain, reduce speed and cargo to maintain stable driving conditions.

Always operate the vehicle with extreme care when hauling or towing loads.

Slow down and drive in the lowest gear available.

SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create unstable operating conditions, which could result in loss of control of the vehicle.

OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When

handling off-centered loads that cannot be centered, securely fasten the load and operate with extra caution.

Always attach the tow load to the hitch point designated for your vehicle. HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use

extreme caution when applying brakes with a loaded vehicle. Avoid terrain or

situations that may require backing downhill.

USE EXTREME CAUTION when operating with loads that extend over the rack sides. Stability and maneuverability may be adversely affected, causing vehicle rollover.

DO NOT TRAVEL FASTER THAN THE RECOMMENDED SPEEDS. Vehicle

should never exceed 16 km/h while towing a load on a level grass surface. Vehicle speed should never exceed 8 km/h when towing loads in rough terrain, while cornering, or while ascending or descending a hill.

Carrying a passenger in the cargo box could result in a fall from the vehicle or contact with moving components. Never allow a passenger to ride in the cargo box.

Your vehicle has been designed to carry or tow specific capacities. Reduce speed and allow a greater distance for braking when carrying cargo.

Loads should be centered on the vehicle and carried as low as possible in the box. For stability on rough or hilly terrain, reduce both speed and cargo.

Exercise caution if the cargo load extends over the side of the box.

Always read and understand the load distribution warnings listed on warning labels and in this manual. Never exceed the maximum capacities specified for your vehicle.

BELT LIFE

To extend belt life, use low gear when hauling or towing heavy cargo.

Towing improperly can alter vehicle handling and may cause loss of control or brake instability.

TOWING LOADS

Always follow these precautions when towing:

1. Never load more than 75 kg tongue weight on the towing bracket.

2. When towing a disabled vehicle, place the disabled vehicle’s transmission in neutral. Do not operate the vehicle faster than 16 km/h when towing.

3. Towing a trailer increases braking distance. Do not operate the vehicle faster than 16 km/h when towing.

4. Do not tow more than the recommended weight for the vehicle.

5. Attach a trailer to the trailer hitch bracket only. Do not attach a trailer to any other location, which could result in loss of control of the vehicle.

6. The total load (operator, accessories, cargo and weight on hitch) must not exceed the maximum weight capacity of the vehicle.

TOTAL TOWED LOAD WEIGHT (LEVEL GROUND)	TOTAL TOWED LOAD WEIGHT (15° GRADE)	TOTAL HITCH VERTICAL WEIGHT	MAXIMUM TOWING SPEED
750kg unbraked 1000 kg inertia-braked	300 kg	75kg	16 km/h

DUMPING THE CARGO BOX

To dump the cargo box, do the following:

1. Select a level site to dump the cargo box. Do not attempt to dump or unload the vehicle while parked on an incline.

2. Apply the brakes.

3. Shift the gear selector to the Park position.

4. Turn the key to the off position.

5. Dismount vehicle.

6. Ensure that the cargo is positioned evenly or toward the front of the cargo box.

7. Open the tailgate.

8. Stand clear and pull up on the cargo box release lever.

9. Lift the front of the cargo box to dump the cargo.

10. Lower the cargo box and push down securely to latch.

11. Close the tailgate.

Operating the vehicle while the cargo box is raised could result in severe injury. The box could close unexpectedly and cause injury to the driver or passenger. The rear tires will also catch the rear of a raised box, damaging the vehicle and creating hazardous driving conditions. Never operate this vehicle with the cargo box in the raised position.

ALL WHEEL DRIVE/REAR DIFFERENTIAL SYSTEM

If your model is equipped with a lockable differential, you can choose to operate with an open differential or a closed differential.

Switching to AWD while the rear wheels are spinning may cause severe drive shaft and clutch damage. Always switch to AWD while the rear wheels have traction or are at rest.

ENGAGING AWD

① All-Wheel Drive (AWD)

② Differential Lock

③ Differential Unlock (Turf Mode)

Press the top of the driveline mode switch to engage All Wheel Drive (AWD). The 4X4 indicator illuminates in the rider information center to indicate that the vehicle is in AWD. When the AWD switch is on, the front gearcase will automatically engage any time the rear wheels lose traction. When the rear wheels regain traction, the front gearcase will automatically disengage. There is no limit to the length of time the vehicle may remain in AWD. Initially, the vehicle's electronic system will not enable the AWD until the engine RPM is below 3100. Once enabled, the AWD remains enabled until the AWD switch is turned off. If the switch is turned off while the front gearcase is moving, it will not disengage until the rear wheels regain traction.

Engage the AWD before getting into conditions where front wheel drive may be needed. If the rear wheels are spinning, release the throttle before switching to AWD.

DISENGAGING AWD

Move the AWD switch to the center or bottom position to disengage AWD. If the switch is turned off while the front hubs are driving, they will not release until the rear wheels regain traction.

In some situations, the front gearcase may remain locked after turning the AWD switch off. If this occurs, you may notice increased steering effort and some vehicle speed restriction. Perform the following procedure to unlock the front gearcase.

To disengage AWD, do the following:

1. Stop the vehicle.

2. Operate in reverse for at least 3 m.

3. Stop completely.

4. Shift into low gear and drive forward.

5. If the front gearcase remains locked after following these instructions, see your dealer or other qualified service person for service.

LOCKING THE DIFFERENTIAL

Move the rocker switch to the center position to lock the differential and operate in two wheel drive (2WD). Locking the differential in slippery or low traction conditions helps improve traction. When the rear differential is locked, both rear wheels rotate at the same speed.

UNLOCKING THE DIFFERENTIAL (TURF MODE)

When operating in TURF mode, the inside rear wheel will rotate independently from the outside wheel during turns. Operate in TURF mode only as needed to protect smooth, level surfaces from tire damage. DO NOT operate in TURF mode when climbing or descending hills, when side-hilling, or when operating on uneven, loose, or slippery terrain such as sand, gravel, ice, snow, obstacles, and water crossings. Always operate in AWD on these types of terrain.

Operating in TURF mode (if equipped) when on sloped, uneven, or loose terrain could cause loss of control and result in serious injury or death. One rear wheel may slip and lose traction or may lift up and grab when it touches the ground again.

Press the bottom of the switch to unlock the differential and allow the rear drive wheels to operate independently (1WD). When the rear differential is unlocked, the rear wheels can rotate at different speeds. Unlock the differential to make maneuvering easier and minimize damage to turf.

Damage to the differential can occur if it is engaged while the vehicle is traveling at high speeds or while the rear wheels are spinning. Slow the vehicle to nearly stopped before engaging the differential.

Never operate in TURF mode (if equipped) while operating on a hill or other irregular terrain. Always move the AWD switch to AWD before ascending or descending a hill.

EMISSION CONTROL SYSTEMS

NOISE EMISSION CONTROL SYSTEM

Do not modify the engine, intake or exhaust components, as doing so may affect compliance with noise level requirements.

CRANKCASE EMISSION CONTROL SYSTEM

This engine is equipped with a closed crankcase system. Blow-by gases are forced back to the combustion chamber by the intake system. All exhaust gases exit through the exhaust system.

EXHAUST EMISSION CONTROL SYSTEM

Exhaust emissions are controlled by engine design. An electronic fuel injection (EFI) system controls fuel delivery. The engine and EFI components are set at the factory for optimal performance and are not adjustable.

The emissions label is located on the inside of the lower left frame tube (below driver’s foot area).

ELECTROMAGNETIC INTERFERENCE

This vehicle complies with the EMC requirements of UN ECE Regulation 10. Non-ionizing Radiation: This vehicle emits some electromagnetic energy.

People with active or non-active implantable medical devices (such as heart

monitoring or controlling devices) should review the limitations of their device and the applicable electromagnetic standards and directives that apply to this vehicle.

MAINTENANCE

OVERVIEW

Any qualified repair shop or person may maintain, replace or repair the emission control devices or systems on your vehicle. An authorized EGIMOTORS dealer can perform any service that may be necessary for your vehicle. EGIMOTORS also recommends EGIMOTORS parts for emissions-related service, however equivalent parts can be used.

It is a potential violation of the law if a part supplied by an aftermarket parts manufacturer reduces the effectiveness of the vehicle’s emission controls. Tampering with emission controls is prohibited by law.

Owners are responsible for performing the scheduled maintenance identified in this owner’s manual. Careful periodic maintenance will help keep your vehicle in safe, reliable condition. Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, genuine EGIMOTORS parts are available from your EGIMOTORS dealer. Equivalent parts may be used for emissions-related service.

Record maintenance and service in the Maintenance Log. Service and adjustments are important for proper vehicle operation. If you're not familiar with safe service and adjustment procedures, a qualified dealer can perform these operations. Maintenance intervals in the following chart are based upon average riding conditions and an average vehicle speed of approximately 16km/h. Vehicles subjected to severe use must be inspected and serviced more frequently.

EGIMOTORS MAINTENANCE SCHEDULE

The intervals shown in this table are based on vehicles operated under normal conditions.

Each interval is given in hours and kilometers. Items should be serviced at whichever interval comes first.

Continue to reference the following maintenance schedules at the given intervals as hours and kilometers increase on the vehicle.

Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent immersion in mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.

INITIAL BREAK-IN SERVICE FIRST 25 HOURS / 800 KM

Brake System	Initial fluid level inspection; inspect for fluid leaks; add fluid if needed. Inspect brake pad wear.
Engine Oil and Filter	Change the engine oil and filter.
Front Gearcase Fluid	Initial fluid level inspection.
Transmission Fluid	Initial fluid level inspection; inspect for fluid leaks; add lubricant if needed.
The break-in period consists of the first 25 hours of operation. Careful treatment of a new engine and drive components will result in more efficient performance and longer life for these components. The items outlined in this service interval only need to be performed at the first 25 hours of operation. They do not need to be performed every 25 hours.

Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent immersion in mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.

EVERY 200 HOURS / 3200 KM OR YEARLY

Air Filter	Replace air filter. Ensure proper installation of filter and airbox cover. Inspect ducts and screens; clean as necessary.
Battery	Check terminals; terminals should be tight and free of corrosion. Clean, test, and replace as necessary.
Brake Pad Wear	Inspect; replace as needed.
Cooling System	Fluid level inspection; inspect for fluid leaks; add coolant if needed. Inspect coolant strength seasonally; pressure test system yearly.
Drive Belt	Inspect; replace as needed.
Engine Breather	Inspect; clean as needed.
Engine Oil and Filter	Change the engine oil and filter.
Exhaust Silencer / Pipe	Inspect for leaks or damage.
Front Gearcase Fluid	Change fluid.
Front / Rear Suspension	Lubricate (if applicable).
Fuel System*	Cycle key to pressurize fuel pump; check for leaks at fuel system connections, check for leaks at fill cap.
General Lubrication	Locate all applicable fittings and grease.
Parking Brake (if applicable)*	Inspect and adjust as needed.
Shock Absorbers*	Change shock oil or rebuild (if applicable). Inspect seals and replace as needed.
Spark Arrestor	Clean with non-synthetic brush.
Spark Plugs	Inspect; replace as needed.

EVERY 200 HOURS / 3200 KM OR YEARLY

Suspension Components*	Inspect tie rods, wheel bearings, suspension bushings, and ball joints for loose or worn components; replace as needed. Inspect shock absorbers for leaks or damage.
Transmission Fluid	Change fluid.
Wiring	Inspect for wear, routing, and retention.
* It is recommended to have an authorized EGIMOTORS dealer perform these services.

Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent immersion in mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.

ADDITIONAL MAINTENANCE INTERVALS

Every 400 hours / 6400km	Valve Clearance*	Inspect; adjust as needed.
Every 600 hours / 9700km	Clutches*	Inspect bushings, rollers, wearable parts; clean; replace worn parts. Inspect drive belt.
Every 24 months / 2 years	Brake Fluid	Change fluid.
Every 60 months / 5 years	Coolant	Change fluid.
* It is recommended to have an authorized EGIMOTORS dealer perform these services.

ADDITIONAL MAINTENANCE

Models equipped with high mount intake systems may require additional air filter and clutch service intervals if vehicle is equipped with a front or rear windshield.

ELEVATING THE VEHICLE FOR SERVICE

Improperly jacking or supporting the vehicle can result in the vehicle falling or tipping, which can lead to serious injury or death. When elevating vehicle:

• Move vehicle to a firm level surface.

• Shift to PARK (P).

• Do not leave engine running.

• Prevent the vehicle from moving by chocking the wheels. A chock is a wedge or wheel stop that is designed to keep the vehicle from moving forward or backward and falling off the jack. If jacking the FRONT of the vehicle, then chock front and rear sides of both REAR tires. If jacking the REAR of the vehicle, then chock front and rear sides of both FRONT tires.

• Keep bystanders away and make sure no occupants or cargo are still in the vehicle.

• Use a jack designed for a high ground clearance off-road vehicle (such as the POLARIS Off-Road Utility Jack).

• Follow the jack manufacturer's instructions.

• Do not place any object above or under a jack.

• After lifting vehicle with a jack, never place any part of your body under the vehicle without first properly blocking vehicle using designated support points.

LUBRICATION RECOMMENDATIONS

Check and lubricate all components at the intervals outlined in the EGIMOTORS Maintenance Schedule, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval.

ITEM	LUBE	METHOD
Engine Oil	PS-4 5W-50 4-Cycle Oil	Add to proper level on dipstick. See page 90.
Brake Fluid	DOT 4 Brake Fluid	Maintain level between fill lines. See page 111.
Transmission Oil (Main Gearcase)	AGL Gearcase Lubricant & Transmission Fluid	See page 96.
Demand Drive Fluid (Front Gearcase)	Demand Drive Fluid	See page 96.
Prop Shaft	U-Joint Grease	Locate fittings and grease.

GREASING POINTS

Prop Shaft Greasing Point (Center of Driveshaft) ①

Front Sway Bar Greasing Points ②

Rear Sway Bar Greasing Points ③

ENGINE OIL

Always check and change the oil at the intervals outlined in the Periodic Maintenance Chart. Always use the recommended engine oil. Always change the oil filter whenever changing oil.

Pay special attention to the oil level. A rise in oil level during cold weather can indicate contaminants collecting in the oil sump or crankcase. Change oil immediately if the oil level begins to rise. Monitor the oil level, and if it continues to rise, discontinue use and determine the cause. Your dealer can assist.

Vehicle operation with insufficient, deteriorated, or contaminated engine oil will cause accelerated wear and may result in engine seizure, accident and injury.Always perform the maintenance procedures as outlined in the Periodic Maintenance Chart.

OIL RECOMMENDATIONS

EGIMOTORS recommends the use of POLARIS PS-4 5W-50 4-Cycle Oil or a similar oil. Refer to the Specifications section for capacities.

Oil may need to be changed more frequently if POLARIS PS-4 engine oil is not used. Follow the manufacturer's recommendations for ambient temperature operation. See the Products section for part numbers.

Mixing brands or using a non-recommended oil may cause serious engine damage. Always use the recommended oil. Never substitute or mix oil brands.

OIL CHECK

The oil dipstick is located on the engine. Access the dipstick through either the right or left wheel well (depending on your model).

To check the oil, do the following:

1. Position vehicle on a level surface and place the transmission in PARK.

2. Stop the engine and allow it to cool down before removing the dipstick.

3. Raise the cargo box. Unlock the dipstick lever ①. Remove the dipstick and wipe it dry with a clean cloth.

4. Reinstall the dipstick and push it into place. Do not lock the dipstick.

Make certain the dipstick is inserted all the way into the dipstick tube to keep the depth of the dipstick consistent.

5. Remove the dipstick and check the oil level.

6. Add the recommended oil as necessary to bring the oil level within the SAFE range on dipstick. Do not overfill (see NOTICE below).

A rising oil level between checks during cold weather operation can indicate contaminants such as gas or moisture collecting in the crankcase. If the oil level is over the upper mark, change the oil immediately.

7. With the cargo box raised, add engine oil through the oil fill cap ② located on top of the valve cover, under the cargo box.

8. When finished, reinstall dipstick and lock the lever. Lower the cargo box and secure in position.

ENGINE OIL AND FILTER REPLACEMENT

Always change engine oil and filter at the intervals outlined in the Periodic Maintenance Chart. Always change the oil filter ① whenever changing the engine oil.

The engine oil dipstick is located on the right front side of the engine. The engine oil fill cap is located on top of the valve cover. Access the oil dipstick and oil fill cap by tilting the rear cargo box.

The crankcase drain plug ② is located on the bottom of the crankcase. Access the drain plug through the skid plate access hole located directly under the crankcase.

Always remove all cargo from the cargo box before lifting the box to access the engine.

1. Position vehicle on a level surface and place the transmission in PARK.

2. Stop the engine and allow it to cool down.

3. Clean the area around the crankcase drain plug.

Use caution when performing this procedure. Do not allow hot engine oil to come into contact with skin, as serious burns may result.

4. Place a drain pan under the engine crankcase and remove the drain plug. Allow the oil to drain completely.

5. Remove all cargo from the cargo box.

6. Pull up on the cargo box release lever to tilt the box.

7. Using the Oil Filter Wrench, turn the oil filter ① counter-clockwise to remove it.

8. Using a clean dry cloth, clean the filter sealing surface on the engine crankcase.

9. Lubricate the O-ring on the new oil filter with a film of fresh engine oil. Check to make sure the O-ring is in good condition. Install it to specification.

TORQUE: Oil Filter Turn by hand until filter O-ring contacts sealing surface, then turn an additional 3/4 turn.

10. Replace the sealing washer on drain plug.

The sealing surface on the drain plug should be clean and free of burrs, nicks or scratches.

11. Reinstall the engine crankcase drain plug. Torque drain plug to specification.

TORQUE: Crankcase Drain Plug 16 N⋅m

12. Remove oil fill cap. Fill engine with recommended engine oil.

13. Verify the transmission is still in PARK.

14. Start the engine and allow it to idle for 30 seconds.

15. Stop the engine and inspect for oil leaks. Wait at least 15 seconds before removing the dipstick.

16. Unlock the dipstick lever ③. Remove the dipstick and wipe it dry with a clean cloth.

The dipstick is located on the right side of the vehicle.

17. Reinstall the dipstick and push it into place. Do not lock the dipstick.

Make certain the dipstick is inserted all the way into the dipstick tube to keep the depth of the dipstick consistent.

18. Remove the dipstick and check the oil level.

19. Add the recommended oil as necessary to bring the oil level within the SAFE range on dipstick. Do not overfill.

20. When finished, reinstall the oil fill cap, oil dipstick and lock the lever.

21. Dispose of used oil and filter properly.

GEARCASES

GEARCASE SPECIFICATION CHART

GEARCASE	LUBRICANT	CAPACITY	FILL PLUG TORQUE	DRAIN PLUG/ LEVEL CHECK PLUG TORQUE
Transmission (Main Gearcase)	AGL Gearcase Lubricant & Transmission Fluid	1550 mL	14–19 N·m	14–19 N·m
Demand Drive Unit (Front Gearcase)	Demand Drive Fluid	300–350 mL	11–14 N·m	15 N·m
*If your vehicle is equipped with high mounted intakes: 275 ml

TRANSMISSION (MAIN GEARCASE)

TRANSMISSION OIL CHECK

Always check and change the transmission oil at the intervals outlined in the Periodic Maintenance Chart. Maintain the oil level even with the bottom thread of the fill plug hole.

The fill plug is located on the rear of the gearcase. Maintain the fluid level at the bottom of the fill plug hole.

To check the transmission fluid, do the following:

1. Position the vehicle on a level surface.

2. Remove the fill plug ①.

3. Check the fluid level.

4. Add the recommended fluid to the bottom of the fill plug hole. Do not overfill.

5. Reinstall the fill plug. Torque to specification.

TRANSMISSION OIL CHANGE

The drain plug is located on the bottom of the gearcase. Access the drain plug through the hole in the skid plate.

1. Remove the fill plug ①.

2. Place a drain pan under the drain plug ②.

3. Remove the drain plug. Allow the fluid to drain completely.

4. Clean and reinstall the drain plug. Torque to specification.

5. Add the recommended fluid to the bottom of the fill plug hole. Do not overfill.

6. Reinstall the fill plug. Torque to specification.

7. Check for leaks. Discard used fluid properly.

DEMAND DRIVE (FRONT GEARCASE)

DEMAND DRIVE OIL CHECK

Always check and change the demand drive fluid at the intervals outlined in the Periodic Maintenance Chart. Maintain the oil level even with the bottom thread of the fill plug hole. Refer to the Gearcase Specifications Chart for recommended lubricants, capacities and torque specifications.

The front gearcase fill plug ① is located on the right side of the front gearcase.

1. Position the vehicle on a level surface.

2. Remove the fill plug ①. Check the oil level.

3. Add the recommended oil as needed.

4. Reinstall the fill plug. Torque to specification.

DEMAND DRIVE OIL CHANGE

1. Support the vehicle securely with a jackstand.

2. Remove the front tire on the passenger's side for ease of access (optional).

3. Remove the fill plug.

4. Place a drain pan under the drain plug ② on the bottom right-hand side.

5. Remove the drain plug. Drain the oil.

6. Clean and reinstall the drain plug. Torque to specification.

7. Add the recommended fluid to the bottom of the fill plug hole. Do not overfill.

8. Reinstall the fill plug. Torque to specification.

9. Check for leaks.

10. Discard used oil properly.

SPARK PLUGS

SPARK PLUG RECOMMENDATIONS

Refer to the Specifications section for the recommended spark plug type for your vehicle. Always torque spark plugs to specification.

Using non-recommended spark plugs can result in serious engine damage. Always use EGIMOTORS-recommended spark plugs or their equivalent.

SPARK PLUG GAP/TORQUE

ELECTRODE GAP	NEW OR USED PLUG TORQUE
0.7 – 0.8 mm	12 N·m

SPARK PLUG INSPECTION

Spark plug condition is indicative of engine operation. The spark plug firing end condition should be read after the engine is warmed up and the vehicle is driven at higher speeds. Immediately check the spark plug for correct color.

A hot exhaust system and engine can cause burns. Wear protective gloves when removing a spark plug for inspection.

To inspect the spark plugs, do the following:

1. Lift the cargo box to access the spark plugs.

2. Remove the spark plug cap. Using the spark plug wrench provided in the tool kit, remove the plug by rotating it counter-clockwise.

3. Reverse the procedure for spark plug installation.

4. Torque to specification.

NORMAL PLUG

The normal insulator tip is gray, tan or light brown. There will be few combustion deposits. The electrodes are not burned or eroded. This indicates the proper type and heat range for the engine and the service.

The tip should not be white. A white insulator tip indicates overheating, caused by use of an improper spark plug or incorrect throttle body adjustments.

WET FOULED PLUG

The wet fouled insulator tip is black. A damp oil film covers the firing end. There may be a carbon layer over the entire nose. Generally, the electrodes are not worn. General causes of fouling are excessive oil consumption, use of

non-recommended oil, or poor fuel quality.

COOLING SYSTEM

The engine coolant level is controlled or maintained by the recovery system. The recovery system components are the overflow bottle, radiator filler neck, radiator pressure cap and connecting hose.

As coolant operating temperature increases, the expanding (heated) excess coolant is forced out of the radiator, past the pressure cap, and into the overflow bottle. As engine coolant temperature decreases, the contracting (cooled) coolant is drawn back up from the tank, past the pressure cap, and into the radiator.

Some coolant level drop on new vehicles is normal as the system is purging itself of trapped air. Observe coolant levels and maintain as recommended by adding coolant to the overflow bottle.

ADDING OR CHANGING COOLANT

EGIMOTORS recommends the use of POLARIS Antifreeze 50/50 Premix. This antifreeze is already premixed and ready to use. Do not dilute with water.

To ensure that the coolant maintains its ability to protect the engine, we recommend that the system be completely drained every five (5) years and fresh Antifreeze 50/50 Premix added.

Any time the cooling system has been drained for maintenance or repair, replace the coolant with fresh Antifreeze 50/50 Premix. If the recovery bottle has run dry, the level in the radiator should be inspected. Add coolant as needed.

RADIATOR AND COOLING FAN

Always check and clean the screen and radiator fins at the intervals outlined in the Periodic Maintenance Chart. Do not obstruct or deflect air flow through the radiator by installing unauthorized accessories in front of the radiator or behind the cooling fan. Interference with the radiator air flow can lead to overheating and consequent engine damage.

Washing the vehicle with a high-pressure hose could damage the radiator fins and impair the radiator's effectiveness. Using a high-pressure system is not recommended.

RADIATOR COOLANT LEVEL

Always check and clean the screen and radiator fins at the intervals outlined in the Periodic Maintenance Chart. Do not obstruct or deflect air flow through the radiator by installing unauthorized accessories in front of the radiator or behind the cooling fan. Interference with the radiator air flow can lead to overheating and consequentially, engine damage.

1. Remove the hood.

Escaping steam can cause burns. Never remove the pressure cap while the engine is warm or hot. Always allow the engine to cool before removing the pressure cap.

2. Slowly remove the radiator cap ①.

3. View the coolant level through the opening.

4. Use a funnel and slowly add coolant as needed.

This procedure is required only if the cooling system has been drained for maintenance and/or repair. But if the overflow bottle has run dry, the level in the radiator should also be inspected.

5. Reinstall the pressure cap. Use of a non-standard pressure cap will not allow the recovery system to function properly. Your EGIMOTORS dealer can provide the correct replacement part.

OVERFLOW BOTTLE COOLANT LEVEL

Always check and change the coolant at the intervals outlined in the Periodic Maintenance Chart. Maintain the coolant level between the minimum and maximum marks on the bottle (when the fluid is cool).

1. Position the vehicle on a level surface.

2. Lift the hood. View the coolant level in the overflow bottle ②.

3. If the coolant level is below the safe operating range, lift the hood and locate the overflow bottle lid. Remove the cap and use a funnel to add coolant through the filler opening. Reinstall the cap.

If coolant must be added often, or if the overflow bottle runs completely dry, there may be a leak in the system. Your dealer can inspect the cooling system.

AIR CONDITIONING (IF EQUIPPED)

Only licensed and certified professionals are allowed to check and maintain AC refrigerant levels. Your EGIMOTORS dealer can assist.

FILTER CLEANING

The air conditioning filter is located below the center hood.

1. Remove the two fasteners and remove the filter cover.

2. Clean the filter with low air pressure. Check for damage, replace if damaged.

Washing the vehicle with a high-pressure hose could damage the radiator fins and impair the radiator's effectiveness. Using a high-pressure system is not recommended.

CONDENSER CLEANING

The condenser should be cleaned at the correct service interval as outlined in the Periodic Maintenance Chart. The condenser is located at the front of the vehicle, behind the front grille.

To clean the condenser, do the following:

1. Stop the machine on a flat level surface. Place the gear selector in PARK. Stop the engine and exit the vehicle.

2. Remove the front grille of the vehicle by pushing down on the two grille tabs ① and pull the top of the grille toward the front of the vehicle.

3. Use low pressure air or water to clean the condenser.

4. Reinstall the front grille and ensure it is snapped into place.

Failure to comply with the instructions in this warning can result in severe injury or death. Do not modify any component of the PVT system. Doing so may reduce its strength so that a failure may occur at a high speed. The PVT system has been precision balanced. Any modification will cause the system to be out of balance, creating vibration and additional loads on components.

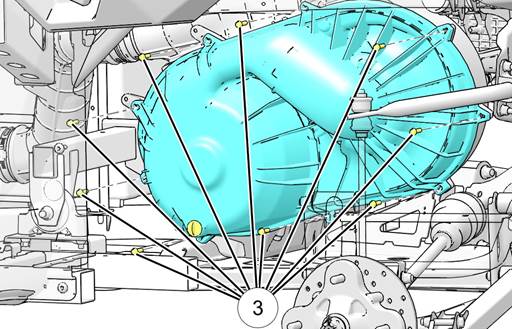

The PVT system rotates at high speeds, creating large amounts of force on clutch components. As the owner, you have the following responsibilities for your own safety and the safety of others:

• Always follow all recommended maintenance procedures. Always look for and remove debris inside and around the clutch and vent system when replacing the belt.

• See your EGIMOTORS dealer or other qualified service person as outlined in the owner's manual.

• This PVT system is intended for use on EGIMOTORS products only. Do not install it in any other product.

• Always make sure the PVT housing is securely in place during operation.

EGIMOTORS VARIABLE TRANSMISSION (PVT) SYSTEM

BELT REMOVAL

If a belt fails, always clean any debris from the clutch air duct and from the clutch and engine compartments when replacing the belt.

Failure to remove ALL debris when replacing the belt could result in vehicle damage, loss of control and severe injury or death.

Inspect the entire clutch outlet duct (including the outlet duct screen) when replacing a drive belt. Remove any debris found in the outlet duct or outlet duct screen.

To remove the belt, do the following:

Removal of left rear wheel or left rear shock is NOT necessary for belt replacement.

1. Remove the nine fasteners ① that retain the outer clutch cover.

2. Pull the clutch cover forward and slide towards the front of the vehicle as shown above.

Use care when lifting clutch cover upwards. Do not damage cover, intake boot, or electrical harness.

3. Rotate the clutch cover back and lift up and over the control arm mounting

4. Pull clutch cover out towards the rear of the vehicle as shown ② .

5. Mark the drive belt direction of rotation so that it can be installed in the same direction.

6. Insert clutch spreader tool ③ into threaded hole on driven clutch as shown and turn clockwise to spread clutch.

Clutch spreader tool part number 2883577 is found in vehicle tool kit.

7. Walk the belt out of the driven clutch and drive clutch. Remove the belt from the vehicle.

BELT INSPECTION

To inspect the drive belt, do the following:

1. Inspect belt for hour-glassing (extreme circular wear in at least one spot and on both sides of the belt). Hour glassing occurs when the drive train does not move and the drive clutch engages the belt.

2. Inspect belt for loose cords, missing cogs, cracks, abrasions, thin spots, or excessive wear. Compare belt measurements with a new drive belt. Replace if necessary.

3. Belts with thin spots, burn marks, etc., should be replaced to eliminate noise, vibration, or erratic PVT operation.

Be sure to install belt in the same direction as it was removed.

BELT INSTALLATION

1. With the clutch spreader tool ① installed, loop the belt over the drive clutch and over the driven clutch.

2. Rotate the driven clutch and walk the belt into the clutch.

3. Remove the clutch spreader tool from driven clutch.

4. Rotate / spin the driven clutch and belt approximately 5-7 times to properly seat the belt in the driven clutch.

5. Install the clutch cover into wheel well as shown above.

6. Rotate clutch cover over A-Arm ② as shown below. Use care not to damage intake boots or electrical harness.

7. Pull clutch cover backwards and align with bolt holes on inner clutch cover as shown below .

8. Install and torque the outer clutch cover bolts ③ to specification .

TORQUE: PVT Outer Cover Fasteners: 4 N·m

POLARIS VARIABLE TRANSMISSION (PVT) DRYING

There may be some instances when water is ingested into the PVT system. Use the following instructions to dry it out before operating:

1. Position the vehicle on a level surface.

2. Remove the red drain plug on the outer clutch cover. Allow the water to drain completely. Reinstall the drain plug.

3. Place the transmission in PARK.

4. Start the engine.

5. Apply varying throttle for 10-15 seconds to expel the moisture and air-dry the belt and clutches. Do not hold the throttle wide open for more than five (5) seconds.

6. Allow the engine RPM to settle to idle speed. Apply the brakes. Shift the transmission to the lowest available range.

7. Test for belt slippage. If the belt slips, repeat the process.

8. Your vehicle requires service as soon as possible. Your EGIMOTORS dealer can assist.

If your vehicle becomes immersed, major engine damage can result if the machine is not thoroughly inspected. Take the vehicle in for service before starting the engine. Your EGIMOTORS dealer can provide this service.

VEHICLE IMMERSION

If it's impossible to take your RANGER to a dealer before starting it, follow the steps outlined below:

1. Move the vehicle to dry land or at the very least, to water below the floorboard (or to water below seat base level if your vehicle is equipped with high mounted intakes).

2. Dry any water present in the air box. Filter replacement is required if water is present.

3. Remove the spark plugs. Turn the engine over several times using the electric start.

4. Dry the spark plugs and reinstall, or replace with new plugs.

5. Attempt to start the engine. If necessary, repeat the drying procedure.

6. Take the vehicle in for service as soon as possible, whether you succeed in starting it or not. Your EGIMOTORS dealer can provide the required service.

7. If water has been ingested into the PVT follow the procedure for drying.

FILTER SYSTEMS

AIR FILTER REPLACEMENT

Inspect the air filter at the intervals outlined in the Periodic Maintenance Chart. In extremely dusty conditions, air filter replacement will be required more often.

1. Tilt the rear cargo box to access the airbox.

2. Release the five airbox cover latches and lift the cover up and out to access the air filter element.

3. Remove the air filter element ①.

4. Inspect the airbox for oil or water deposits. Wipe away any deposits with a clean shop towel.

If the filter has been soaked with fuel or oil it must be replaced. DO NOT attempt to clean the air filter.

5. Place the air filter into the airbox. Reposition the lower airbox cover and install the three retaining latches.

Make sure the hinge pins are properly seated when reassembling the airbox

• Never operate the vehicle without the spark arrester.

• Remove any combustible materials from the area.

• Failure to heed the following warnings while servicing the spark arrestor could result in serious injury or death.

• Never run the engine in an enclosed area. Exhaust contains poisonous carbon monoxide gas that can cause loss of consciousness or death in a very short time.

• Do NOT perform service on the spark arrester while the system is HOT. Exhaust system temperatures can reach extreme temperatures. Allow components to cool sufficiently before proceeding.

• Do not stand behind or in front of the vehicle while purging the exhaust system.

• Never go under the vehicle while it is inclined.

• Wear eye protection and gloves while servicing.

SPARK ARRESTER

Use the following procedure to periodically purge accumulated carbon from the exhaust pipe.

1. Turn off engine and allow exhaust to cool sufficiently.

2. Remove the spark arrester from the tailpipe of the muffler.

3. Remove any debris from spark arrester and the tailpipe.

4. Inspect spark arrester for holes in mesh screen. Replace as needed.

5. Replace spark arrester and torque bolt to specification.

TORQUE: Spark Arrester Bolt 14 N·m

BRAKES

The front and rear brakes are hydraulic disc type brakes. Press down on the brake pedal to engage the brakes.

BRAKE FLUID

After opening a bottle of brake fluid, always discard any unused portion. Never store or use a partial bottle. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture from the air. The moisture causes the boiling temperature of the brake fluid to drop, which can lead to early brake fade and the possibility of accident or severe injury.

Inspect the brake system routinely. Inspect the level of the brake fluid before each operation.

Change the brake fluid every two years and any time the fluid becomes contaminated, the fluid level is below the minimum, or if the type and brand of the fluid in the reservoir are unknown.

1. Position the vehicle on a level surface and turn off the engine.

2. View the brake fluid level ① at the reservoir in the driver’s side wheel well. The level should be between the upper (MAX) and lower (MIN) level lines.

3. If the fluid level is lower than the upper level line, remove the master cylinder cap and add brake fluid to the upper (MAX) line.

4. Apply the brake forcefully for a few seconds and check for fluid leakage around the fittings.

Do not apply WD-40®or any petroleum product to brake discs. These types of products are flammable and may also reduce the friction between the brake pad and caliper.

BRAKE INSPECTION

Brake components get hot with prolonged use and can cause burns. Wear protective gloves when inspecting the brakes.

1. Check the brake system for fluid leaks.

2. Check the brake pedal for excessive travel or a spongy feel.

3. Check the friction pads for wear, damage and looseness.

4. Check brake discs for signs of cracks, excessive corrosion, warping or other damage. Clean any grease using an approved brake cleaner or alcohol.

5. Inspect the brake disc spline and pad wear surface ① for excessive wear. Change pads when worn to 0.762 mm.

STEERING WHEEL INSPECTION

Check the steering wheel for specified free-play and smooth operation at the intervals outlined in the Periodic Maintenance Chart section.

1. Position the vehicle on level ground.

2. Lightly turn the steering wheel left and right.

3. There should be 20-25 mm of free-play.

4. If there is excessive free-play or strange noises, or the steering feels rough or “catchy,” have the steering system inspected by an authorized dealer.

The front and rear shocks are located in a fixed position on the vehicle frame. No other adjustment to shock position should be attempted.

SUSPENSION ADJUSTMENT

CAM ADJUSTMENT

Adjust the front and rear shock absorber springs by rotating the adjustment cam either clockwise or counter-clockwise to increase or decrease spring tension.

① Stiffest Setting

② Softest Setting

Always heed the following rules if you make adjustments to this suspension.

• Always return the suspension to the lowest (softest) setting after the load is removed from the vehicle. The increased suspension height will negatively impact vehicle stability when operating without a load.

• Always apply the same adjustment setting to both rear wheels.

TIRES

Tires age, even if they have not been used or have only been used occasionally. Cracking of the tread and sidewall rubber, sometimes accompanied by carcass deformation, is an evidence of aging. Old and aged tires must be checked and inspected by tire specialists to ascertain their suitability for further use.

Operating your vehicle with worn tires will increase the possibility of skidding, loss of control and an accident, which could result in serious injury or death. Always replace tires when the tread depth measures 5 mm or less. Improper tire inflation or the use of non-standard size or type of tires may adversely affect vehicle handling, which could result in vehicle damage or personal injury. Always maintain proper tire pressure. Always use EGIMOTORS approved size and type of tires for this vehicle when replacing tires.

TIRE TREAD DEPTH

Always replace tires when tread depth is worn to 5 mm or less.

AXLE AND WHEEL NUT TORQUE SPECIFICATIONS

Inspect the following items occasionally for tightness, and if they've been loosened for maintenance service. Do not lubricate the stud or the lug nut.

Lug Nut (Aluminum Wheels)	Front and Rear	163 N·m
Spindle Nut	Front	245 N·m + 60° for cotter pin installation
Hub Retaining Nut	Rear	245 N·m + 60° for cotter pin installation

WHEEL REMOVAL

1. Position the vehicle on a level surface.

2. Apply the brakes. Set the park brake. Turn the key off.

3. Loosen the wheel nuts slightly.

4. Elevate the side of the vehicle by placing a suitable stand under the frame.

5. Remove the wheel nuts. Remove the wheel.

Improperly installed wheels can adversely affect tire wear and vehicle handling, which can result in serious injury or death. Always ensure that all nuts are torqued to specification. Do not service axle nuts that have a cotter pin installed. Your dealer can assist.

WHEEL INSTALLATION

1. Place the transmission in PARK.

2. Place the wheel on the hub with the valve stem toward the outside and rotation arrows on the tire pointing toward forward rotation.

3. Attach the wheel nuts and finger-tighten.

4. Carefully lower the vehicle to the ground.

5. Torque the wheel nuts to specification.

LED LIGHTS (IF EQUIPPED)

LIGHTS

Poor lighting can result in reduced visibility when driving. Headlight and taillight lenses become dirty during normal operation. Clean lights frequently and replace failed (or failing) lights promptly. Do not operate this vehicle at night or in low light conditions until the headlight is replaced. Always make sure lights are adjusted properly for best visibility.

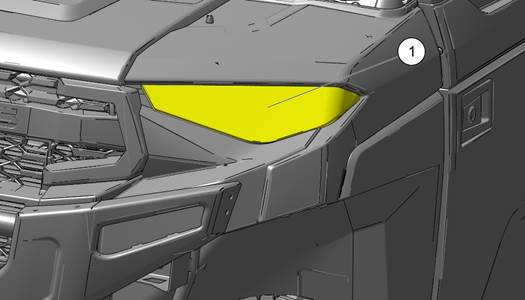

The vehicle is equipped with integrated LED lights. In the event of a failure, the entire assembly ① must be replaced.

HALOGEN LIGHTS (IF EQUIPPED)

LIGHTS

Poor lighting can result in reduced visibility when driving. Headlight and taillight lenses become dirty during normal operation. Clean lights frequently and replace burned out lamps promptly. Do not operate this vehicle at night or in low light conditions until the headlight is replaced. Always make sure lights are adjusted properly for best visibility.

When servicing a halogen lamp, don't touch the lamp with bare fingers. Oil from your skin leaves a residue, causing a hot spot that will shorten the life of the lamp.

HEADLIGHT BULB REPLACEMENT

1. Remove the hood from the front cab.

2. Locate the bulb on the back side of the headlight housing.

3. Disconnect the harness from the bulb. Be sure to pull on the connector ①, not on the wiring.

4. Turn the bulb counterclockwise and remove it from the headlight housing, as shown above.

5. Install the new bulb into the housing and rotate it clockwise 90° to lock it in place.

Make sure the tab on the bulb locates properly in the housing.

6. Install the harness onto the new headlight bulb and install the hood.

HEADLIGHT BEAM ADJUSTMENT

1. Ensure the tire pressure of all tires is at recommended levels.

2. Place the vehicle on a level surface with the headlight approximately 7.6m from a dark wall ①.

3. Measure the distance from the floor to the center of the headlight and make a mark on the wall at the same height.

4. Apply the brakes. Start the engine. Turn on the low-beam headlights.

5. Observe the headlight aim. The most intense part of the headlight beam should be aimed 20 cm below the mark placed on the wall ②. Include the weight of a rider on the seat while performing this step.

6. If a headlight needs adjustment, locate the three adjustment screws at the back of each headlight (one on top, two on the bottom).

7. Rotate the adjustment screw to adjust the headlight as needed.

BRAKE LIGHTS

When the brake pedal is depressed, the brake light comes on. Check the brake light before each ride.

To check the brake lights, do the following:

1. Turn the key to the ON position.

2. Depress the brake pedal. The brake light should come on after about 10mm of pedal travel. If the light doesn't come on, check the bulb.

FUSES

If the engine stops or will not start, or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse. To access the fuse box, remove the storage bin under the center rear-most seat. Spare fuses are provided in the fuse box. If you suspect that a fuse or relay may not be working properly, your dealer can assist.

FUSE SIZE	FEATURE SUPPORTED
20A	Accessory
15A	Lights
7.5A	Winch
10A	Key Switch
10A	Trickle Charge
15A	Drive
7.5A	Display
20A	Chassis
30A	EPS
10A	ECM
20A Circuit Breaker	Fan
20A	AMP Power

Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing.

Antidote:

External: Flush with water.

Internal: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg, or vegetable oil. Call physician immediately.

Eyes: Flush with water for 15 minutes and get prompt medical attention.

Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away. Ventilate when charging or using in an enclosed space. Always shield eyes when working near batteries. KEEP OUT OF REACH OF CHILDREN.

BATTERY

Your vehicle has a low-maintenance flooded battery. It does not require refilling.

Always keep battery terminals and connections free of corrosion. If cleaning is necessary, remove the corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the terminals with dielectric grease or petroleum jelly. Be careful not to allow cleaning solution or tap water into a conventional battery.

Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last.

An overheated battery may explode, causing severe injury or death. Always watch charging times carefully. Stop charging if the battery becomes very warm to the touch. Allow it to cool before resuming charging.

BATTERY MAINTENANCE AND CHARGING

The sealed battery is already filled with electrolyte and has been sealed and fully charged at the factory. Never pry the sealing strip off or add any other fluid to this battery.

The single most important thing about maintaining a sealed battery is to keep it fully charged. Check the battery voltage with a voltmeter or multimeter. A fully charged battery will register 12.8 V or higher. If the voltage falls below 12.5V, charge it immediately, or the battery runs the risk of sulfation and reduced battery life.

If you do not drive the vehicle for more than TWO WEEKS, EGIMOTORS recommends using a BatteryMINDer® 2012 AGM - 2 AMP charger (PN 2830438), which can be ordered through your dealer.

EGIMOTORS provides a charging accessory with your vehicle that allows easy connection to the battery through the 12V auxiliary outlet, located on the dash. During charging, place the charger outside of the vehicle and protect it from moisture.

The 12V socket located in the rear of 4 seat vehicles is powered after key-on and CANNOT be used for charging.

If you plan to store the vehicle for ONE MONTH or longer, remove the battery from the vehicle, then store the battery in a cool and dry location. Continue to maintain the battery with the BatteryMINDer® 2012 AGM - 2 AMP charger.

When using an automatic charger other than a BatteryMINDer® 2012-AGM - 2 AMP charger, refer to the charger manufacturer's instructions for recharging.

If using a constant current charger (instead of BatteryMINDer® 2012 AGM - 2 AMP charger), use the guidelines below. Always verify battery condition before and 1-2 hours after the end of charging.

STATE OF CHARGE	VOLTAGE (DC)	ACTION	CHARGE TIME*
100%	12.8-13.0 volts	None, check monthly	None required
75%-100%	12.6-12.8 volts	May need slight charge, if no charge given, check in 2 weeks	3-6 hours
50%-75%	12.3-12.6 volts	Needs charge	5-11 hours
25%-50%	12.0-12.3 volts	Needs charge	At least 13 hours
0%-25%	12.0 volts or less	Needs charge	At least 20 hours
* Using AGM specific charger at standard amps specified on top of battery

Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death. When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last.

BATTERY REMOVAL

To remove the battery, do the following:

1. Remove the storage bin under the center rear-most seat to access the battery.

2. Disconnect the black (-) battery cable first. Disconnect the red (+) battery cable last.

3. Remove the battery hold-down strap.

If electrolyte spills, immediately wash it off with a solution of one tablespoon baking soda and one cup water to prevent damage to the vehicle.

4. Lift the battery out of the vehicle. Be careful not to tip a flooded battery sideways, which could spill electrolyte.

BATTERY INSTALLATION

1. Ensure that the battery is fully charged.

2. Place the battery in the battery holder.

3. Coat the terminals with dielectric grease or petroleum jelly.

4. Connect and tighten the red (positive) cable first.

TORQUE: 4.5 N·m

5. Connect and tighten the black (negative) cable last.

6. Install the battery hold-down strap and tighten the screws.

7. Verify that cables are properly routed.

8. Reinstall the seat.

BATTERY STORAGE

Whenever the vehicle is not used for a period of three months or more, remove the battery from the vehicle, ensure that it's fully charged, and store it out of the sun in a cool, dry place. Check battery voltage each month during storage and recharge as needed to maintain a full charge.

Battery charge can be maintained by using a Polaris battery trickle charger or by charging about once a month to make up for normal self-discharge. The battery trickle charger can be left connected during the storage period, and will automatically charge the battery if the voltage drops below a predetermined point.

CLEANING AND STORAGE

WASHING THE VEHICLE

Keeping your EGIMOTORS vehicle clean will not only improve its appearance but it can also extend the life of various components.

High water pressure may damage components. EGIMOTORS recommends washing the vehicle by hand or with a garden hose, using mild soap.

Certain products, including insect repellents and chemicals, will damage plastic surfaces. Do not allow these types of products to contact the vehicle.

The best and safest way to clean your EGIMOTORS vehicle is with a garden hose and a pail of mild soap and water.

1. Use a professional-type washing cloth, cleaning the upper body first and the lower parts last.

2. Rinse with clean water frequently.

3. Dry surfaces with a chamois to prevent water spots.

WASHING TIPS

• Avoid the use of harsh cleaners, which can scratch the finish.

• Do not use medium to heavy duty compounds on the finish.

• Always use clean cloths and pads for cleaning and polishing. Old or reused cloths and pads may contain dirt particles that will scratch the finish.

• Grease all zerk fittings immediately after washing. Allow the engine to run for a while to evaporate any water that may have entered the engine or exhaust system.

If a high pressure water system is used for cleaning (not recommended) exercise extreme caution. The water may damage components and could remove paint and labels. Avoid directing the water stream at the following items:

• Wheel bearings

• Radiator

• Transmission seals

• Brakes

• Door seals (if equipped)

• Cab and body panels

• Labels and decals

• Electrical components and wiring

• Air intake components

• Window seals (if equipped)

• Throttle and shift cables and controls

If an informational or graphic label becomes illegible or comes off, contact your EGIMOTORS dealer, or other qualified person, to purchase a replacement.

Replacement safety labels are provided by EGIMOTORS at no charge.

Starting the engine during the storage period will disturb the protective film created by fogging and damage could occur. Never start the engine during the storage period.

STORAGE TIPS

CLEAN THE EXTERIOR

Make any necessary repairs and clean the vehicle as recommended.

STABILIZE THE FUEL

1. Fill the fuel tank.

2. Add EGIMOTORS Carbon Clean Fuel Treatment or EGIMOTORS Fuel Stabilizer or equivalent fuel treatments or stabilizers. Follow the instructions on the container for the recommended amount. Carbon Clean removes water from fuel systems, stabilizes fuel and removes carbon deposits from pistons, rings, valves and exhaust systems.

3. Allow the engine to run for 15-20 minutes to allow the stabilizer to disperse through the entire fuel delivery system.

OIL AND FILTER

Change the oil and filter. See the Engine Oil section.

AIR FILTER / AIR BOX

Replace the air filter. See Maintenance Chapter. Clean the air box.

FLUID LEVELS

Inspect the fluid levels. Add or change fluids as recommended in the Periodic Maintenance Chart.

• Demand drive fluid (front gearcase)

• Rear gearcase fluid (if equipped)

• Transmission fluid

• Brake fluid (change every two years and any time the fluid looks dark or contaminated)

• Coolant (test strength/fill)

INSPECT AND LUBRICATE

Inspect all cables and lubricate all areas of the vehicle as recommended in the Periodic Maintenance Chart.

FOG THE ENGINE

1. Treat the fuel system with EGIMOTORS Carbon Clean or other equivalent fuel treatment. Follow the instructions on the container. Start the engine. Allow it to idle for several minutes so the Carbon Clean reaches the injectors. Stop the engine.

2. Remove the spark plugs and add 29.5–44 cc. of engine oil. To access the plug holes, use a section of clear 6 mm hose and a small plastic squeeze bottle filled with the pre-measured amount of oil. Do this carefully! If you miss the plug holes, oil will drain from the spark plug cavities into the hole at the front of the cylinder head, and appear to be an oil leak.

3. Reinstall the spark plugs. Torque to specification.

4. Apply dielectric grease to the inside of each spark plug cap. Do not reinstall the cap onto the plug at this step.

5. Turn the engine over several times. Oil will be forced in and around the piston rings and ring lands, coating the cylinder with a protective film of fresh oil.

6. Reinstall the spark plug caps.

7. If EGIMOTORS fuel system additive is not used, fuel tank, fuel lines, and injectors should be completely drained of gasoline.

STORAGE AREA / COVERS

Be sure the storage area is well ventilated. Cover the vehicle with a genuine EGIMOTORS cover. Do not use plastic or coated materials. They do not allow enough ventilation to prevent condensation, and may promote corrosion and oxidation.

Engine exhaust contains poisonous carbon monoxide and can cause loss of consciousness or death. Never run an engine in an enclosed area.

REMOVAL FROM STORAGE

1. Check the battery electrolyte level and charge the battery if necessary. Install it in the vehicle. Make sure the battery vent hose is routed properly and that it's not pinched or restricted in any way.

2. Make sure spark plugs are tight.

3. Fill the fuel tank with fuel.

4. Check all the points listed in the Daily Pre-Ride Inspection. Tightness of the bolts, nuts and other fasteners should be checked by an authorized dealer or other qualified service facility.

5. Lubricate at the intervals outlined in the Periodic Maintenance Chart.

TRANSPORTING THE VEHICLE

Follow these procedures when transporting the vehicle.

1. Apply the brakes.

2. Place the transmission in PARK. Stop the engine.

3. Slowly release the brake pedal and make sure the transmission is in PARK before exiting the vehicle.

4. Remove the key to prevent loss during transporting.

Cargo and other loose vehicle parts may fly off while transporting this vehicle.

Secure or remove all cargo, and inspect the unit for loose parts prior to transport.

If transporting the vehicle in a non-enclosed trailer, then the vehicle must FACE FORWARD, or roof must be removed.

Failure to comply may allow airflow, vibration, or other factors to separate the roof from the vehicle and cause an accident, resulting in serious personal injury or death.

5. Secure the fuel cap and seat. Ensure that the seat is attached correctly and is not loose.

6. Using suitable straps or rope, always secure the vehicle to the trailer using the designated tie down points (front and rear).

Front Tie-Down Location

① Front tie-down points

Rear Tie-Down Locations

② Rear tie-down points

SPECIFICATIONS

RANGER CREW XP 1000 TRACTOR

DESCRIPTION	SPECIFICATION
Gross Vehicle Weight (includes weight of operator, passenger, cargo, accessories)	1260 kg
Unladen mass in running order	795 kg
Test GVW - Rollover Protection System (ROPS)	1701 kg per OSHA® 29 CFR 1928.53
Fuel Capacity	37,9L
Engine Oil Capacity	2.4 L
Coolant Capacity	5.35 L
Overall Length	377 cm
Overall Width	155 cm
Overall Height	193 cm
Wheelbase	287 cm
Cargo Box Dimensions (Inside)	93 x 137 x 32 cm
Ground Clearance	36 cm
Min. Turning Radius	555 cm
Towing Capacity	750kg (unbraked) 1300 kg (inertia braked)
Hitch Tongue Capacity	75kg

DESCRIPTION	SPECIFICATION
Max. Cargo Box Load	375 kg
Engine	4-Stroke DOHC Twin Cylinder
Displacement	999 cc
Bore x Stroke (mm)	93 mm x 73.5 mm
Stator Output	660 W @ 3000 RPM
Compression Ratio	10.8:1
Starting System	Electric
Fuel System	Electronic Fuel Injection
Ignition Timing	ECU Controlled 32° +/- 2° @ 5000 RPM
Spark Plug/ Gap	MR7F / 0.7-0.8 mm
Lubrication System	Wet Sump
Cooling	Liquid
Front Suspension	Dual A-Arm 25.4 cm Travel
Rear Suspension	Dual A-Arm 25.4 cm Travel
Ignition System	Digital CDI
Driving System Type	Pro-PVT
Shift Type	Single Lever (H/L/N/R/P)
Gear Reduction - Low	Front 9.65:1/ Rear 28.84:1
Gear Reduction - Reverse	Front 9.16:1 / Rear 27.39:1
Gear Reduction - High	Front 4.35:1 / Rear 13.01:1
Drive Ratio - Front	3.23:1
Tire Size - Front	225/73-14

DESCRIPTION	SPECIFICATION
Tire Size - Rear	275/60-14
Tire Pressure - Front	0,69 Bar
Tire Pressure - Rear	1,65 Bar
Brakes, Front/Rear	Foot Activated, 4 wheel hydraulic disc with dual-bore front calipers
Hood Headlights	LED (if equipped) Halogen (if equipped) 55W Low Beam 60W High Beam
Taillights	LED
Brake Light	LED

PRODUCTS

LUBRICANTS / SERVICE PRODUCTS

PRODUCT	SIZE (QUANTITY)	QUANTITY	PART NUMBER
Fogging Oil	355 ml aerosol	12	2870791
	0.95 L	12	2871517
PS-4	0.95 L	12	2876244
	1.90 L	8	2877490
	3.8 L	4	2876245
PS-4 Extreme Duty	0.95 L	12	2878920
	1.90 L	8	2878922
	3.8 L	4	2878919
	0.95 L	12	2889395
	3.8 L	4	2889396
AGL	0.95 L	12	2878068
	3.8 L	4	2878069
Pump for Gallon Jug	—	1	2870465
Demand Drive	0.95 L	12	2877922
	9.5 L	2	2877923
Antifreeze / Coolant	0.95 L	12	2880514
	3.8 L	6	2880513
Grease Gun Kit, Premium All Season	—	1	2871312
All Season Grease	89 mL packs	6	2871322
	414 mL cartridge	1	2871423
Premium Starter Grease	—	1	2871460
U-Joint Grease	89 mL tube	24	2871515
	414 mL cartridge	1	2871551
Dielectric Grease (Nyogel®)	—	1	2871329

PRODUCT	SIZE (QUANTITY)	QUANTITY	PART NUMBER
Carbon Clean	355 mL bottle	12	2871326
Fuel Stabilizer	473 mL	12	2870652
	9.5 L	2	2872280
DOT 4 Brake Fluid	—	1	2872189
Loctite® 565 Thread Sealant	—	1	2871956
BatteryMINDer® 2012 AGM - 2 AMP Charger	—	1	2830438

TROUBLESHOOTING

DRIVE BELT WEAR/BURN

POSSIBLE CAUSE	SOLUTION
Driving onto a pickup or tall trailer in high range	Use low range during loading.
Starting out going up a steep incline	Use low range.
Driving at low RPM or ground speed – 3–7 mph (4.8–11.3 km/h)	Drive at a higher speed or use low range more frequently.
Insufficient warm-up at low ambient temperatures	Warm the engine at least 5 minutes. With the transmission in neutral, advance the throttle to about 1/8 throttle in short bursts, 5 to 7 times. The belt will become more flexible and prevent belt burning.
Slow/easy clutch engagement	Use the throttle quickly and effectively.
Towing/pushing at low RPM/low ground speed	Use low range only.
Utility use/plowing	Use low range only.
Stuck in mud or snow	Shift the transmission to low range and carefully use fast, aggressive throttle application to engage clutch. WARNING: Excessive throttle may cause loss of control and vehicle rollover.
Climbing over large objects from a stopped position	Shift the transmission to low range and carefully use fast, brief, aggressive throttle application to engage clutch. WARNING: Excessive throttle may cause loss of control and vehicle rollover.
Belt slippage from water or snow ingestion into the PVT system	Dry out the PVT. Prevent water from entering the PVT intake duct. See Intake Pre-Filters for more information. Inspect clutch seals for damage if repeated leaking occurs.
Clutch malfunction	An authorized dealer can assist.
Poor engine performance	Check for clogged air filter, clogged fuel filter, water in the fuel or foreign material in fuel tank or fuel lines. An authorized dealer can assist.
Slippage from failure to warm up belt	Always warm up the belt by operating below 48 km/h for 1.6 km. When the temperature is below freezing, operate for 8km.
Wrong or missing belt	Install the recommended belt.
Improper break-in	Always break in a new belt and/or clutch.

ENGINE DOESN'T TURN OVER

POSSIBLE CAUSE	SOLUTION
Low battery voltage	Recharge the battery.
Loose battery connections	Check all connections and tighten.
Loose solenoid connections	Check all connections and tighten.
Loose electronic control box connections	Inspect, clean, reinstall connectors.

ENGINE TURNS OVER, FAILS TO START

POSSIBLE CAUSE	SOLUTION
Out of fuel	Refuel
Water is present in fuel	Drain the fuel system and refuel
Old or non-recommended fuel	Replace with fresh recommended fuel
Fouled or defective spark plug	Inspect plug and replace if necessary
No spark to spark plug	Inspect plug and replace if necessary
Water or fuel in crankcase	See your EGIMOTORS dealer or other qualified person
Low battery voltage	Recharge the battery to 12.8 VDC
Mechanical failure	See your EGIMOTORS dealer or other qualified person

ENGINE BACKFIRES

POSSIBLE CAUSE	SOLUTION
Weak spark from spark plug	Inspect, clean and/or replace spark plug
Incorrect spark plug gap or heat range	Set gap to specs or replace plug
Old or non-recommended fuel	Replace with fresh recommended fuel
Incorrectly installed spark plug wires	Your authorized dealer can assist
Mechanical failure	Your authorized dealer can assist
Loose ignition connections	Check all connections and tighten
Water present in fuel	Replace with fresh recommended fuel

ENGINE PINGS OR KNOCKS

POSSIBLE CAUSE	SOLUTION
Poor quality or low octane fuel	Replace with recommended fuel
Incorrect spark plug gap or heat range	Set gap to specs or replace plug

ENGINE RUNS IRREGULARLY, STALLS OR MISFIRES

POSSIBLE CAUSE	SOLUTION
Fouled or defective spark plug	Inspect, clean and/or replace spark plug
Worn or defective spark plug wires	Your authorized dealer can assist
Incorrect spark plug gap or heat range	Set gap to specs or replace plug
Loose ignition connections	Check all connections and tighten
Water present in fuel	Replace with new fuel
Low battery voltage	Recharge battery to 12.8 VDC
Incorrect fuel	Replace with recommended fuel
Clogged air filter	Inspect and clean or replace
Clogged intake pre-filter	Inspect and clean (with soapy water) or replace
Other mechanical failure	Your authorized dealer can assist

ENGINE STOPS OR LOSES POWER

POSSIBLE CAUSE	SOLUTION
Out of fuel	Refuel
Kinked or plugged fuel vent line	Inspect and replace
Water is present in fuel	Replace with new fuel
Fouled or defective spark plug	Inspect, clean and/or replace spark plug
Worn or defective spark plug wires	Your authorized dealer can assist
Incorrect spark plug gap or heat range	Set gap to specs or replace plug

POSSIBLE CAUSE	SOLUTION
Loose ignition connections	Check all connections and tighten
Low battery voltage	Recharge the battery
Incorrect fuel	Replace with fresh recommended fuel
Clogged air filter	Inspect and clean or replace
Clogged intake pre-filter	Inspect and clean (with soapy water) or replace
Other mechanical failure	Your authorized dealer can assist
Overheated engine	Clean radiator screen and core, clean engine exterior, and check coolant level. Your dealer can assist.

WARRANTY

LIMITED WARRANTY

EGIMOTORS gives a ONE YEAR LIMITED WARRANTY on all components of your Tractor against defects in material or workmanship.

This warranty covers parts and labor charges for repair or replacement of defective parts and begins on the date of purchase by the original retail purchaser. The duration of this warranty may vary by international region based upon local laws and regulations.

REGISTRATION

At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to EGIMOTORS within ten days of purchase. Upon receipt of this registration, EGIMOTORS will record the registration for warranty. No verification of registration will be sent to the purchaser as the copy of the Warranty Registration Form will be your proof of warranty coverage. If you have not signed the original registration and received the customer copy, please contact your dealer immediately. NO WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR VEHICLE IS REGISTERED WITH EGIMOTORS. Initial dealer preparation and set-up of your vehicle is very important in ensuring trouble-free operation.

WARRANTY COVERAGE AND EXCLUSIONS

LIMITATIONS OF WARRANTIES AND REMEDIES

This EGIMOTORS limited warranty excludes any failures that are not caused by a defect in material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental damage, normal wear and tear, abuse or improper handling. This warranty also does not cover any damage to any vehicle, component, or part as a result of being structurally altered or electrically,, modified, neglected, improperly maintained or used for racing, competition or purposes other than for which it was designed.

This warranty excludes damages or failures resulting from improper lubrication; surface imperfections caused by external stress, heat, cold or contamination; operator error or abuse; improper component alignment, tension, adjustment; snow, water, dirt or other foreign substance ingestion/contamination; improper maintenance; modified components; use of aftermarket or unapproved components, accessories, or attachments; use of unapproved software or calibration; unauthorized repairs; or repairs made after the warranty period expires or by an unauthorized repair center.

This warranty excludes the expected reduction in range or capacity that the high-voltage battery pack may experience as a result of time and usage.

However, a high-voltage battery pack that exhibits a capacity reduction in excess of 20% of the published nominal capacity is covered under the limited warranty. The reduction would need to be verified by an authorized dealer by checking the battery management system (BMS) log data.

This warranty excludes non-recoverable high-voltage battery packs. It is the owner’s responsibility to ensure the state of charge (SoC) of the high-voltage battery is maintained properly and never fully depleted. If the high-voltage battery charge becomes fully depleted, the high-voltage battery can cease operating permanently (also known as non-recoverable)

This warranty excludes damages or failures caused by abuse, accident, fire, or any other cause other than a defect in materials or workmanship and provides no coverage for consumable components, general wear items, or any parts exposed to friction surfaces, stresses, environmental conditions and/or contamination for which they were not designed or not intended, including but not limited to the following items:

• Wheels and tires

• Suspension components

• Brake components

• Seat components

• Steering components

• 12–Volt Battery

• Light bulbs/Sealed beam lamps

• Lubricants

• Finished and unfinished surfaces

• Bushings

• Hydraulic components and fluids

• Circuit breakers/Fuses

• Electronic components

• Sealants

• Coolants

• Bearings

LUBRICANTS AND FLUIDS

1. Mixing oil brands or using non-recommended oil may cause engine damage. We recommend the use of POLARIS engine oil.

2. Damage or failure resulting from the use of non-recommended lubricants or fluids is not covered by this warranty.

This warranty provides no coverage for personal loss or expense, including mileage, transportation costs, hotels, meals, shipping or handling fees, product pick-up or delivery, replacement rentals, loss of product use, loss of profits, or loss of vacation or personal time.

THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE, AT EGIMOTORS OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. EGIMOTORS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE.

THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE ABOVE ONE YEAR WARRANTY PERIOD. EGIMOTORS DISCLAIMS ALL EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY.

HOW TO OBTAIN WARRANTY SERVICE

If your vehicle requires warranty service, you must take it to a EGIMOTORS Servicing Dealer. When requesting warranty service you must present your copy of the Warranty Registration Form to the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE DEALER IS YOUR

RESPONSIBILITY.) EGIMOTORS suggests that you use your original selling dealer; however, you may use any EGIMOTORS Servicing Dealer to perform warranty service.

IN THE COUNTRY WHERE YOUR PRODUCT WAS PURCHASED:

You are responsible for presenting your vehicle to an authorized EGIMOTORS dealer as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. However, any damage caused to the product by you or any non-authorized third party may void this warranty. Warranty or Service Bulletin repairs must be done by an authorized EGIMOTORS dealer, or other qualified person authorized by EGIMOTORS.

OUTSIDE THE COUNTRY WHERE YOUR PRODUCT WAS PURCHASED:

If you are traveling temporarily outside the country where your product was purchased, you should take your product to an authorized EGIMOTORS dealer, or other qualified person authorized by EGIMOTORS. You must show the dealer photo identification from the country of the selling dealer's authorized location as proof of residence. Upon residence verification, the servicing dealer will be authorized to perform the warranty repair.

IF YOU MOVE:

If you move to another country, be sure to contact EGIMOTORS Customer Assistance and the customs department of the destination country before you move. Product importation rules vary considerably from country to country. You may be required to present documentation of your move to EGIMOTORS in order to continue your warranty coverage. You may also be required to obtain documentation from EGIMOTORS to register your product in your new country. We recommend that you register your product at a local authorized EGIMOTORS dealer promptly after you move.

IF YOU PURCHASE FROM A PRIVATE PARTY:

If you purchase a EGIMOTORS product from a private party, to be kept and used outside of the country in which the product was originally purchased, all warranty coverage will be denied. However, we encourage you to promptly register your product at your local authorized EGIMOTORS dealer to receive safety information and notice regarding your product.

EXPORTED PRODUCTS

EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S

AUTHORIZED LOCATION. This policy does not apply to products that have received authorization for export from EGIMOTORS. Dealers may not give authorization for export. You should consult an authorized dealer to determine this product's warranty or service coverage if you have any questions. This policy does not apply to products registered to government officials or military personnel on assignment outside the country of the selling dealer's authorized location. This policy does not apply to Safety Bulletins

If vehicle is equipped with windshield, remove windshield, or tilt windshield up.

Remove any hardware attached to ROPS right-hand A-pillar.

NOTICE

If your product is registered outside of the country where it was purchased and you have not followed the procedure set above, your product will no longer be eligible for warranty or service bulletin coverage of any kind, other than safety recalls. Products registered to government officials or military personnel on assignment outside of the country where the product was purchased will continue to be covered by the Limited Warranty.

Please work with your dealer to resolve any warranty issues. Dealership contacts can be found via this website, if needed:

www.egimotors.it

Sho Should your dealer require any additional assistance, they will contact the appropriate person at EGIMOTORS.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or in different countries. If any of the above terms are void because of federal, state, local law, all other warranty terms will remain in effect.

For questions reach EGIMOTORS on www.egimotors.it

.

MAINTENANCE LOG

MAINTENANCE LOG

Use the following chart to record periodic maintenance.

DATE

MILES (KM) OR HOURS

TECHNICIAN

SERVICE PERFORMED / COMMENTS

For more information

visit www.Egimotors.it

Egimotors

Via Filippo da Desio 49/51

20832 Desio (MB) ITALY

info@polarisitalia.com
