2026 Owner’s Manual



RANGER CREW 1000





Read this manual carefully. It contains important safety information. This is an adult vehicle only.

Operation is prohibited for those under 18 years of age.



This Owner Manual refers to EGIMOTORS TRACTORS

(To be filled in by your Dealer)



This Owner’s Manual must always remain inside you Tractor

(Legal requirement)

A digital/printable copy is available on www.egimotors.it











Year ________________________________________________________



Model Type___________________________________________________



Code number (spare parts use only) _______________________________



VIN Number__________________________________________________



Engine Serial Number __________________________________________



Key Number __________________________________________________



Registration Plate Number _______________________________________







WELCOME



Thank you for purchasing an EGIMOTORS Tractor, and welcome to our world-wide family of enthusiasts.



We have done This manual to inform you on how to use and maintain the best condition of operation for your Tractor.

If after reading this manual, you still have some questions please do not hesitate to contact your dealer that will be available to help you.

Be sure to visit us online at www.Egimotors.it  for the latest news and for product and Safety information.

We believe we sets a standard of excellence for all utility and Tractor manufactured in the world today.

Many years of experience have gone into the engineering, design, and development of your Tractor, making it the finest machine we’ve ever produced.

For safe and enjoyable operation of your vehicle, be sure to follow the instructions and recommendations in this owner’s manual.

Your manual contains instructions for the maintenance of the Tractor and information about repairs.

Service Manual are available from Dealers, only them can perform major repair and install accessory.

Your dealer knows your Tractor better than anyone and is interested in your total satisfaction, he can perform your service needs during and after the warranty period.



For the most up-to-date owner’s manual visit:

http://egimotors.it/libretto-uso-manutenzione/



Read and understand this Owner’s Manual is extremely important for your safety and for all the operators, so please take your time to read all the pages and be sure that is someone else will use the Tractor before will take this manual and read and understand all, this will give you the best knowledge and skills on how to ride in security.

Copyright 2026 EGIMOTORS.

All the information contained within this publication is based on the latest product information at the time of publication.

Due to constant improvement in the design and quality of product components, some minor discrepancies may result between the actual unit and the information presented in this publication.

Descriptions and or procedure in this publication are intended for reference use only. No Liability can be accepted for omission or inaccuracies. Any reprinting or reuse of the depictions and or procedures contained within this publication are intended for reference use only. The original instruction is in English.

Other languages are provided as translation of the original Instruction see the EGIMOTORS website for more details and procedure.



INTRODUCTION. 7

CERTIFICATE OF PRE-DELIVERY. 11

SAFETY. 15

FEATURES AND CONTROLS. 31

OPERATION.. 66

EMISSION CONTROL SYSTEMS. 79

MAINTENANCE. 80

SPECIFICATIONS. 123

PRODUCTS. 125

TROUBLESHOOTING.. 127

WARRANTY. 131

MAINTENANCE LOG.. 136







INTRODUCTION

BEFORE YOU RIDE

This EGIMOTORS Tractor is an off-road Tractor. Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your area.



Failure to heed the warnings and safety precautions contained in this manual can result in severe injury or death. Your EGIMOTORS vehicle is not a toy and can be hazardous to operate. This vehicle handles differently than cars, trucks or other off-road vehicles. A collision or rollover can occur quickly, even during routine maneuvers like turning, or driving on hills or over obstacles, if you fail to take proper precautions.

•      Read this owner’s manual that came with your vehicle. Understand all safety warnings, precautions and operating procedures before operating the vehicle. Keep this manual with the vehicle.

•      Never operate this vehicle without proper instruction. Take an authorized training course. See the Safety Training section for more information.

•      This vehicle is an ADULT VEHICLE ONLY. You MUST be at least age 18 and have a valid driver’s license to operate this vehicle.

•      Always use the cab nets (or doors) while riding in this vehicle. Always keep hands, feet and all other body parts inside the vehicle at all times.

•      Always wear a helmet, eye protection, gloves, long-sleeve shirt, long pants and over-the-ankle boots.

•      Never operate this vehicle under the influence of drugs or alcohol, as these conditions impair judgement and reduce the operator’s ability to react.

•      Complete the New Operator Driving Procedures outlined in this manual. Never allow a guest to operate this vehicle until the guest has completed the New Operator Driving Procedures.

•      Never permit a guest to operate this vehicle unless the guest has reviewed the owner’s manual and all safety labels and has completed a safety training



SAFETY SYMBOLS AND SIGNAL WORDS

The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.

DANGER indicates a hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING indicates a hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, COULD result in minor to moderate injury.

NOTICE provides key information by clarifying instructions.

IMPORTANT provides key reminders during disassembly, assembly, and inspection of components.





The Prohibition Safety Sign indicates an action NOT to take in order to avoid a hazard.







The Mandatory Action Sign indicates an action that NEEDS to be taken to avoid a hazard.









EUROPEAN VIBRATION AND NOISE

The driver-perceived noise and hand/arm and whole body vibration levels of this machinery is measured per EN 16990:2020.

The operating conditions of the machinery during testing:

The vehicles were in like-new condition. The environment was controlled as indicated by the test procedure(s).

The uncertainty of vibration exposure measurement is dependent on many factors, including:

•      Instrument and calibration uncertainty

•      Variations in the machine such as wear of components

•      Variation of machine operators such as experience or physique

•      Ability of the worker to reproduce typical work during measurements

•      Environmental factors such as ambient noise or temperature





VEHICLE IDENTIFICATION NUMBERS

Record your vehicle's identification numbers and key number in the spaces provided. Remove the spare key and store it in a safe place. An ignition key can be duplicated only by ordering a EGIMOTORS key blank (using your key number) and mating it with one of your existing keys. The ignition switch must be replaced if all keys are lost.



The images below are for reference only. Depending on model, your vehicle may differ slightly.









The engine serial number can be found on a decal applied to the front of the engine crankcase ① or stamped into the crankcase on the PTO side of the engine ②.

The VIN can be found stamped on a portion of the left rear frame ③, above the PVT cover.



Vehicle Model Number:
Vehicle Identification Number (VIN):
Engine Serial Number:
Key Number:
NRMM Reference Number (if applicable):





CERTIFICATE OF PRE-DELIVERY

Tractor Certificate of Pre-Delivery



Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________



ASSEMBLY / SERVICE / INSPECTION



 - SEALED BATTERY – Apply dielectric grease to terminal bolts and install cable. Check Voltage and charge if below 12,8 Volts.

 - BATTERY VOLTAGE – Misuse and record the battery voltage after 30 minutes after charger has been removed ____ DCV

 - TIRE PRESSURE – Verify Pressure if set to Specification

 - WHEEL NUT – Torque to specification

 - HANDLEBAR CLAMPS - Torque bolts to specification

 - MASTER CYLINDER – Torque bolts to specification

 - FRONT TOE ALIGMENT – Verify proper toe setting

 - BALL JOINT – Inspect bolts and/or cotter pin

 - STEERING POST – Inspect cotter pin

 - TIE ROD – Inspect jam nuts and cotter pin

 - TRANSMISSION – Add oil if needed

 - GREASE FITTING – Check and Grease all the Fitting if needed

 - ENGINE OIL – Check level of oil, add if needed

 - BRAKE FLUID – Check level of fluid, add if needed in brake master cylinder(s)

 - ENGINE COOLANT – Inspect coolant in recovery bottle. Add if needed.

 - PARK BRAKE – Verify proper operation

 - INTAKE AIRBOX – Inspect hose connection and clamps. Inspect filter condition.

 - LIGHTS   – Verify operation of all lights

 - FUEL – Check level of fuel and add if needed

 - WIRE HARNESS / HOSE/ LINES – Inspect wire, hoses, and line from kinks, pinching and sign of abrasion.

 - UNIT INQUIRY – Check in the system and complete applicable Service Bulletins Recalls or factory direct modification(s)

 - COSMETIC INSPECTION – Inspect the quadricycle for damage and proper fit and finish.



DEALERSHIP NAME____________________________#_________

ASSEMBLED BY_________________________________________

DATE                /             /

SIGNATURE

STAMP



Tractor Certificate of Pre-Delivery



Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________



TEST RIDE



 - ENGINE – Starting acceleration and smoothness.

 - IDLE SPEED – Verify when cold and hot the engine idle properly.

 - TROTTLE – With engine idling and transmission in Neutral, swing the handlebar through entire travel range and verify proper and smooth operation.

 - ETC - Verify proper operation and throttle free play.

 - AUXILIARY SHUT OFF SWITCH - Verify proper operation.

 -  BRAKES - Verify proper operation. Torque bolts to specification

 - DRIVELINE – Verify smooth operation

 - CLUTCH / TRANSMISSION – Verify proper shifting and transmission engagement/ indicator lights must correspond with gears.

 - AWD ADC – Verify proper operation.

 - REVERSE SPEED LIMITER – Verify operation and override control.

 - INSTRUMENTATION – Verify operational reading.

 - WHINCH (If equipped) – Verify proper operation.

 - SUSPENSION / STEERING – Verify adjustment, stability and operation.

 - ENGINE COOLANT Inspect coolant in recovery bottle between Min and Max after test ride, add if necessary.

 - DIAGNOSTIC SYSTEM – Run Engine up to full operating temperature. Use digital Wrench to generate and submit a “Service Report” recommended Process.

 - LEAKEAGE – After completing “Diagnostic System “check for leakage and verify proper connection of oil / exhaust / fuel / Coolant / Brake fluid fitting, inspect hoses for sign and abrasion.

 - CLEAN – Wash and clean the quadricycle before delivery.







TEST RIDDEN BY ___________________________________________________

DATE                /             /

SIGNATURE

STAMP



Tractor Certificate of Pre-Delivery



Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________



DELIVERY TO CUSTOMER



 - WARRANTY REGISTRATION FORM – Completed and signed.

 - OWNERS MANUAL – Emphasize the importance of reading for customer Safety and Servicing of Quadricycle/ Explain periodic maintenance responsibilities.

 - WARRANTY POLICY – Explanation / Limit / Requirements.

 - KEYS - Record Key Number.

 -  Controls – Show location and function.

 - BELT LIFE – Discuss proper operation procedure operating and proper use of High and Low Gear Range.

 - BREAK IN PROCEDURE – Review as outline in Owner’s Manual.

 - STORAGE / FUELING / TRANSPORTATION – Review as outline in the owner’s manual.

 - TOOL KIT – Show location.

 - Safety Video – Review with Customer.

 - SAFETY FEATURES – Review all safety features of quadricycle operation for new operation.

 - DRIVING PROCEDURE – Review Operator driving procedure outlined in the Owner’s Manual.

 - SVIA TRAINING FACT SHEET – Review with customer.

 - SAFETY TRAINING COURSE SVIA – I have instructed the owner on the authorized SVIA Safety training online course.

 - PRE-DELIVERY CERTIFICATION – I certify that pre-delivery inspection and service have been perform on this vehicle in accordance with the instructions issued by EGIMOTORS.



DEALERSHIP NAME____________________________#_________

DELIVERED BY_________________________________________

DATE                /             /

SIGNATURE

STAMP



Tractor Certificate of Pre-Delivery



Year ______ Model______________________________

VIN___________________________________________

Engine Serial Number ____________________________

Key Number ____________ Km / Hours______________

Registration Plate Number_________________________



CUSTOMER ACCEPTANCE



 - I have reviewed the EGIMOTORS warranty Policy / Policies

 - I have inspected the Quadricycle and it meets my satisfaction.

 - I understand the importance of following the Owner’s Manual and instructions.

 - I understand the importance of using all safety features.

Review with customer.

 - I understand the importance of all operation following the operator driving procedures in the Owner’s Manual.

 - I have been instructed on the authorized online SVIA training course by my Dealer ____________________________________

(Name of dealership and person who inform the Customer)





CUSTOMER NAME_____________________________________

CUSTOMER SIGNATURE

DATE                /             /





SAFETY

OWNER REQUIREMENTS

Improper use, maintenance, or modification of this vehicle can lead to serious injury or death.







Require proper use of your vehicle. Do not allow anyone to operate your vehicle or ride as a passenger unless they are properly instructed and you are sure they are willing to ride responsibly. To prevent unauthorized use, always remove the ignition key when the vehicle is not in use.



Any modifications or installation of non-EGIMOTORS-approved accessories could increase the risk of injury. While you may find aftermarket products similar in design and quality to EGIMOTORS accessories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. It is never appropriate to install any additional seating.

Check with the manufacturer to determine any potential effect of a modification or accessory on the safe use of your vehicle. You are responsible for injuries related to modifications to the vehicle. Modifications or accessories may:

•      Damage machine components - especially modifications that increase speed or power.

•      Make the vehicle less stable at higher speeds.

•      Add weight, reducing the amount of cargo and total weight you can carry, and raise the vehicle’s center of gravity.

•      Overload the vehicle’s electrical system capacity. Blowing a fuse may cause a loss of lights or engine power.

•      Reduce the effectiveness of occupant protection systems, including the seatbelts and the Rollover Protective Structure (ROPS).

•      Make it illegal to own or operate your vehicle. EGIMOTORS-authorized spark arresters, mufflers, and emissions control components are mandatory for ownership or operation in many areas.

•      Void your warranty.



The vehicle ROPS, when used with the seat belts and doors, provides a structure to help protect occupants. The structure will not protect occupants in all rollovers or accidents.

For more information about safety, contact an authorized dealer or visit the EGIMOTORS website at www.egimotors.it





DRIVER AND PASSENGER QUALIFICATIONS

Make sure operators are 18 or older with a valid driver’s license. Just because a teenager has a license does not mean that they will make good judgments about driving and avoid risk taking.









EGIMOTORS recommends that you supervise younger drivers. Set rules and put limits on how, when, and where they are allowed to use this vehicle. For example, young drivers may need to have an adult in the vehicle with them and not be allowed to drive with their friends in the vehicle.





Make sure all riders fit the vehicle. Be sure that the driver and all passengers are able to:

•    sit with their backs against their seat,

•    adjust the seat belt to fit properly,

•    have both feet flat on the floor, and

•    have both hands on the steering wheel or on a passenger hand hold.



Do not allow children who need child safety seats or booster seats to ride in the vehicle. The vehicle is not designed to restrain automotive child safety seats.

You are responsible for your passengers. Be sure passengers are seated properly, belted, holding the passenger hand hold, and ready to brace.

Unrestrained riders can fall out or be thrown around and from a moving vehicle.

Every person must be properly seated and belted in their own seat. Two people should never be belted into a single seat belt. People belted together can crash into one another in a collision and be seriously injured. Never carry passengers in the cargo bed as they could be thrown against or out of the vehicle or come into contact with moving parts.

Do not let people drive or ride after using alcohol or drugs.



PREPARE VEHICLE FOR THE RIDE

Before starting off, always perform the Pre-Ride Inspection. Failure to inspect and verify that the vehicle is in safe operating condition increases the risk of an accident, which can lead to serious injury or death.







ITEM	REMARK
Brake Fluid	Ensure proper level and condition
Front and rear suspension	Inspect
Steering	Ensure free operation
Tires	Inspect condition and pressure
Wheels/Lug Nuts	Inspect, ensure fastener tightness
Fuel and oil	Ensure proper levels and condition
Coolant	Ensure proper level and condition
Indicator lights/switches	Ensure proper operation
Air Filter	Inspect, replace as needed
Engine intake pre-filter	Inspect, clean
PVT intake pre-filter	Inspect, clean
Headlights	Check operation
Brake lights/taillights	Check operation
Seat Belts	Check length of belt for damage, check latches for proper operation.
Cab Doors (if equipped)	Check door handle and latches for proper operation. Cab doors must be completely closed and latched before moving vehicle.
Exhaust	Inspect spark arrester and clean if needed.
Vehicle Debris	Remove grass, leaves, and other flammable material or debris, especially near the exhaust system.



Improper tire maintenance can lead to loss of control and an accident, which could result in serious injury or death. To reduce your risk of injury:

•     Maintain EGIMOTORS recommended tire pressure. Check pressure before operating. Even if your vehicle has only been driven a short distance, the tire pressure readings can become higher.

•     Make sure tire pressures match the specifications listed in the table below.

•     Only use the size and type of tires specified for this vehicle.

•     Do not operate your vehicle with worn or damaged tires.

•     Always follow your tire manufacturer’s instructions for maintenance.





MEASUREMENT	SPECIFICATION
Maximum Cargo Box Load	372kg
Tire Pressure in Bar	Front: 0,69Bar Rear: 1,65Bar
Maximum Weight Capacity, includes weight of operator, passenger, cargo, and accessories	750 kg

PREPARE YOURSELF, PASSENGERS, AND CARGO FOR THE RIDE

Wear an approved helmet. Riding in this vehicle without wearing an approved helmet increases the risk of serious injury. For example, a helmet reduces your risk of injury from head strikes with the vehicle or other objects even if there is no crash.

Approved helmets in Europe bear the ECE22.05 (or newer) label. The ECE mark consists of a circle surrounding the letter E, followed by the distinguishing number of the country which has granted approval. The approval number and serial number will also be displayed on the label.





Use shatterproof goggles or a shatterproof helmet face shield. Such protective eyewear may reduce the risk of foreign material getting in your eyes and help prevent loss of vision. Whenever riding the Tractor, always wear googles.

EGIMOTORS recommends wearing approved Personal Protective Equipment (PPE) that have markings indicating they are designed to standards CE





Additional protective clothing and gear that may be appropriate for your riding conditions includes:

•     Always wear shoes when operating. Consider wearing sturdy over-the-ankle boots suitable for the terrain you will be riding in.

•     Full-finger gloves can protect against wind, sun, cold, and objects. Choose gloves that fit snugly and allow fingers to move freely and grip on the steering wheel or hand holds.

•     Consider long sleeves and long pants to help protect arms and legs.

•     Long-term exposure to wind and engine noise can cause permanent hearing loss. Properly worn hearing protective devices such as earplugs can help prevent hearing loss. Check local laws or the rules of the riding area you are in before wearing hearing protection to make sure its use is permitted.

Always stay completely inside the vehicle and hold the steering wheel or hand holds. Body parts outside of the vehicle can be struck by passing objects or crushed during a rollover. Do not put any part of your body outside of the vehicle for any reason. Do not hold onto the ROPS frame or put any part of your body on the door.

Riding in this vehicle without closed and latched cab doors increases the risk of serious injury or death in the event of an accident or rollover. Always make sure all cab doors are closed and latched while riding in this vehicle.

Be sure riders pay attention and plan ahead. If you think or feel the vehicle may tip or roll, reduce your risk of injury:

•      Keep a firm grip on the steering wheel or hand holds and brace yourself.

•      Do not put any part of your body outside of the vehicle for any reason.



This vehicle is not designed to carry unrestrained pets. An unrestrained pet can be thrown about and injure riders, even during normal operation. When transporting pets, use a pet crate suitable for off-road use that is secured to the vehicle.



Fuels such as gasoline can be extremely flammable. To reduce the risk of serious injury or death, never carry fuel or other flammable liquids on this vehicle. Rollovers, crashes, rough riding, or changes in elevation or temperature may lead to fuel spilling or vapor release from portable containers. Hot vehicle parts can cause fires, even after the engine has been turned off.

Never exceed vehicle weight capacities. The vehicle’s maximum weight capacity varies depending on model. The cargo box can support up to 372 kg of that total. When more rider weight is added, cargo weight may need to be eliminated to stay under the limit. Overloading the vehicle or carrying cargo improperly will cause changes in stability and handling, which could cause loss of control or an accident.

Secure cargo in the cargo box as far forward, centered and as low as possible. When cargo cannot be positioned and secured in this way, operate with extra caution. Unsecured cargo can strike and injure riders, affect vehicle handling, and result in loss of control.

The weight of riders and cargo changes vehicle braking, handling, and stability. To avoid loss of control, turn gradually, operate at slower speeds, and avoid rougher or steeper terrain.



DRIVING GUIDELINES

Drive Responsibly. This vehicle has higher ground clearance and other features to handle rugged terrain. It can be overturned in situations where some other vehicles may not. Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control, rollovers, severe injury or death. To avoid loss of control and rollovers:





•     Avoid abrupt maneuvers, sideways sliding, skidding, or fishtailing, and never do donuts.

•     Slow down before entering turn.

•     Avoid hard acceleration when turning, even from a stop.

High speed off-road operation

Driving off-road vehicles to test the limits of your skills or abilities can be very dangerous to you, passengers, and bystanders. Basic skills for driving a car, ATV, or other off-road vehicles do not equip drivers to safely attempt high speed off-road operation. Develop your skill gradually through training, practice, and experience with the various driving modes of this vehicle and the terrain in which you are operating. Always do a low speed reconnaissance run (pre-run) to become aware of anything you may encounter.

High speed off-road operation can lead to loss of control, crashes, or hard landings that can seriously injure occupants (even without rolling the vehicle or damaging it).

If you plan on using the vehicle for high speed, off-road competition, additional safety equipment may be necessary. Check the rules that apply to your competition.

Do not go over jumps — going airborne can lead to serious injury or death. Going airborne can cause loss of control, rollovers, or crashing into the ground and may damage the vehicle. Even without crashing, landings can be hard enough to cause any vehicle suspension to fully compress (e.g., bottom out).

Serious injuries, including spinal injuries, can occur even if riders are properly harnessed, wearing helmets and the vehicle is not damaged and remains upright.

You may encounter slopes, "jumps", or other terrain features that could send the vehicle airborne, depending on your speed. These may be defectively designed, poorly maintained, or not suitable for this vehicle. Slow down, use extra care, and avoid going airborne. Never take this vehicle over jumps.

Watching someone else go over a jump or go airborne does not mean you can safely do so. EGIMOTORS cannot determine whether any jump you may encounter is appropriate for this vehicle. Any jump, even a small one, could be poorly maintained, designed, or not suitable for this vehicle and may cause serious injury or death.





Plan for hills, rough terrain, ruts, and other changes in traction and terrain. Proceed slowly and with extra care on unfamiliar terrain. Avoid paved surfaces. Sudden changes in terrain such as holes, depressions, banks, softer or harder ground, or other irregularities may cause loss of control or rollover. Give yourself time to react to rocks, bumps, or holes that may be hard to see. Operating in deep snow or tall grass may make it harder to see obstacles.

If you cannot go around an obstacle, such as a fallen tree or a ditch, stop the vehicle in a safe place. Get out to inspect the area thoroughly. Look from both your approach side and exit side. If you are reasonably confident you can continue safely, choose the path that will allow you to go straight over the obstacle to minimize the vehicle tipping sideways. Go only fast enough to maintain your momentum, but still give yourself plenty of time to react to changes in conditions. If there is any question about your ability to maneuver safely over the obstacle, you should turn around if the ground is flat and you have the room, or back up until you find a less difficult path.

Abrupt application of the accelerator pedal can cause the tires to lose traction, reducing control of the vehicle and increasing the possibility of an accident, especially while on sloped terrain or while crossing obstacles such as rocks or logs.

This Tractor is approved for on-road use, limited to local road and NOT HIGHWAYS



Improperly operating on hills can cause loss of control, rollover, or accident, which can lead to serious injury or death. Use extra care when operating on hills. Plan for rough terrain, ruts, and other changes in traction and terrain.

Driving up hills

Check the terrain before ascending a hill and make sure it is not too slippery or loose. Engage all-wheel drive for hills. Drive straight uphill, keeping speed and throttle steady. Avoid steep hills which can cause the vehicle to overturn.

Recovering from stalling on a hill

If the vehicle loses forward speed, apply the brakes gradually and stop. Do not attempt to turn the vehicle around. Instead, shift to reverse and allow the vehicle to slowly roll straight downhill. Apply light brake pressure to control speed.

Overtopping a hill

Slow down when you reach the crest of a hill. Never blindly go over the crest of a hill or a drop off at high speed. An obstacle, a sharp drop, or another vehicle or person could be on the other side of the hill.

Driving down hills

Check the terrain before descending a hill and make sure it is not too slippery or loose. Engage all-wheel drive and proceed slowly, applying the brakes lightly.

Never descend a hill with the transmission in neutral or if the engine is turned off.

Avoid side hilling (riding across slopes)

If unavoidable, proceed slowly and with extra caution. Avoid obstacles and changes in terrain that could cause the vehicle to tip or slide. If it feels like the vehicle begins to tip or slide, immediately turn downhill.

Riding near wooded areas or brush

Use extra caution when operating near trees, particularly when operating on narrow trails. Tree branches or brush can be driven into the cab striking or stabbing occupants.







Riding in snow

Always keep the brake and accelerator pedals free of snow and ice. Apply the brakes frequently to prevent ice or snow accumulation on the brake pads which can reduce brake performance.

Riding on ice

Never operate the vehicle on a frozen body of water unless you have verified that the ice can support the weight of the vehicle. Severe injury or death can result if the vehicle falls through the ice.

Riding in water / Falling into water

Operating through deep or fast-flowing water can cause loss of traction, loss of control, overturning, or being swept away in water. You can be seriously injured or killed from entrapment and drowning. Never operate the vehicle in

fast-flowing water or in water that exceeds the floor level of the vehicle. Avoid sharp drop-offs and large rocks. Choose a path that provides an entrance and exit point with gradual inclines. Wet brakes may have reduced stopping ability. After leaving water, test the brakes. Apply them lightly several times while driving slowly. The friction will help dry out the pads.

Riding on sand dunes

Use extra caution when operating on or near dunes. Be alert for changes in terrain. Never blindly go over the crest of a hill or a drop-off at high speed. An obstacle, a sharp drop, or another vehicle or a person could be on the other side of the hill.

Riding in low-visibility conditions

Use extra caution and drive slowly in conditions of reduced visibility such as fog, rain, and darkness.

Plan ahead to avoid the need for evasive maneuvers, such as swerving. Hitting an obstacle — including wildlife — you are not ready for can be dangerous. Choosing to swerve instead can be even more dangerous because it can lead to loss of control, rollover, or collisions.

When operating in areas with possibility of wildlife appearing in your path, plan ahead to avoid swerving for animals if doing so could result in collisions or rollovers. Go slowly or avoid driving during seasons or times of day when animals such as deer are more likely to cross your path without warning.

Avoid Collisions With Other Vehicles

When following another vehicle or operating in the same area as others, keep a safe distance to avoid collisions. Allow extra space when sight distances are limited by dust, snow, curves, hills, or other conditions. Plan ahead to avoid having to swerve or leave the trail to avoid a collision.

On trails, be prepared to make space for other vehicles to pass. If you need to stop on a trail, move your vehicle to the edge of the path to allow others to pass safely.

Correct a skid by turning the steering wheel in the direction of the skid.

Never apply the brakes during a skid.





If the vehicle begins to slide downhill or you feel it may tip, turn downhill immediately and stop. Maneuver slowly and carefully until you can drive straight downhill.

Do not continue driving if your vehicle may be damaged or if you were in a crash or rollover.

Operating the vehicle while damaged or after a crash or rollover can cause loss of control, rollover, or accident, which can lead to serious injury or death. If you cannot safely transport the vehicle on your own, contact a recovery and towing service.

After any crash, rollover, or other accident, have a EGIMOTORS dealer inspect the vehicle for possible damage, including seat belts, ROPS, brakes, suspension, and steering systems.

Be prepared in case your vehicle becomes damaged or disabled, especially in remote areas. Consider in advance how to get help and stay safe until it arrives whenever you ride.

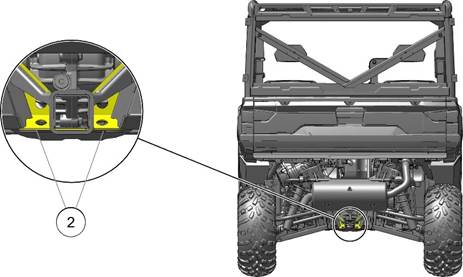

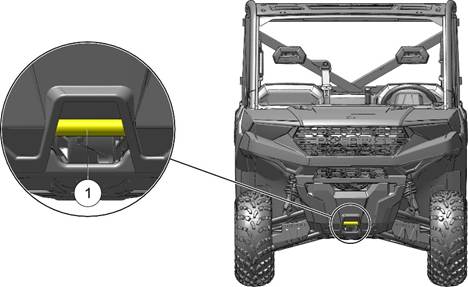

There is a recovery tow loop at the front ① and back ② of the vehicle to attach a winch or strap.

Use these loops to recover this vehicle if it is stuck, to pull it onto a tow truck, trailer, or to use this vehicle to recover another vehicle. These loops are for emergency recovery only and are not for towing vehicles to another location.

Improper recovery may lead to loss of control or vehicle damage. Only attach straps to specified locations. Do not attach to any other point on the vehicle. Only recover a vehicle of equal or lesser size and weight. When recovering a disabled vehicle, place the disabled vehicle’s transmission in neutral. Do not move a disabled EGIMOTORS vehicle faster than 16 km/h.





Operating, Idling, Or Parking Near Combustible Materials

Engine, exhaust, and other vehicle components can be very hot during and after use. Do not idle or park the vehicle over anything that could contact the exhaust system and catch on fire, such as tall grass, weeds, brush, leaves, debris, or other tall ground cover. Do not let mud, grass, or other debris accumulate on the engine or exhaust system. Inspect and remove as needed.

Vehicle rollaway can cause serious injury or death. Even when stationary, the vehicle may move whenever the gear selector is not in the PARK (P) position or when the brakes are not applied. Always shift to PARK (P) when turning off the engine or leaving the vehicle. Use extra care, when leaving the vehicle on an incline is unavoidable. If leaving the vehicle unattended on a hill, block the rear wheels on the downhill side and keep children, pets and others away from the gear selector.

Before shifting into reverse, use extra care to make sure the area is clear of people or obstacles. When it’s safe to proceed, back slowly.

After operation, inspect the vehicle for damage and debris to make sure the vehicle can be safely stored and operated again. Some things to inspect include:

•     Debris that could catch fire, such as mud/grass near the engine or exhaust system

•     Damage to the suspension, steering, or any other part of the vehicle

•     Tire condition, such as tread and sidewall damage

•     Shock absorber assembly condition

Be sure to have any issues checked and problems fixed before operating again.

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion, and eventually death. Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly, and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

•      Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.

•      Do not run engine in poorly ventilated or partially enclosed areas such as barns, garages, or carports. If you start a vehicle in one of these, drive it out and close the door as soon as possible. If you drive it into one of these, turn it off as soon as possible.

•      Do not run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors.



For more information about safety, contact an authorized EGIMOTORS  dealer or visit the EGIMOTORS web site at www.egimotors.it .





RANGER CREW 1000 TRACTOR

SAFETY LABELS AND LOCATIONS

Warning labels have been placed on the vehicle for your protection. Read and follow the instructions of the labels on the vehicle carefully. If any of the labels depicted in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle.

If any label becomes illegible or comes off, contact your EGIMOTORS dealer to purchase a replacement. Replacement safety labels are provided by EGIMOTORS at no charge. The part number is printed on the label.



GENERAL ALERT

The General Alert decal is location on the console.

 WARNING

Read your owner’s manual. Never allow anyone under 18 years of age to operate this vehicle. Never use alcohol or drugs before or while driving or riding. Do not allow operation on public roads (unless designated for off-highway vehicle access). Wear approved helmet, goggles, and protective clothing.

Always wear seat belts. Always use the cab nets or doors. Never exceed seating capacity.







CLUTCH COVER ALERT

The Clutch Cover Alert decal is located on the clutch cover

 WARNING

Read your owner’s manual. Keep body parts away from belt.

Part number: 7181427





SHIFT ALERT

The Shift Alert is located on the console.

 WARNING

To avoid transmission damage, shift only when vehicle is stationary and at idle.

APPLY BRAKE TO START.

When this vehicle is not in operation, or unattended, place shift in the park position.

Part number: 7300631





INTAKE ALERT

The Intake Alert Caution label is located on the air intake.

Part number: 7185975



 WARNING

Use a EGIMOTORS approved air filter. The use of a non-EGIMOTORS approved air filter may cause engine damage. Before installing filter ensure there is no dirt or debris in the clean side of the intake tube. The air filter must be properly seated and the hinges fully inserted when the lid is reinstalled. Please reference your owner’s manual for additional information regarding the air filter service.

Part number: 7185975





FUEL TRANSPORT WARNING

The Fuel Transport Warning label is located in the cargo box.

 WARNING

Improperly carrying fuel can lead to serious burn injuries or death.

Rollovers, crashes, rough riding, or changes in elevation or temperature may lead to fuel spills or vapor release and fire.

Never carry fuel or other flammable liquids on this vehicle.



Part number: 7301351





TIRE PRESSURE ALERT

The Tire Pressure Alert is located on the dash..

 WARNING

 Read owner's  manual.







RANGER CREW
MAXIMUM CARGO BOX LOAD	372 kg
TIRE PRESSURE IN Bar	FRONT 0,69 bar REAR 1,65 bar
MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR, PASSENGER, CARGO AND ACCESSORIES	750 kg
Read Operation and Maintenance Manual for more detailed loading information.























JACKING POINTS ALERT

The Jacking Point Alert decal is located in the cargo box.

 CAUTION

Jacking positions are located beneath the vehicle’s center points.











FEATURES AND CONTROLS

RANGER CREW 1000





COMPONENT LOCATIONS







① Console

② Headlight

③ Bumper

④ Radiator

⑤ Tailgate

⑥ Taillights

⑦ Receiver Hitch
⑧ Air Filter

⑨ ROPS Cab Frame

⑩ Cargo Box

⑪ Fuel Cap

⑫ Brake Fluid Reservoir

⑬ Fuse Block (under seat)

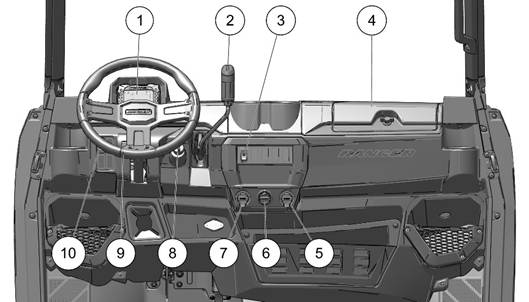

CONSOLE







① Instrument Cluster

② Gear Selector (Shifter)

③ AWD Switch

④ Storage Compartment

⑤ 12V Auxiliary Outlet
⑥ Battery Trickle-Charging Outlet

⑦ 12V Auxiliary Outlet

⑧Ignition Switch

⑨ Steering Wheel Adjustment Lever

⑩ Light Switch



STEERING WHEEL

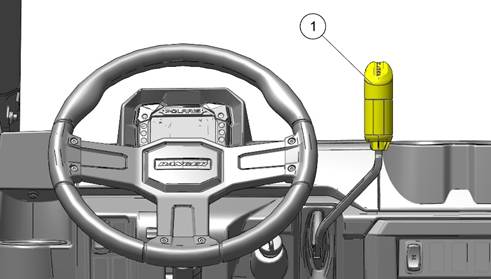

The steering wheel can be tilted upward or downward for rider preference. Lift and hold the steering wheel adjustment

Lever ①  while moving the steering wheel upward or downward. Release the lever when the steering wheel is at the desired position. Always make sure the

steering wheel position does not impede proper operation of the brake pedal, throttle pedal and all other controls.





GEAR SELECTOR







To change gears, stop the vehicle, and with the engine idling, move the lever ① to the desired gear. Do not attempt to shift gears with engine speed above idle or while the vehicle is moving.



•    H: High Gear

•    L: Low Gear

•    N: Neutral

•    R: Reverse

•    P: Park

Low gear is the primary driving range for the RANGER. High gear is intended for use on hard-packed surfaces with light loads. Whenever the vehicle is left unattended, always place the transmission in PARK.





Maintaining shift linkage adjustment is important to assure proper transmission function. Your EGIMOTORS dealer can assist in resolving any shifting problems.

Do not attempt to shift the transmission while the vehicle is moving or damage to the transmission could result. Always shift when the vehicle is stationary and the engine is at idle.



USING LOW GEAR

Low gear is the primary driving range for the RANGER. High gear is intended for use on hard-packed surfaces with light loads. Whenever the vehicle is left unattended, always place the transmission in PARK.

Always shift into low gear for any of the following conditions.

•      Operating in rough terrain or over obstacles

•      Loading the vehicle onto a trailer

•      Climbing hills

•      Towing heavy loads

•      Driving slowly - under 16 km/h

•      Operating with mud

•      Operating a CREW vehicle with more than one passenger



SWITCHES

IGNITION SWITCH

The ignition switch ①  is a three-position, key-operated switch. The key can be removed from the switch when it is in the OFF position.







Ignition Switch Label





	OFF	The engine is off. Electrical circuits are off.
	ACCESSORY   and	The engine is OFF. Power is supplied to the USB charger, 12V Auxiliary Outlets, Front Pulse Bar, CAB Harness, Rear Accessory Switch, and Ride Command Display (if equipped).
	SYSTEM ON	All lights are ON. Electrical circuits are ON. Electrical equipment can be used.
	START	Turn the key to the START position to engage the electric starter. The key returns to the ON position when released.





TURN SIGNAL LEVER

Before turning, activate a turn signal to alert others of your intentions. Check turn signal lamps before each ride.



Move the lever upward ①  to signal a right turn. The right signal lamps and indicator will flash.

Move the turn signal lever downward ② to signal a left turn. The left turn signal lamps in the taillight and below the front headlight will flash. The turn signal indicator in the gauge (or if located on the dash) will also flash.

Return the lever to the center position to end the signal.





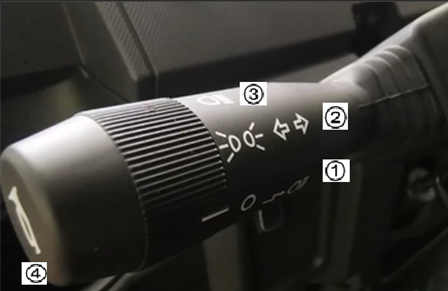

LIGHTS SWITCH

Rotate the lights switch clockwise to turn on the headlights and taillights on  (position lamp ②, headlights ③). Turn the headlight switch counter clockwise to turn the lights off ①.



① – off position

② – position lights on

③ – headlights on

④ – horn signal









HIGH BEAM/ LOW BEAM HEADLIGHTS

1.      Key ignition switch to SYSTEM ON position. To flash high beam headlight pull the headlight switch towards the driver.

2.      Key ignition switch to SYSTEM ON position. Rotate the light switch clockwise to the headlights sign ③ to turn low beams headlights. Push the headlight switch against the driver to switch from the low beam headlights to high beam headlights. Pull the headlight switch again to switch from high beam headlights to low beam headlights.

HORN SWITCH

The horn switch is located on the turn signal lever. Press the tip ④ of the turn signal lever inward to sound the horn.



HAZARD SWITCH

Push the hazard warning switch to cause all turn signal lights to flash simultaneously. Both turn signal indicators on the gauge or on console will also flash. Use this feature to alert others of an emergency or other situation requiring caution.





tp



DRIVELINE MODE SWITCH

The Driveline Mode Switch has three positions: All Wheel Drive (AWD), Differential Lock/Two Wheel Drive (2WD) and Off (Turf Mode).



① AWD: Press the top of the switch to engage All Wheel Drive (AWD).

② 2WD: Move the switch to the center position to lock the differential and operate in two wheel drive (2WD).

③ TURF Mode: Press the bottom of the switch for Turf Mode (unlocked differential power). In Turf Mode, the rear driver’s wheel operates independently. Power is only applied to one wheel. This mode of operation is well suited to turf driving or when active traction is not needed.





WINCH CONTROLS (IF EQUIPPED)

WINCH SWITCH

Press the top of the rocker switch to spool line out from the winch. Press the bottom of the rocker switch to spool line in to the winch. Move the rocker switch to the center position to stop spooling.





REMOTE WINCH SWITCH (IF EQUIPPED)

The remote winch switch is located under the hood. To power-on or

power-off the switch, press and hold the power button for 3 seconds. Press and hold the button labeled “OUT” to spool line out from the winch. Press and hold the button labeled “IN” to spool line in to the winch. The switch will automatically power-off after 30 seconds of inactivity.



AUXILIARY OUTLET

The vehicle is equipped with 12–volt accessory outlets on the dash. Use the outlets to power an auxiliary light or other optional accessories or lights. For service, the dash outlet connection is under the dash.





BATTERY TRICKLE-CHARGING OUTLET

The vehicle is equipped with a dedicated outlet for trickle-charging the battery during periods of extended inactivity.

If you do not drive the vehicle for more than TWO WEEKS, EGIMOTORS recommends using a BatteryMINDer® 2012 AGM - 2 AMP charger, which can be ordered through your dealer.

EGIMOTORS provides a charging accessory with your vehicle that allows easy connection to the battery through the Battery Trickle-Charging Outlet, located on the dash. While charging, place the charger outside of the vehicle and protect it from moisture.





FOOT PEDALS





BRAKE PEDAL

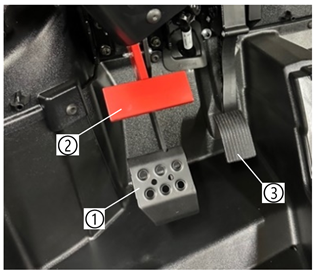

Depress the brake pedal ① to slow or stop the vehicle. Apply the brakes while starting the engine.

When the brake pedal is depressed, the brake light comes on. Check the brake light before each ride.

1.   Turn the ignition switch to the ON position.

2.   Apply the brakes. The brake light should come on after small amount of pedal travel.



SECONDARY BRAKE PEDAL

Your Tractor is Equipped with a secondary pedal ② for brake in case of failure of the standard one.



THROTTLE PEDAL

Push the throttle pedal ③ down to increase engine speed. Spring pressure returns the pedal to the rest position when released. Always check that the throttle pedal returns normally before starting the engine.

If the throttle pedal and brake pedal are applied simultaneously, engine power may be limited.





SEATING

SEAT REMOVAL

To remove the driver’s seat, lift up on the rear of the seat and rotate the seat base up and forward. Disconnect seat sensor cable under the seat. Remember to attach back seat sensor cable when installing seat back.

For the passenger seat, pull the rear edge of the seat upward to release the latch pins from the grommets. Then roll the seat forward to access the

under-seat area. To completely remove the seat, roll the seat forward and lift the seat tabs from the seat base mounts.



Failure to perform regular inspection can reduce the effectiveness of the seat belt during a crash and could result in serious injury or death.



SEAT BELT INSPECTION

Inspect all seat belts for proper operation before each use of the vehicle.

1.    Push the latch plate into the buckle until it clicks. The latch plate must slide smoothly into the buckle. A click indicates that it's securely latched.

2.    Push the red release latch in the middle of the buckle to make sure it releases freely.

3.    Pull each seat belt completely out and inspect the full length for any damage, including cuts, wear, fraying or stiffness. If any damage is found, or if the seat belt does not operate properly, have the seat belt system checked and/or replaced by an authorized dealer.

4.    To clean dirt or debris from the seat belts, sponge the straps with mild soap and water. Do not use bleach, dye or household detergents. Rinse the entire length of the belt webbing. Use a garden hose to flush out the retractor and latch housings regularly.



SEAT BELTS





This vehicle is equipped with three-point lap and diagonal seat belts for the operator and any passengers. Always make sure the seat belts are secured for all riders before operating. The driver’s seat belt is equipped with a seat belt interlock. Vehicle speed will be limited to 24 km/h if the seat belt is not secured.

Falling from a moving vehicle could result in serious injury or death. Always fasten your seat belt securely before operating or riding in the vehicle.



To wear the seat belt properly, follow this procedure:

1.      For 3-point belts, pull the seat belt latch ① downward and across your chest toward the buckle at the inner edge of the seat. The belt should fit snugly across your hips and diagonally across your chest. Make sure the belt is not twisted.

2.     Push the latch plate ① into the buckle ② until it clicks.

3.     Release the strap, it will self-tighten.

4.     To release the seat belt, press the square red button in the buckle’s center.



SEAT AND STORAGE COMPARTMENTS

The electrical compartment is located under the center rear-most seat. Never use this area for storage. Storage compartments are located under all other seats. Remove the storage bin under the right rear-most passenger seat to access the battery.

Always make sure all seats are properly installed before operating. Push down firmly on the rear of each seat until the latch pins are fully seated into the grommets.

DRIVER’S SEAT

To access the storage area under the driver’s seat, reach behind the driver’s seat and pull up on the latch. Roll the bottom of the seat forward toward steering wheel.

PASSENGER’S SEAT

To access the storage area under the passenger seat, pull the rear edge of the seat upward to release the latch pins from the grommets. Roll the seat forward to access the under-seat area. To completely remove the seat, roll the seat forward and lift the seat tabs from the seat base mounts.



ELECTRONIC POWER STEERING (IF EQUIPPED)

Electronic power steering (EPS) engages when the ignition key is turned to the ON position. EPS remains engaged whether the vehicle is moving or idle. To conserve battery power, the EPS will shut down 5 minutes after the engine is stopped if the key remains in the ON position. If the light remains on after starting the engine, the EPS system is inoperative. See your EGIMOTORS dealer, or other qualified person, as soon as possible for repair. Continued operation could result in permanent damage to the EPS unit and increased steering effort.



FUEL CAP

The fuel tank filler cap ① is located on the left-hand side of the vehicle near the driver’s seat. To close, tighten the fuel cap until it clicks twice. When refueling, always use

unleaded gasoline with a minimum pump octane number of 87 R+M/2 octane. Do not use fuel with ethanol content greater than 10 percent, such as E-85 fuel.





Always ensure that the fuel tank filler cap is fully tightened and secure before operating or transporting the vehicle.

Tractor Model: 91 RON E5 and E10 Compatible





CAB NETS (IF EQUIPPED)

Riding in this vehicle without using the cab nets (or doors, if equipped) increases the risk of serious injury or death in the event of an accident or rollover. Cab nets (or doors) must be used by both operator and passengers at all times. Make sure all latches are secure before operating the vehicle

Always inspect cab nets and latches for tightness, wear and damage before each use of the vehicle. Use the strap adjusters to tighten any loose straps. Promptly replace worn or damaged cab nets and latches with new cab nets and latches. Your EGIMOTORS dealer or qualified technician can assist.



SECURING THE NET

1.    Connect the latch at the top edge of the net to the receiver latch mounted on the front frame.



OPENING THE NET

1.    To exit the vehicle, release the top front latch.

2.    Allow the net to hang freely outside the vehicle while dismounting.



ROLLOVER PROTECTIVE STRUCTURE (ROPS)

The Rollover Protective Structure (ROPS) on this vehicle meets OSHA® 1928.53 rollover performance requirements. Always have your authorized dealer thoroughly inspect the ROPS if it ever becomes damaged in any way.

No device can assure occupant protection in the event of a rollover. Always follow all safe operating practices outlined in this manual to avoid vehicle rollover.

Vehicle rollover could cause severe injury or death. Always avoid operating in a manner that could result in vehicle rollover.



HOOD LATCHES

To remove the hood, rotate the hood latches ① 1/4-turn and lift the hood away from the vehicle.





TRAILER HITCH

This vehicle is equipped with a receiver hitch bracket for a trailer hitch and trailer towing equipment.

To avoid injury and property damage, always heed the warnings and towing capacities outlined in the specification table.

Whenever the vehicle is towing, always stay clear of the area between the vehicle and the towed object. Failure to do so may result in serious injury or death.

After 1000 km of use, tighten the bolt holding the trailer ball to the hitch to 445 N⋅m.





REAR HITCH



Use the rear hitch for towing a trailer. See the Hauling Cargo section for details and procedures.

The values given below pertain to factory-installed hitches and are provided for informational purposes only.

Strictly follow the instructions outlined in the operator’s manual of the mounted or trailed machinery or trailer, and not to operate the combination tractor — machine or tractor — trailer unless all instructions have been followed.

For vehicle-specific trailering values, see the Specifications chapter. The vehicle-specific values take precedent if they are lower than the component values shown below.





REAR HITCH COMPONENT SPECIFICATIONS
Maximum Vertical Load(s)	150 kg
Maximum Dynamic Force (D)	23,0 kN
Approval #	E11 55R-0110609



REAR HITCH CERTIFICATION LABEL

The hitch certification label is located on the hitch bar.







HITCH REMOVAL / INSTALLATION

1.      To remove the hitch (if equipped), remove the cotter pin ① and hitch pin w. Remove the hitch, then reinstall the hitch pin w and secure the cotter pin ①.

2.      To install the hitch, remove the cotter pin ① from the hitch pin and remove the hitch pin ②.

3.     Install the hitch to the receiver.

4.      Reinstall the hitch pin (from the left side of the hitch) through the bore of both the receiver and the hitch.

5.      Reinstall the cotter pin. Make sure the hitch assembly is secure at that the cotter pin is properly engaged over the hitch pin.

Note: above pictures might vary from hitch variant installed on your vehicle





7-WAY TRAILER CONNECTOR

The 7-way trailer connector  installed on your vehicle ① meets the requirements of European standard ISO 1724.

This connector uses all 7 pins on newer model trailers. An older model trailer may not be compatible with this connector.



Improper electrical wiring changes can result in damage to both vehicle and trailer components. When in doubt about your trailer connection, please contact a qualified towbar specialist for assistance.





INSTRUMENT CLUSTER

Features and telltales vary by model.



OVERVIEW

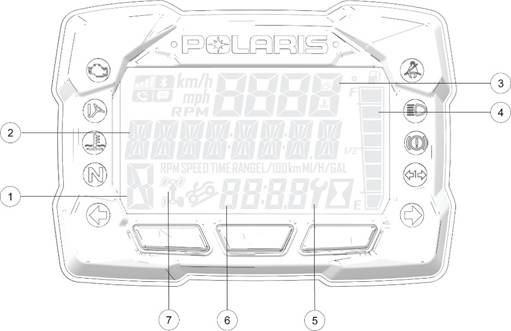

DISPLAY AREA	FUNCTION
① Gear Indicator	H = High Gear L = Low Gear N = Neutral R = Reverse Gear P = Park – = Gear Signal Error (or shifter between gears)
②Display Area 2	This area displays odometer, trip meter, trip meter 2, voltage, engine temperature, engine hour meter, programmable service hour interval, ground speed, or engine RPM.

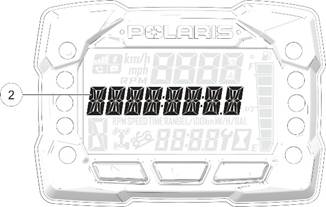

③ Display Area 1	This area displays engine RPM, ground speed, or coolant temperature.
④ Fuel Gauge	The segments of the fuel gauge show the level of fuel in the fuel tank. When the last segment clears, a low fuel warning is activated. All segments including the fuel icon will flash. Refuel immediately.
⑤ Service Indicator		A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your EGIMOTORS dealer can provide scheduled maintenance.
⑥ Clock		The clock displays time in a 12-hour or 24-hour format.
⑦ Driveline Mode Indicator		Segments of the indicator illuminate based on driveline mode engaged.

INDICATOR LAMPS

INDICATOR	ICON	FUNCTION
Check Engine		This indicator appears if a fault occurs. Do not operate the vehicle if this warning appears. Serious engine damage could result. Your authorized EGIMOTORS dealer can assist.
EPS Warning (if equipped)		This indicator illuminates when a fault has occurred in the EPS system. Your authorized EGIMOTORS dealer can assist. EPS operation is possible with key on/engine off for up to 5 minutes.
Engine Hot		This lamp illuminates to indicate an overheated engine. If the indicator flashes, a severe overheating condition exists.
Neutral		This lamp illuminates when the transmission is in neutral and the ignition key is in the ON position.
Helmet/Seat Belt		This lamp flashes for several seconds when the key is turned to the ON position. The lamp is a reminder to wear helmet and seat belt (if equipped) before operating. Vehicle will be limited to 24 km/h if seat belt is not secured.
High Beam		This lamp illuminates when the headlamp switch is set to high beam.
Brake Failure (if equipped)		Lamp illuminates when Brake System (if Brake Failure Alarm is equipped) detects low fluid level in brake hydraulic system. Verify brake fluid in reservoir. Note: this light is separate light added on console.
Turn Signals (if equipped)		One arrow flashes when the corresponding turn signal is activated. Both arrows flash when the hazard signal is activated. If there is a problem in the signal system, the lamps will flash at twice the normal rate.
Operator presence		Lamp illuminates when driver is not detected on the seat, in additional an acoustic signal is present. Note: It is located on the main dash.



DISPLAY AREA 1





Pressing the MODE button will change the information displayed in Area ①.



DISPLAY AREA 1	FUNCTION
Speed	The vehicle’s speed will be displayed in mph, or km/h.
Engine Temperature	The vehicle’s current engine temperature will be displayed.
RPM	The vehicle’s RPM will be displayed.



DISPLAY AREA 2

Toggle the Up/Down buttons to change the information displayed in Area ②.







DISPLAY AREA 2	FUNCTION
Odometer	The vehicle’s odometer reading will be displayed.
Engine Temperature	The vehicle Engine Temperature will be displayed.
Trip 1	The vehicle Trip 1 mileage will be displayed.
Trip 2	The vehicle Trip 2 mileage will be displayed.
RPM	The vehicle RPM will be displayed.
Voltage	The vehicle’s current battery voltage will be displayed.
Speed	The vehicle’s current speed will be displayed.
Engine Hours	The vehicle’s engine hours will be displayed.
Service Hours	The vehicle’s service hours will be displayed.



OPTIONS MENU

From the options menu you can view diagnostic codes, access the advanced menu, set the clock, and much more. For a full list of available options see below.

To enter the Options Menu, press and hold the MODE button.





OPTIONS MENU	NOTES
Diagnostic Codes	Only displays if fault codes are present or stored
Advanced Menu (if equipped)	Set maximum speed, and geofencing settings.
Units - Distance	Select MPH or KPH
Units - Temp	Select between °F and °C

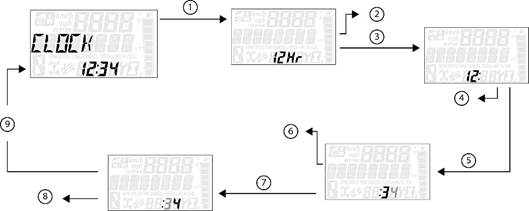

Clock (if equipped)	Select between 12H or 24H, and set time
Backlight Color	Select between Blue or Red
Backlight Level	Set backlight brightness level
Service Hours	View/Set Service hours
Exit Menu	Exit

DIAGNOSTIC CODE

Diagnostic Code Screen will show available MIL that has come on during that ignition cycle.

To access the Diagnostic Code Screen, do the following:

1.      Press and hold the MODE button to enter the Options Menu. “OPTIONS” will display on the screen for 3 seconds before showing first menu item.







2.      Select “Diagnostic Codes” from the Options Menu by pressing the MODE button.

Toggle the Up/Down Buttons to cycle through Code(s).

This option will only be available if a fault code was set or is active during the current ignition key 'on' cycle. Turning off the ignition will clear any save fault codes from the gauge.

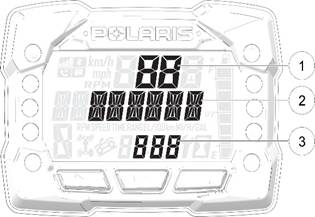

① Display area 1 will show FMI ② Display area 2 will show SPN ③ Clock Area will show Count.









When the gauge is displaying a fault code, the warning telltale (check engine or EPS) will blink to indicate which controller set the fault code.



3.    To exit the Options Menu the user can select Exit Menu function from Options Menu, can hold Mode Button and exit out of Options Menu, or not press any button for 10 seconds, which will exit out of the Options Menu.



DIAGNOSTIC DISPLAY CODE DEFINITIONS

Not all diagnostic codes may be applicable to your vehicle.

Open Load:There is a break in the wires that lead to the item listed in the chart (injector, fuel pump, etc.), or the item has failed.

Short-to-Ground:The wire is shorted to ground between the electronic control unit and the item listed in the chart.

Shorted Load:The wires leading to the item listed in the chart are shorted together, or the item has shorted internally.

Short-to-Battery:The wire leading from the item listed in the chart to the electronic control unit is shorted to a wire at battery voltage.





DIAGNOSTIC CODES
COMPONENT	CONDITION	SPN	FMI
Throttle Position Sensor	Voltage Too High	51	3
	Voltage Too Low	51	4
Engine Temperature Sensor	Voltage Too High	110	3
	Voltage Too Low	110	4
	Temperature Too High	110	16
	Engine Overheat Shutdown	110	0
Intake Air Temperature Sensor	Voltage Too High	105	3
	Voltage Too Low	105	4
Manifold Absolute Pressure Sensor	Voltage Too High	102	3
	Voltage Too Low	102	4
	Signal Out of Range	102	2
Crankshaft Position Sensor	Circuit Fault	636	8
	Plausibility Fault	636	2
Vehicle Speed Signal	Speed Too High	84	8
	Plausibility Fault	84	2
Gear Sensor Signal	Voltage Too Low	523	4
